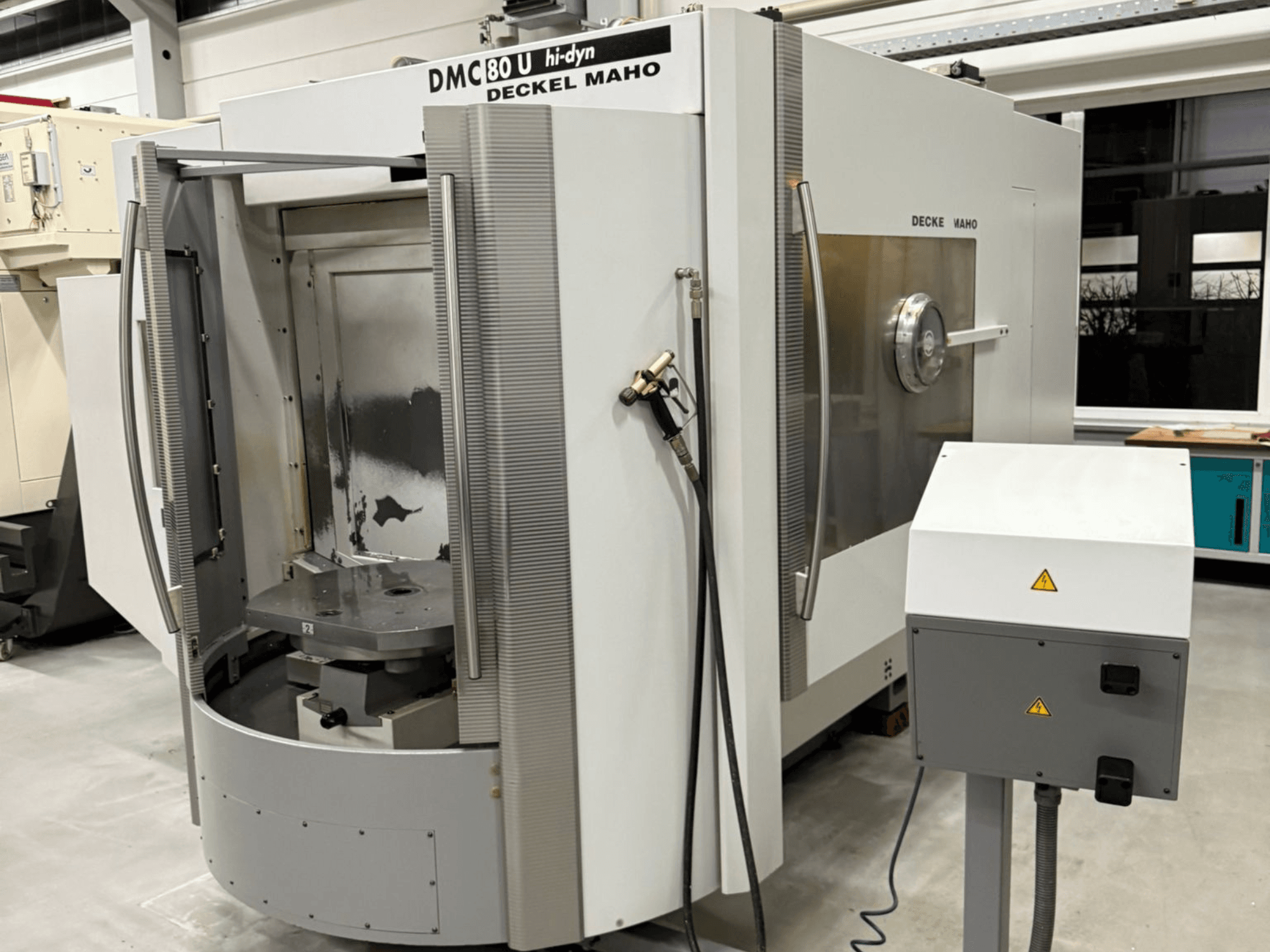

This 5-axis DECKEL MAHO DMC 80 U hi-dyn was manufactured in 2001. It features a rotary speed of up to 12,000 rpm, a B-axis automatic swivel milling head, and a C-axis NC rotary table measuring 900 x 630 mm. The machine includes a 60-position tool magazine, Heidenhain control system, dual pallet changer, and an internal coolant supply at 40 bar. Consider the opportunity to buy this DECKEL MAHO DMC 80 U hi-dyn universal machining centre. Contact us for more information.
Overview
- brand: DECKEL MAHO
- year: 2001
- MODEL: DMC 80 U hi-dyn
- production hours: 16799
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMC 80 U hi-dyn
Control Unit
- Control Brand: HEIDENHAIN
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
B-axis automatic swivel milling head
C-axis NC rotary table: 900 x 630 mm
Tool magazine: 60 positions
Heidenhain control system
Additional equipment
Dual pallet changer
Coolant temperature control system
Chip conveyor
Internal coolant supply 40 bar
Paper belt filter
Rotating viewing window
Cleaning gun
Oil and emulsion mist separator
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
