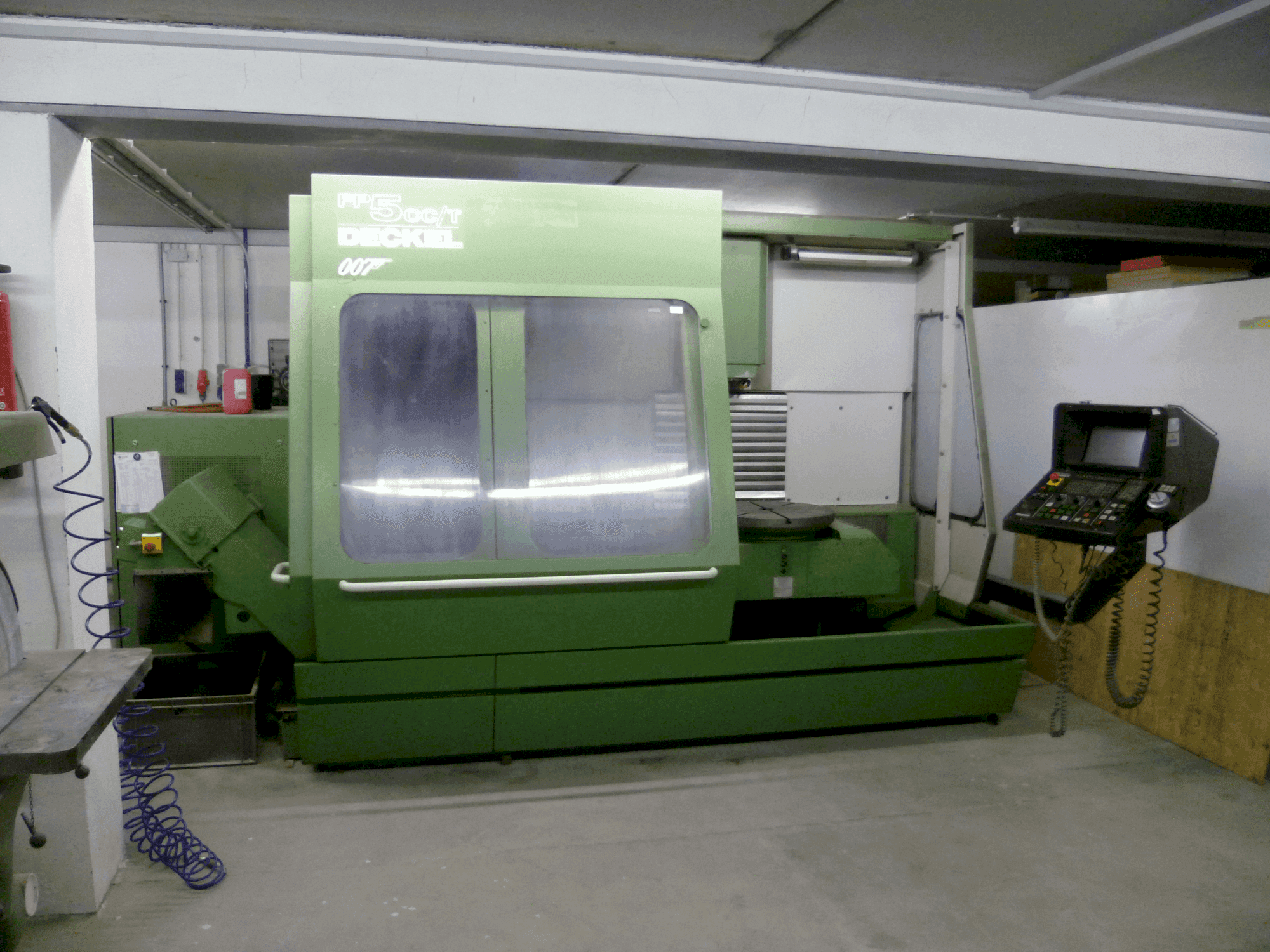

Front view of DECKEL FP5CCT  machine

DECKEL - FP5CCTDE-MIL-DEC-1992-00001

Rs. 6,614,000
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis DECKEL FP5CCT vertical machining center was manufactured in 1992. It features a spindle motor with 12 kW power and speeds up to 6300 min-1. The universal table has a 630mm diameter and tilts 15 degrees downwards and 45 degrees upwards. The C-axis offers full 360-degree rotation. Ideal for complex machining tasks, the DECKEL FP5CCT machine we have for sale can handle a table load of up to 300 kg. Contact us for further details.

Overview

  • brand: DECKEL
  • year: 1992
  • MODEL: FP5CCT
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - DECKEL FP5CCT

General Data

  • Machine weight: 5750 KG

Main drive

  • Spindle speed range: 6300 1/MIN
  • Spindle motor power: 12 kw
  • Tool taper: SK40
  • Number of axis: 5

Movement

  • X-AXIS Movement: 700 mm
  • Y-AXIS Movement: 600 mm
  • Z-AXIS Movement: 550 mm
  • AXIS 1 Movement: 360 °

Table

  • Table load: 300 kg

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Electric handwheel
    • - Normal coolant system

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Universal table diameter: 630 mm
        • - Tilting range: 15 degrees downwards, 45 degrees upwards
        • - Geometry and function overhauled, universal table with tilting range, c-axis 360 degrees
        • - Feed: 0-10000 mm/min
      • Qualitative Machine Benefits:
        • - Painted in ral green (cover green)

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
