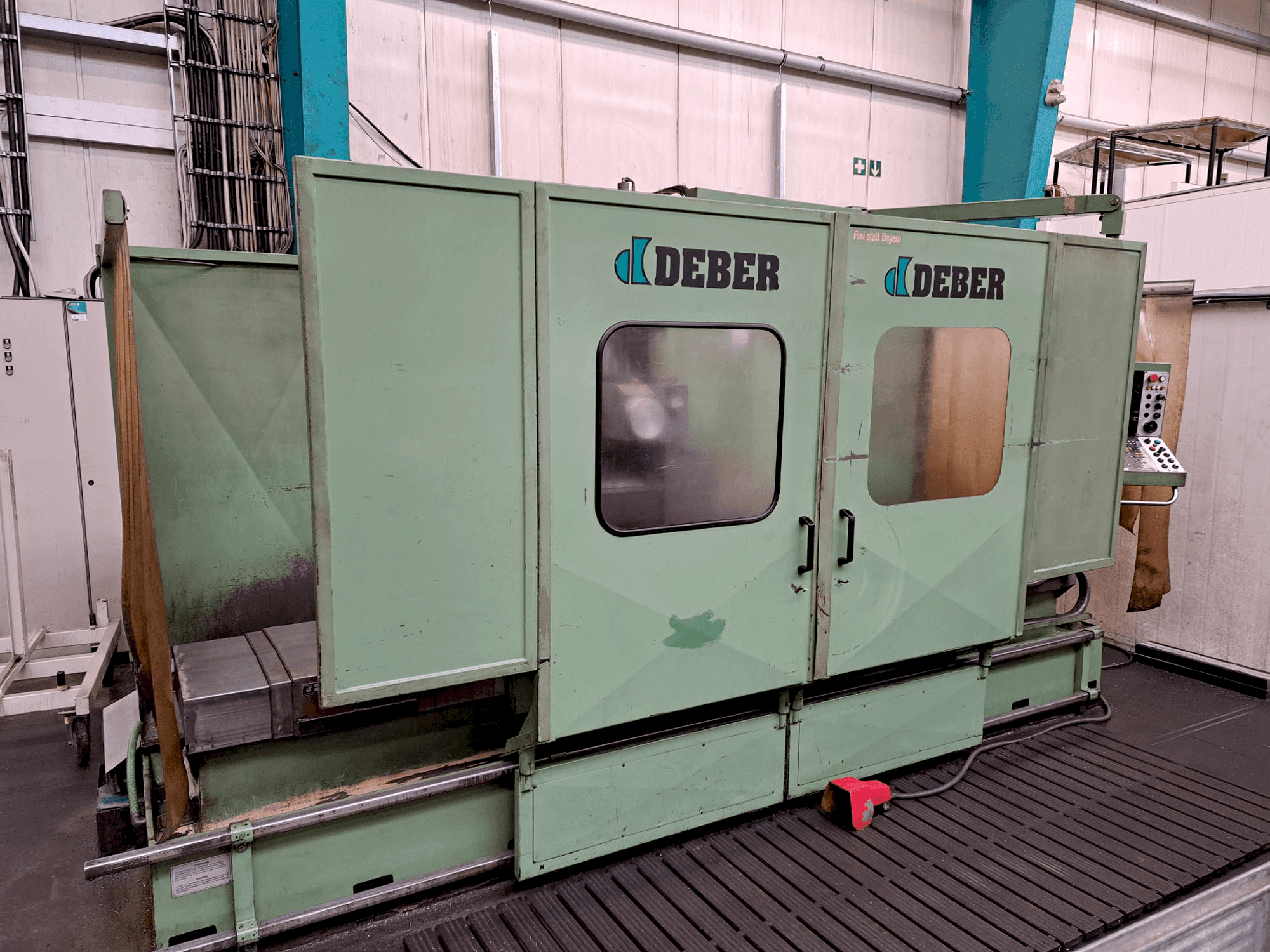

Front view of DEBER Dinamyc 2  machine

DEBER - DYNAMIC 2DE-MIL-DEB-1996-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Deber Dynamic 2 Milling machine was manufactured in the year 1996 in Italy. It is equipped with a HEIDENHAIN 3D TNC 415B control unit and has 3 axes + milling head vertical + horizontal. The machine has a spindle speed of 3000 rpm.

Overview

  • brand: DEBER
  • year: 1996
  • MODEL: DYNAMIC 2
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: Heidenhain 3D

Technical Information - DEBER DYNAMIC 2

General Data

  • Measurements width: 5600 mm
  • Measurements depth: 4580 mm
  • Measurements height: 2570 mm
  • Machine weight: 9600 kg

Control Unit

  • Brand: Heidenhain 3D
  • Model: TNC 415B

Main drive

  • Number of spindles: 2
  • Spindle speed range: 3000 1/MIN
  • Spindle motor power: 14 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1800 mm
  • Y-AXIS Movement: 800 mm
  • Z-AXIS Movement: 1000 mm

Workpiece

  • Workpiece weight: 4000 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Milling head:ferret iso 50cosma tvub 5l
      • - Clamping surface: 2200 x 630 mm
      • - 3 axes + milling head vertical + horizontal

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
