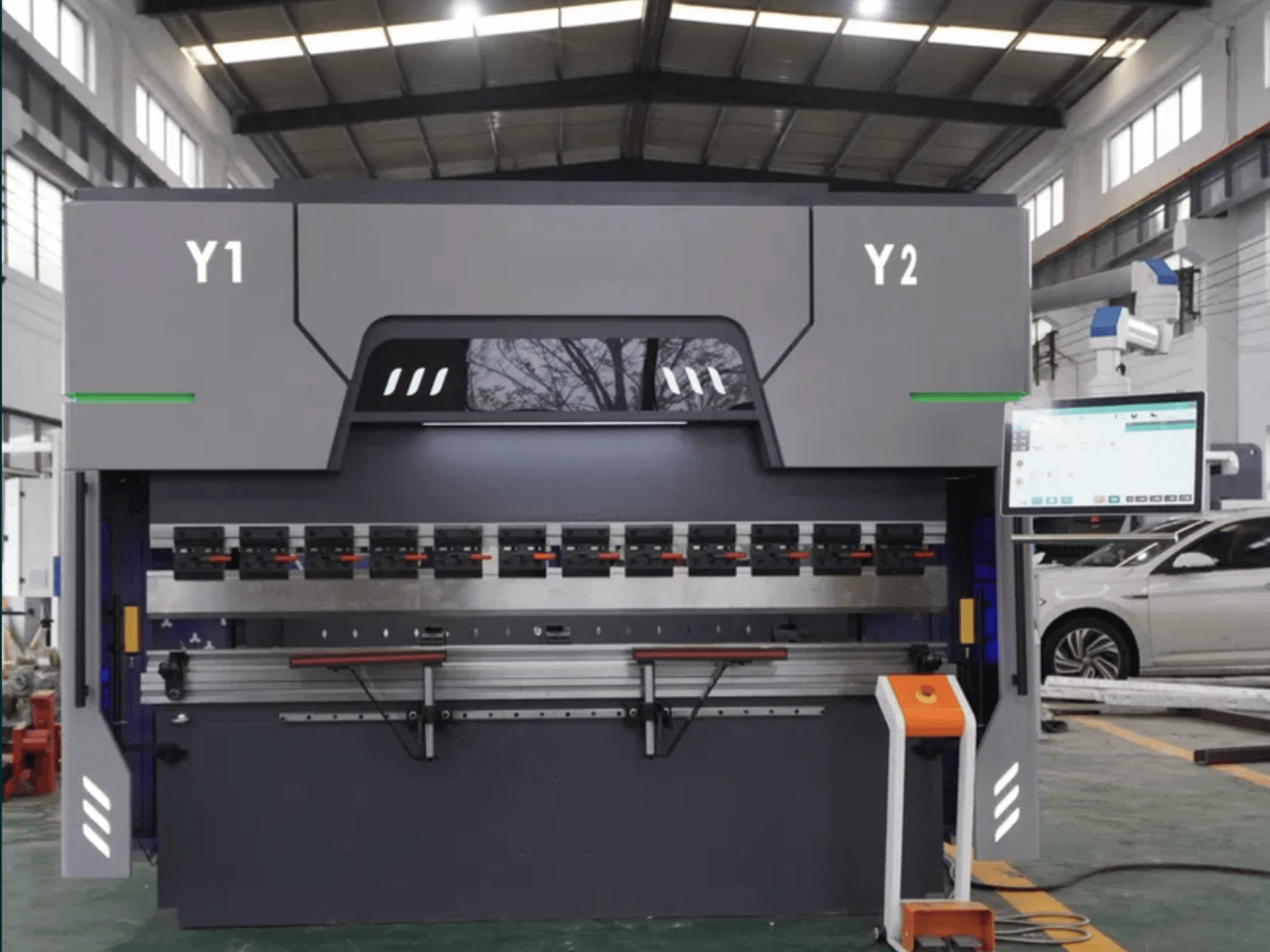

DAMAMT - WC67K 63T/2500 CNC BG-BEN-DAM-2024-00001

• Inspection possible: Yes, in Bulgaria

• CNC control

  • Control system: E-Touch ET18 (E-Touch 18)

  • Programming: 2D graphical programming, CAD import, offline programming

  • Remote assistance: Yes

  • Automatic bending-process calculation: Yes

  • CNC axes: 4+1 (Y1, Y2, X, R + V motorized crowning)

• Main technical specifications

  • Distance between columns: 1,980 mm

  • Throat depth: 300 mm

  • Ram stroke: 160 mm

  • Maximum open height: 370 mm

  • Repositioning accuracy: ±0.05 mm

  • Fast approach speed: 200 mm/s

  • Bending speed: 10 mm/s

  • Return speed: 180 mm/s

  • Main motor power: 7.5 kW

• Axes / backgauge

  • Y1/Y2: Fully synchronized

  • X-axis: CNC controlled

  • R-axis: CNC controlled

  • V-axis: CNC motorized crowning

  • Backgauge: Servo controlled

• Main components

  • Hydraulic system: Bosch Rexroth

  • Main motor: Siemens

  • Electrical components: Schneider Electric

  • Ball screws / linear guides: HIWIN

  • Linear scales: GIVI (Italy)

  • Tubing / connectors: EMB (Germany)

  • Sealing rings: NOK (Japan)

  • Hydraulic pump: Sunny (USA)

• Safety and compliance

  • Motor overload protection

  • Electrical leakage protection

  • CE safety standard

Additional equipment

• 1 set upper punch (heat-treated 42CrMo)

• 1 multi-V lower die (heat-treated 42CrMo)

• Quick-release upper tool clamps

• 2 front support arms

• Foot pedal with emergency stop

• Safety fence
