Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DAH LIH - PT128IE-MIL-DAH-2007-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DAH LIH PT128 Universal machining center

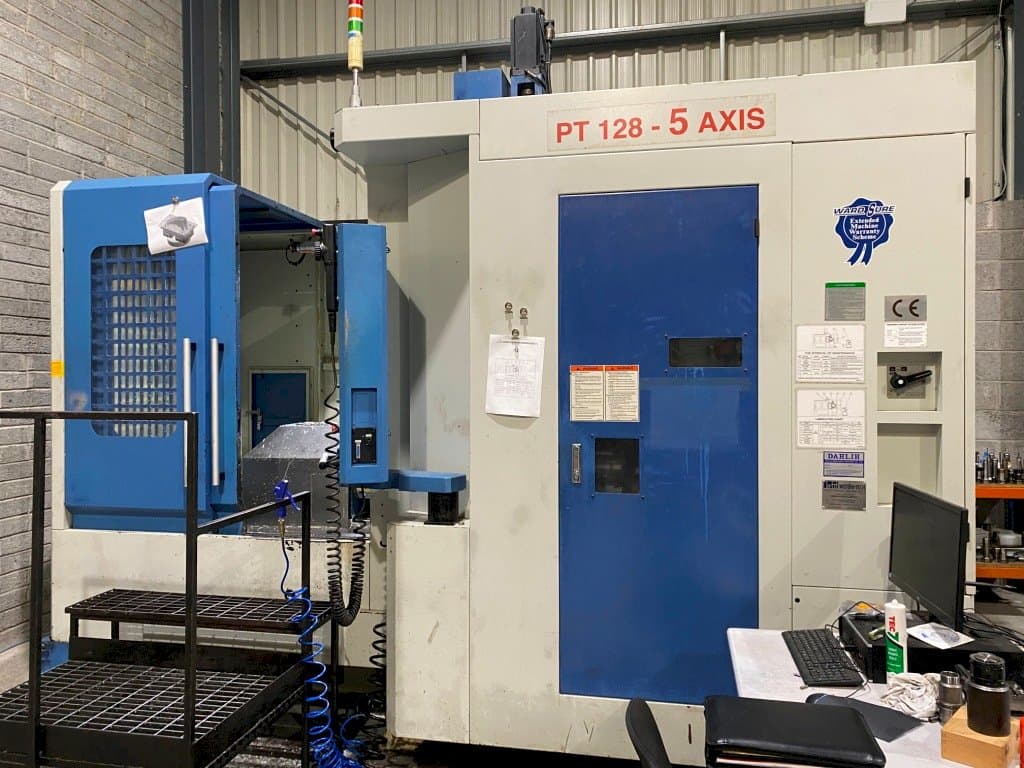

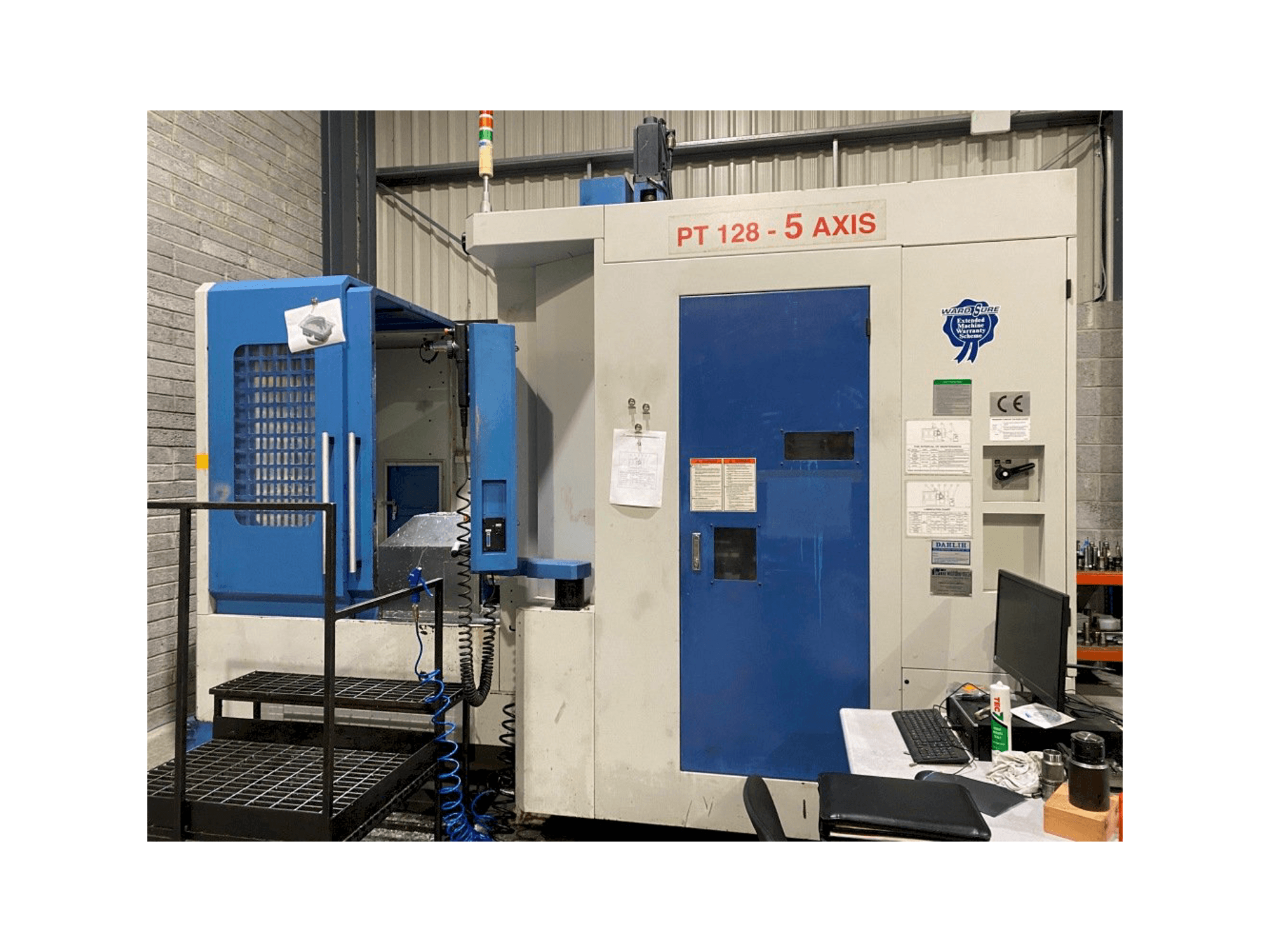

This DAH LIH PT128 Universal machining center was built in Taiwan in 2007. It is operated through a Heidenhain TNC 530 control unit. This 5 axis machine has a spindle speed up to 20000 rpm. Includes a selection of tool holders, MPG and a spindle chiller. It is in very good condition.
Overview
- brand: DAH LIH
- year: 2007
- MODEL: PT128
- application type: Milling
- Location: Ireland
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DAH LIH PT128
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 530
Dimensions
- Machine Depth: 2935 mm
- Machine Height: 3500 mm
- Machine Weight: 13500 kg
- Table Length: 1350 mm
- Table Width: 800 mm
Movement
- A-axis Max: 110°
- A-axis Min: -110°
- C-axis: 360°
- Number of Axes: 5
- X-axis Travel: 1200 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Number of Tools: 40
- Spindle Speed: 20000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Selection of Tool Holders
- MPG
- Spindle Chiller
Machine Benefits
Qualitative Machine Benefits
- Machine in very good condition
Technical Machine Benefits
- Simultaneous axis operation
- 40 place atc
- X,y,z coolant through ballscrews
- X,y,z linear guide ways
- X,y,z linear scales
Machine History
Industries
Pump industry
End product
Pump parts
Material type
Mild steel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
