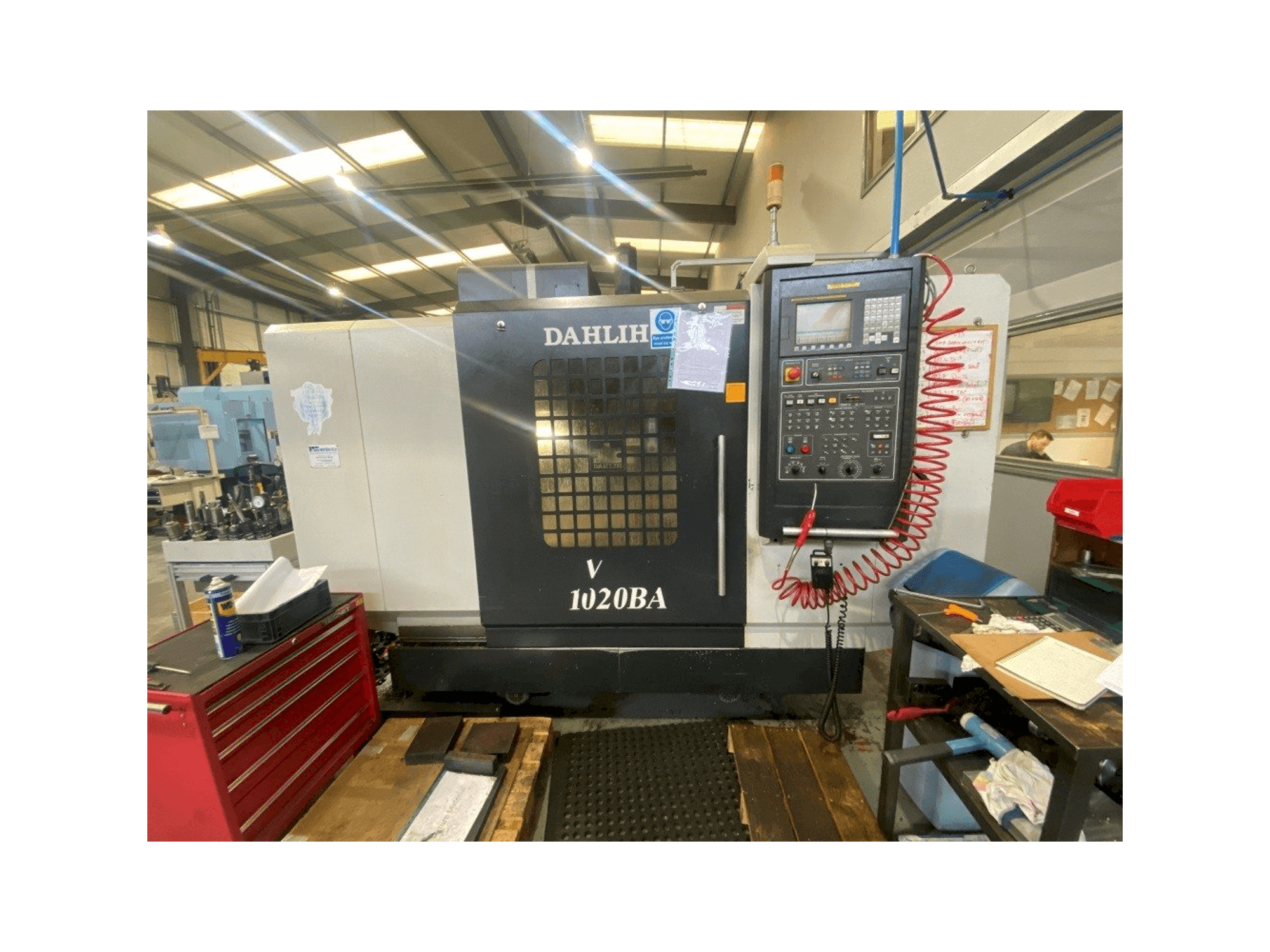

Front view of DAH LIH MCV 1020 BA  machine

DAH LIH MCV 1020 BA

DAH LIH - MCV 1020 BA

2007

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

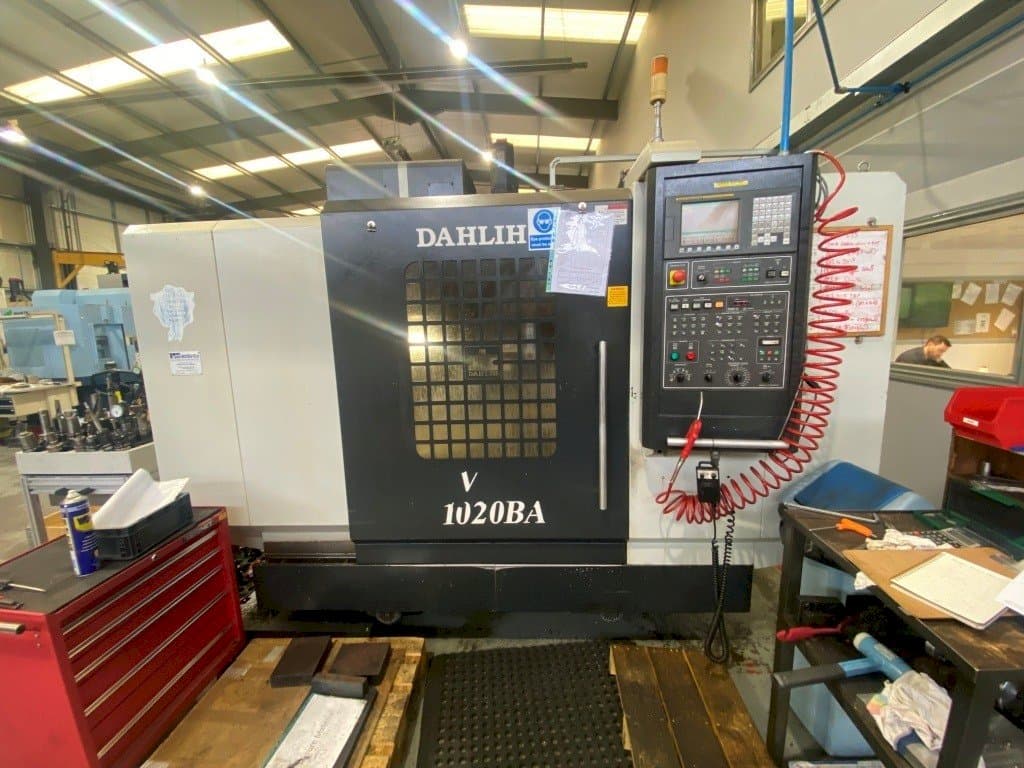

This Dah Lih MCV 1020 BA Vertical Machining center was manufactured in the year 2007 in Taiwan. It is equipped with a Fanuc Oi-MC control unit and has 4 axis. The machine has a spindle speed of 8000 rpm, is in very good condition and well maintained.

Overview

  • brand: DAH LIH
  • year: 2007
  • MODEL: MCV 1020 BA
  • application type: Milling
  • Location: Ireland
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Fanuc
  • GINDUMAC ID: IE-MIL-DAH-2007-00002

Technical Information

General Data

  • Measurements width: 3260 mm
  • Measurements depth: 3060 mm
  • Measurements height: 2665 mm
  • Machine weight: 6010 kg

Control Unit

  • Brand: Fanuc
  • Model: Oi-MC
  • CNC main language: English

Main drive

  • Number of spindles: 1
  • Spindle speed range: 8000 1/MIN

Movement

  • X-AXIS Movement: 1020 mm
  • Y-AXIS Movement: 550 mm
  • Z-AXIS Movement: 560 mm
  • A-AXIS Movement: 360 mm

Table

  • Outer length: 1300 mm
  • Outer width: 660 mm
  • TSlots size: 5

Tools

  • Slots in storage: 24
  • Max weight: 7 kg
  • Max tool diameter: 127 mm
  • Max tool length: 300 mm
  • Type of tool holder: BT 40

Media

  • Main electronic connection: 380 V

    Additional equipment

    • - 4th Axis with Chuck

    Additional Information

      Machine history

      • Industries: Sub contract machining

      Machine Benefits

      • Qualitative Machine Benefits:
        • - Very good condition

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
