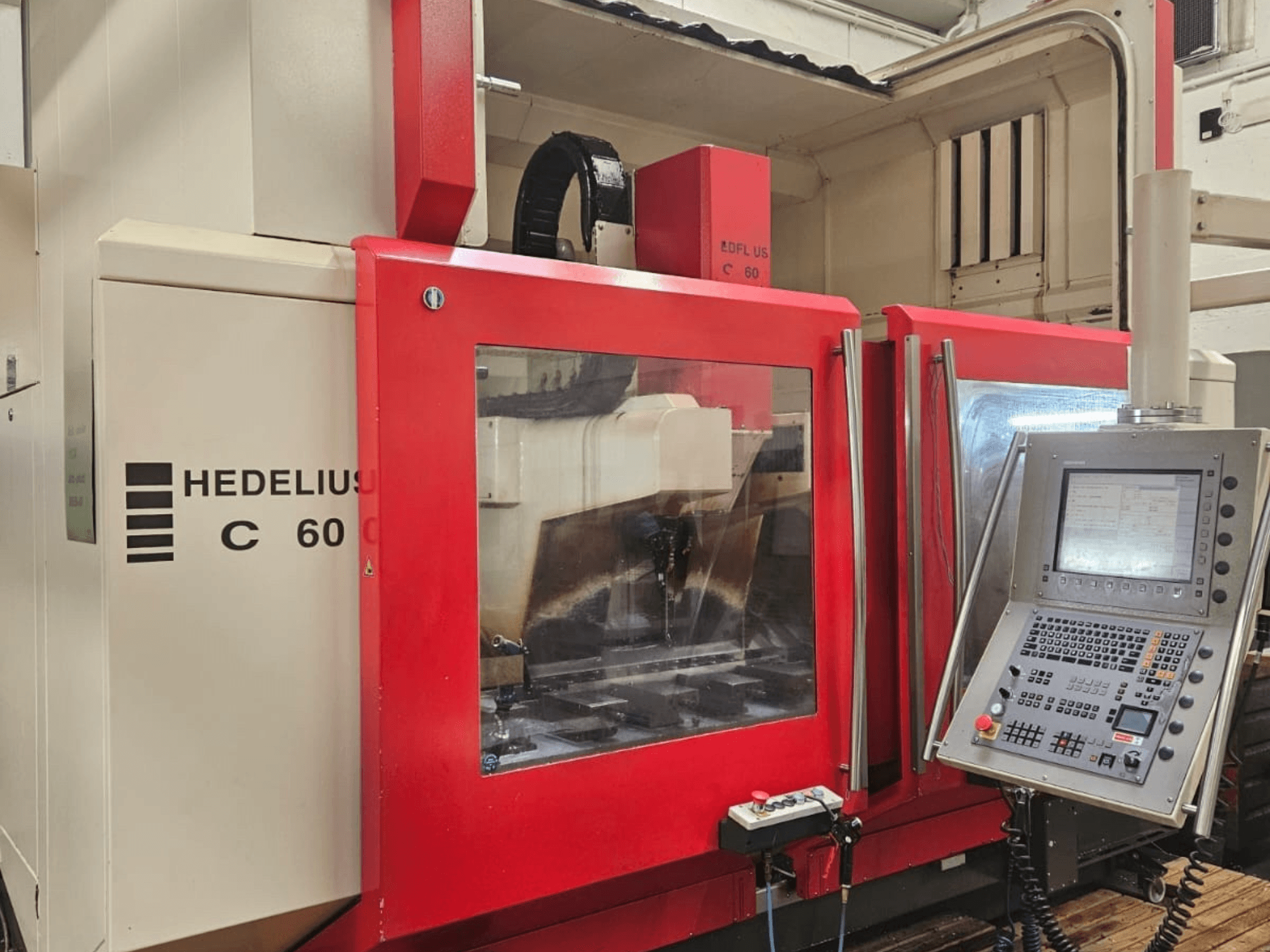

HEDELIUS - C60 - 2000DE-MIL-HED-2007-00002

• Pendulum operation area: 2 × 775 × 620 mm

• Main spindle torque: 165 Nm (optional 198 Nm)

• Tool holder: HSK A63

• Max tool length: 330 mm

• Max tool diameter: 80 mm

• Tool change time: approx. 3.0 s

• Chip-to-chip time: approx. 6.0 s

• Table: cast iron machine table with 5 T-slots DIN 650-18

• Coolant system: central coolant through spindle

  • Coolant tank capacity: 780 liters

  • Filter grade: 25 µm

  • Filter capacity: 130 l/min

  • Pump A: 20 bar / 30 l/min

  • Pump B: 2.5 bar / 150 l/min

• Electrical connection: 3 × 400 V, 50 Hz

• Total connected load: 20 kVA

• Compressed air requirement: minimum 7 bar

• Weight: 10500 kg

• Machine enclosure: full enclosure with electric roller door

• Positioning system: glass scales on X/Y/Z axes

• Drive system: digital AC servo motors with ball screws

• Programming: Heidenhain plain text and DIN/ISO

Additional equipment

• Chip conveyor: scraper belt type, discharge height approx. 1150 mm

• Extraction system: MultiAir exhaust filter, 1200 m³/h

• 3D probe: Renishaw RMP 60

  • Repeatability: ±2 µm

  • Probe stylus length: 50 mm

  • Probe ball diameter: 6 mm

• Vises (optional)
