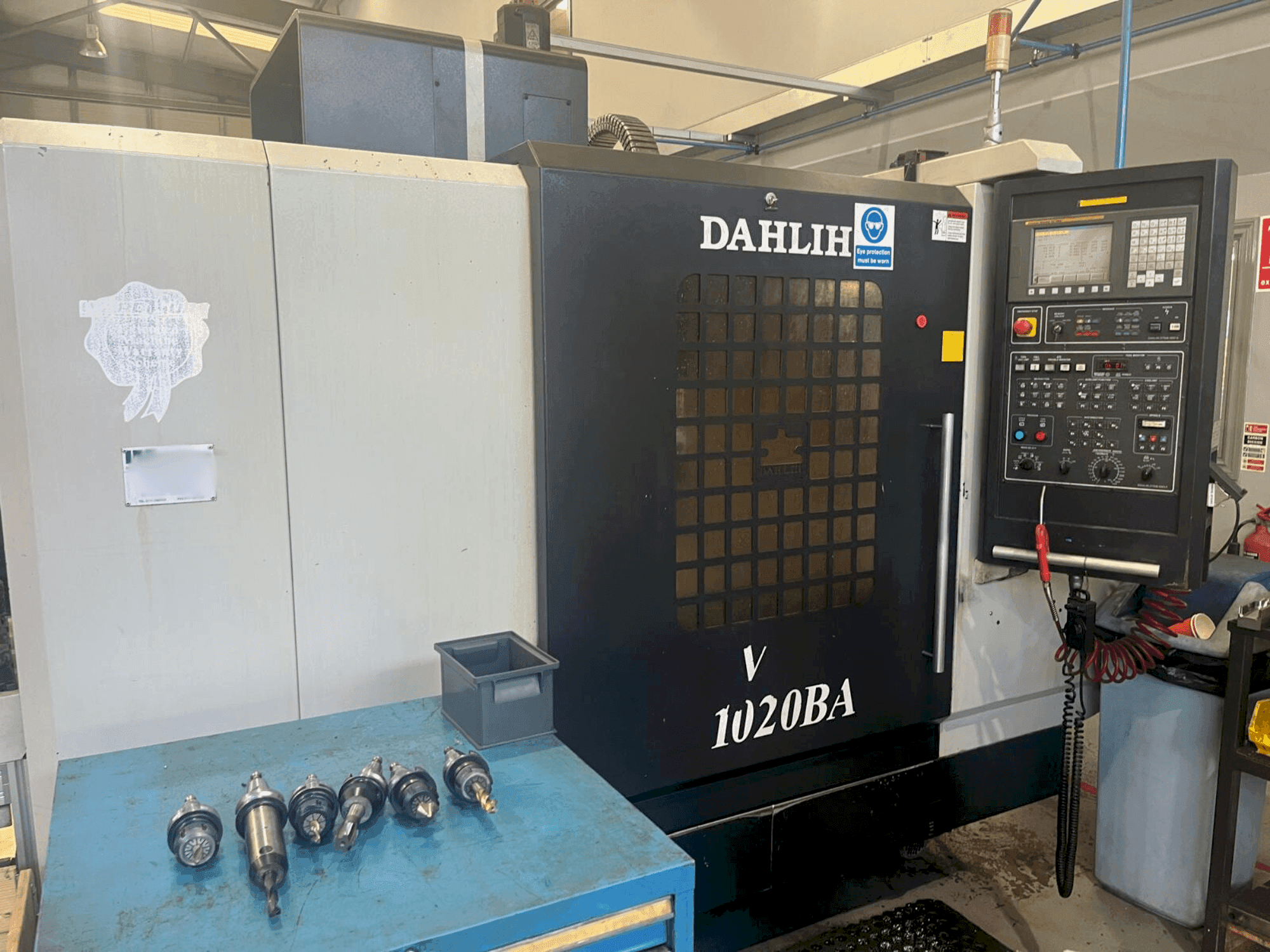

Front view of DAH LIH DL-MCV1020BA  machine

DAH LIH - DL-MCV1020BAIE-MIL-DAH-2007-00003

Rs. 2,503,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

Click to chat on WhatsApp
Show in original language

This 4-axis DAH LIH MCV 1020 BA vertical machining center was manufactured in 2007, equipped with a Fanuc Oi-MC control unit for precision milling operations. It offers X, Y, Z-axis movements of 1020 mm, 550 mm, and 560 mm respectively, and includes a 4th axis with chuck. Features include an 8000 RPM spindle, internal cooling, and a chip conveyor. The machine is ideal for sub-contract machining with a large table size of 1300 x 660 mm. Consider this DAH LIH MCV 1020 BA vertical machining center for precise milling capabilities. Contact us for further details.


  • brand: DAH LIH
  • year: 2007
  • application type: Milling
  • Location: Ireland
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Fanuc

Technical Information - DAH LIH DL-MCV1020BA

General Data

  • Measurements width: 3060 MM
  • Measurements depth: 3260 MM
  • Measurements height: 2665 MM
  • Machine weight: 6010 KG

Control Unit

  • Brand: Fanuc
  • Model: Oi-MC
  • CNC main language: English

Main drive

  • Spindle speed range: 8000 1/MIN


  • X-AXIS Movement: 1020 mm
  • Y-AXIS Movement: 550 mm
  • Z-AXIS Movement: 560 mm
  • A-AXIS Movement: 360 º MM


  • Outer length: 1300 MM
  • Outer width: 660 MM


  • Max weight: 7 kg
  • Max tool diameter: 127 mm
  • Max tool length: 300 mm
  • Type of tool holder: BT 40


  • Main electronic connection: 380 V
  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional equipment

    • - 4th Axis with Chuck

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Large table, includes 4th axis qualitative

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
