DÖRRIES SCHARMANN - VCE2000/180MC-FC CONTUMATGB-TUR-DOR-2002-00001

Name: DÖRRIES SCHARMANN VCE2000/180MC-FC CONTUMAT
Brand: DÖRRIES SCHARMANN
SKU: GB-TUR-DOR-2002-00001
Price: 41371800 INR
Availability: InStock

Rs. 41,371,800

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DÖRRIES SCHARMANN VCE2000/180MC-FC CONTUMAT For Sale

Show in original language

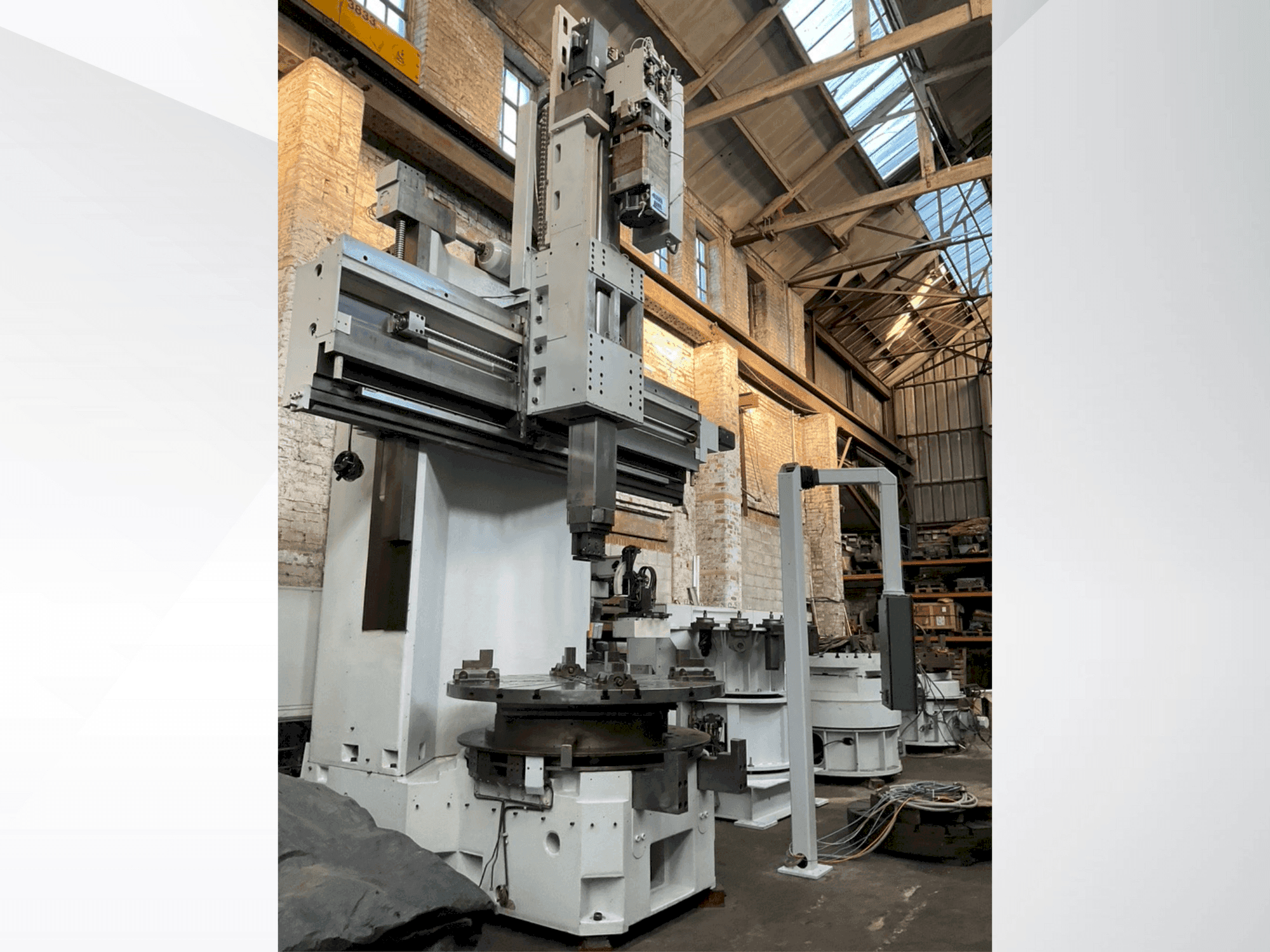

This 5-axis DÖRRIES SCHARMANN VCE2000/180MC-FC CONTUMAT was manufactured in 2002. It features a table diameter of 1800mm, a swing of 2000mm, and a working height of 2451mm. The machine supports a maximum table load of 12 tonnes and offers a main drive motor of 60Kw. Ideal for complex vertical turning tasks, consider the opportunity to buy this DÖRRIES SCHARMANN VCE2000/180MC-FC CONTUMAT vertical turning machine. Contact us for more information about this machine.

Overview

brand: DÖRRIES SCHARMANN
year: 2002
MODEL: VCE2000/180MC-FC CONTUMAT
application type: Turning
Location: United Kingdom
machine type: Vertical Turning Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - DÖRRIES SCHARMANN VCE2000/180MC-FC CONTUMAT

General Data

Machine weight: 76000 kg

Control Unit

Brand: SIEMENS
Model: 840D

Main drive

Spindle motor power: 60 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table diameter: 1800 mm / swing: 2000 mm
- - Maximum table load: 12 tonnes / table speeds: 1. 7-315 rpm in 2 ranges / c-axis speed: 0. 003-4 rpm
- - Ram section: 250x250 mm / ram traverse: 1500 mm/ saddle traverse: 1350 mm / crossrail traverse: 900 mm/ crossrail traverse speed: 425 mm/min/ crossrail saddle cross feed rate: 18 m/min
- - Milling drive motor: 30 kw / milling speeds: 8-3000 rpm in 2 ranges / milling spindle holder: sk50 / milling spindle cooling: thru spindle
- - Operating voltage: 380/415 v / control voltage: 24 v dc / frequency: 50 hz / total connected power load: approximately 173 kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
