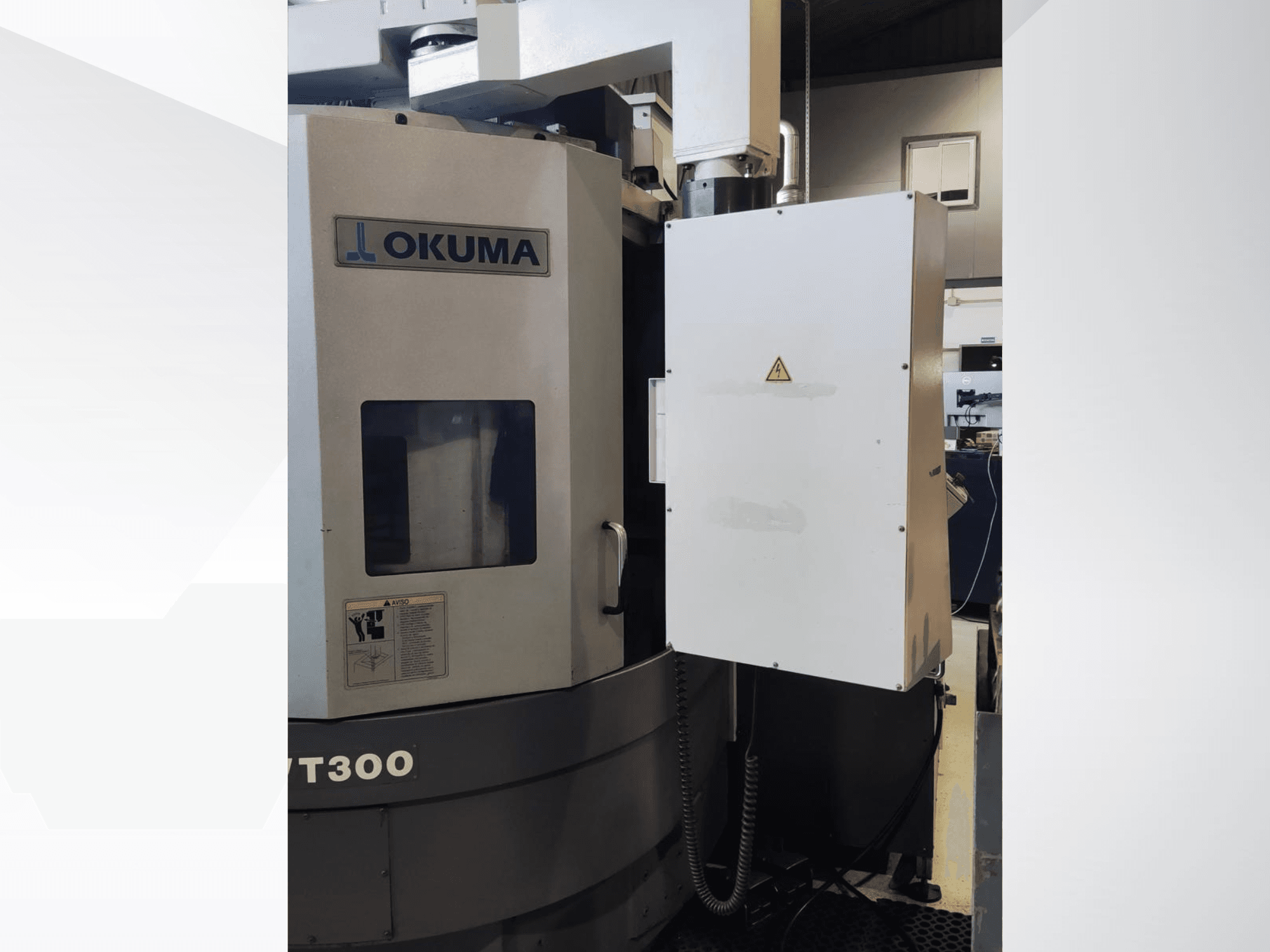

Vertical turning machine manufactured in 2004. This Okuma LVT300 features a maximum turning diameter of 280 mm and a turning length of 150 mm. It offers X-axis travel of 220 mm and Z-axis travel of 620 mm, with a spindle speed range of 40 to 4,000 rpm. If you are looking to get high-quality turning capabilities, consider the Okuma LVT300 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: Okuma
- year: 2004
- MODEL: LVT300
- application type: Turning
- Location: Spain
- machine type: Vertical Turning Machine
- control unit brand: OKUMA
Technical Information - Okuma LVT300
Control Unit
- Control Brand: OKUMA
- Control Model: OSP-P200L
Dimensions
- Machine Weight: 5500 kg
Movement
- Number of Axes: 2
- X-axis Travel: 220 mm
- Z-axis Travel: 620 mm
Technical Specification
- Driven Tools: No
- Spindle Speed: 4000 RPM
Additional Information
Max. turning diameter: 280 mm
Max. turning length: 150 mm
X-axis rapid traverse: 60 m/min
Z-axis rapid traverse: 30 m/min
Spindle nose: JIS A2-8
Turret capacity: 12 stations (V12)
Turret type: Bolt-on (VDI-40)
Input voltage: 400 V
Phases: 3
Frequency: 50 Hz
Maximum power consumption: 29.6 kVA
Total full-load current: 42.8 A
Maximum motor current: 96 A
Short-circuit interrupting capacity: 15 kA
Electrical diagram number: W5201-121-772-2
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
