Citizen - Cincom A20PL-TUR-CIT-2018-00001

Name: Citizen Cincom A20
Brand: Citizen
SKU: PL-TUR-CIT-2018-00001
Price: 7649900 INR
Availability: InStock

Rs. 7,649,900

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Citizen Cincom A20 For Sale | gindumac.com

Show in original language

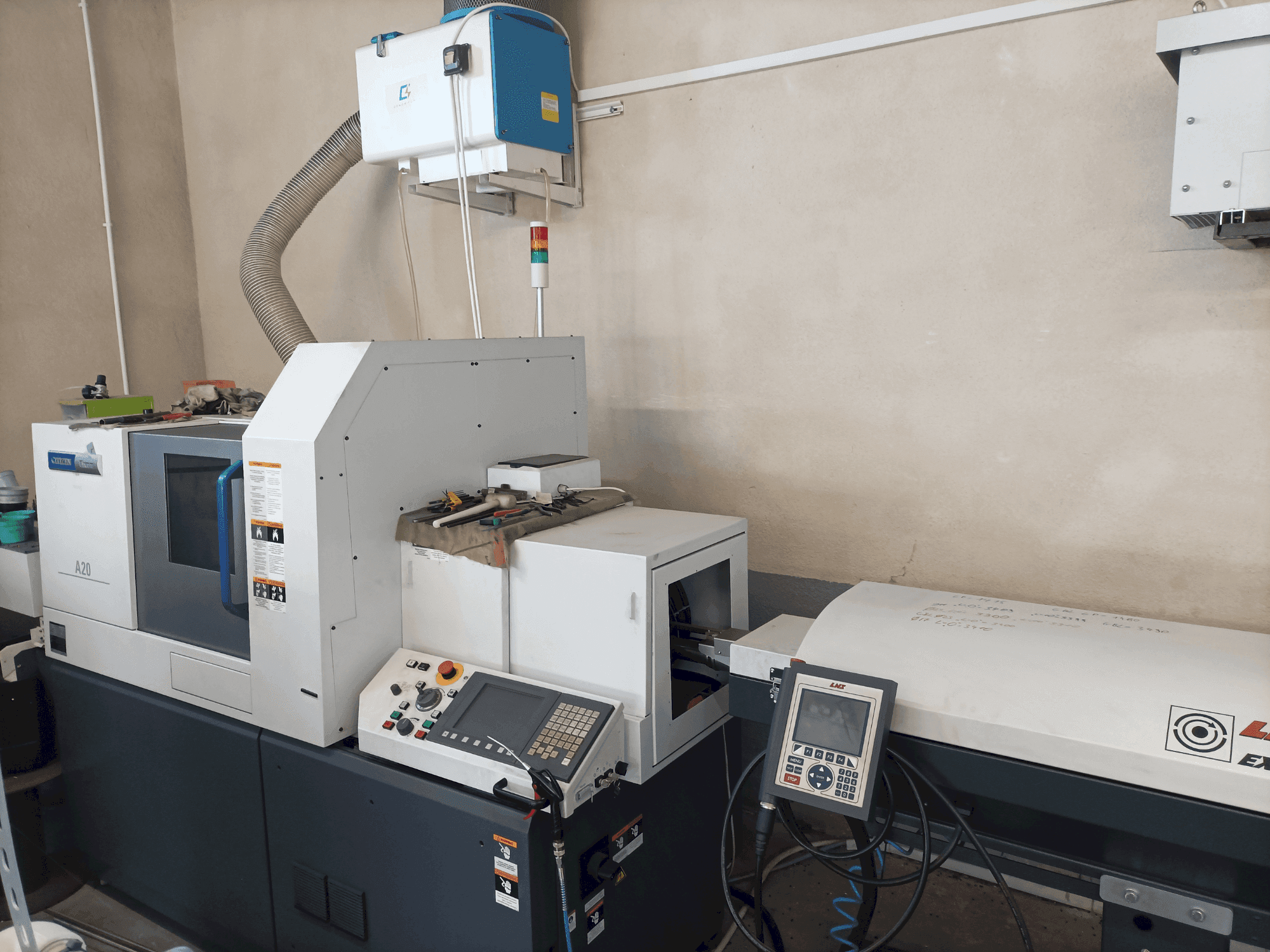

This 6-axis Citizen Cincom A20 was manufactured in 2018 and features a main spindle with a maximum bar diameter of 20 mm and a speed range up to 10,000 rpm. It includes a sub spindle and driven tools with a tool system supporting up to 21 tools. The machine offers rapid traverse rates up to 32 m/min and comes with an LNS Express 220 bar feeder. Consider the opportunity to buy this Citizen Cincom A20 swiss type turning machine. Contact us for more information.

Overview

brand: Citizen
year: 2018
MODEL: Cincom A20
production hours: 958
application type: Turning
Location: Poland
machine type: Swiss Type Turning Machine
availability: Immediately
control unit brand: CINCOM

Technical Information - Citizen Cincom A20

General Data

Measurements width: 1240 mm
Measurements depth: 2120 mm
Measurements height: 1750 mm
Machine weight: 2300 kg

Control Unit

Brand: CINCOM

Main drive

Number of spindles: 2
Spindle speed range: 10000 1/MIN
Spindle motor power: 37 kW
Number of axis: 6

Additional equipment

- Bar feeder with magazine for bars up to 3 m
- Diameter range: 2–20 mm
- Automatic bar change system
- Other accessories

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse: axis x1: 18 m/min axes y1, z1, x2, z2: 32 m/min

Extra information

- Workpiece Main Spindle: Max bar diameter: 20 mm Max machining length: 200 mm Main spindle drive power: 37 kW Spindle speed range: 10000 rpm Spindle indexing – C-axis: 0001 ° Sub Spindle: Max bar diameter: 20 mm Max pick-off length: 80 mm Sub spindle drive power: 15 kW Spindle speed range: 8000 rpm Spindle indexing – C-axis: 0001 ° Tools Driven Tools: Number of tools: 4 Speed range: 6000 rpm Drive power: 075 kW Tool System: Max number of tools: 21 For turning: 5 For drilling (fixed): 4 front / 8 rear

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
