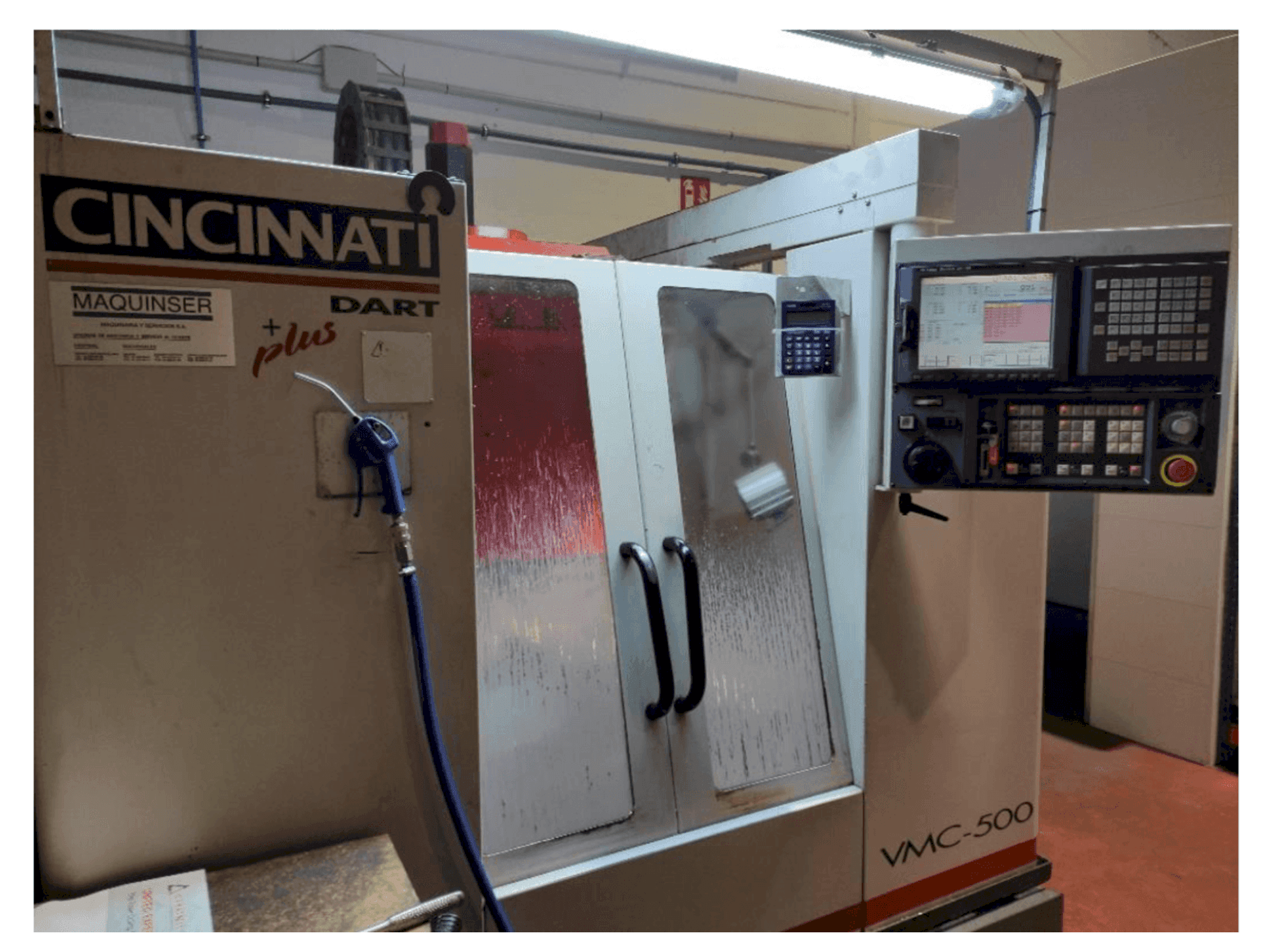

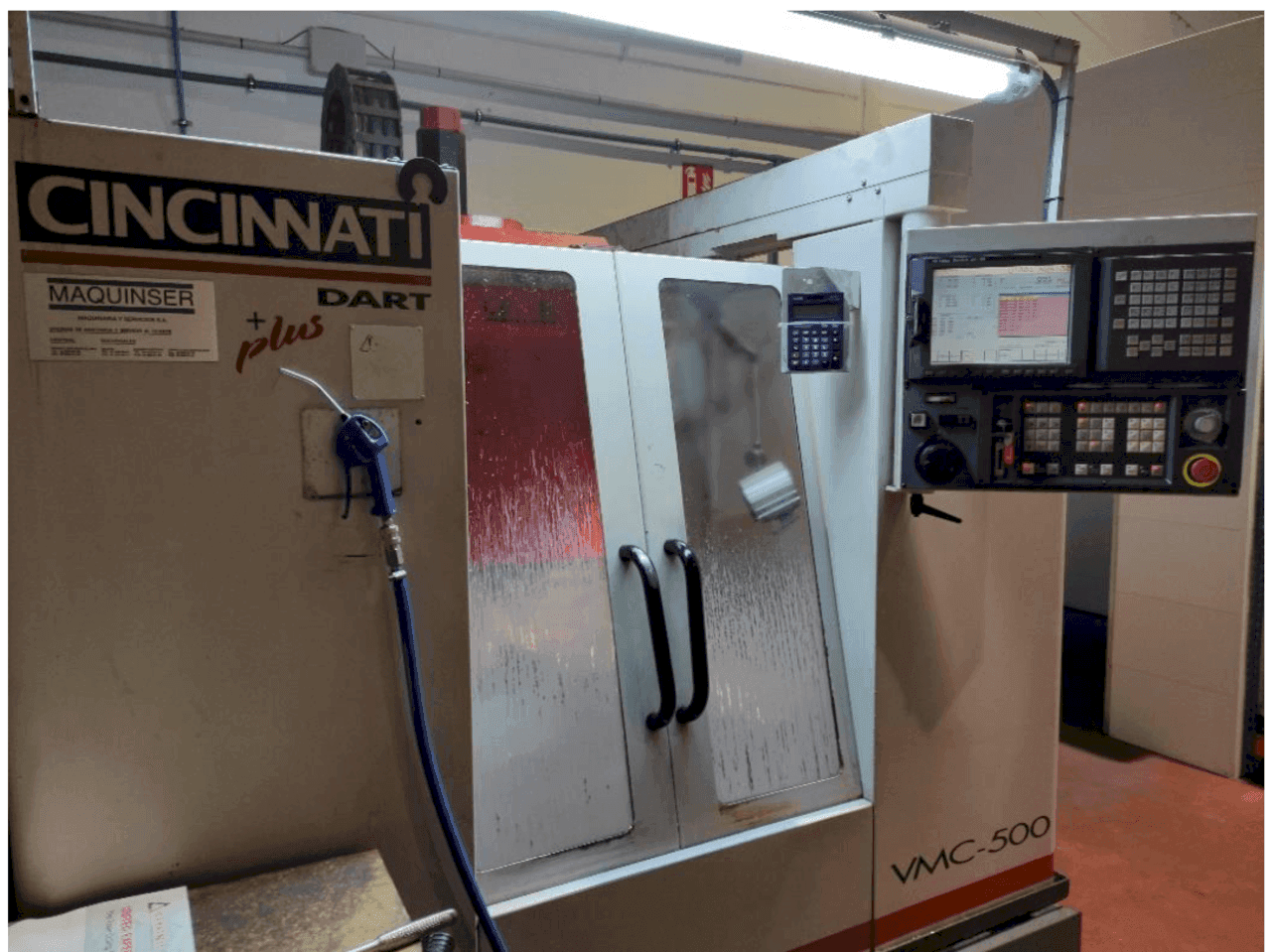

Front view of Cincinnati Dart Plus VMC-500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Cincinnati Dart Plus VMC-500

Photo Gallery

Cincinnati - Dart Plus VMC-500ES-MIL-CIN-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Cincinnati Dart Plus VMC-500 Vertical Machine Center

Show in original language

This Cincinnati Dart Plus VMC-500 Vertical Machine Center was built in the United Kingdom in the year 2001. It is operated through a Fanuc 21i-M control unit and has 3 axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: Cincinnati
year: 2001
MODEL: Dart Plus VMC-500
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Cincinnati Dart Plus VMC-500

General Data

Machine weight: 3500 kg

Control Unit

Model: 21i-M
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 510 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 350 kg

Table

Outer length: 700 mm
Outer width: 520 mm

Tools

Slots in storage: 21
Type of tool holder: BT-40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
