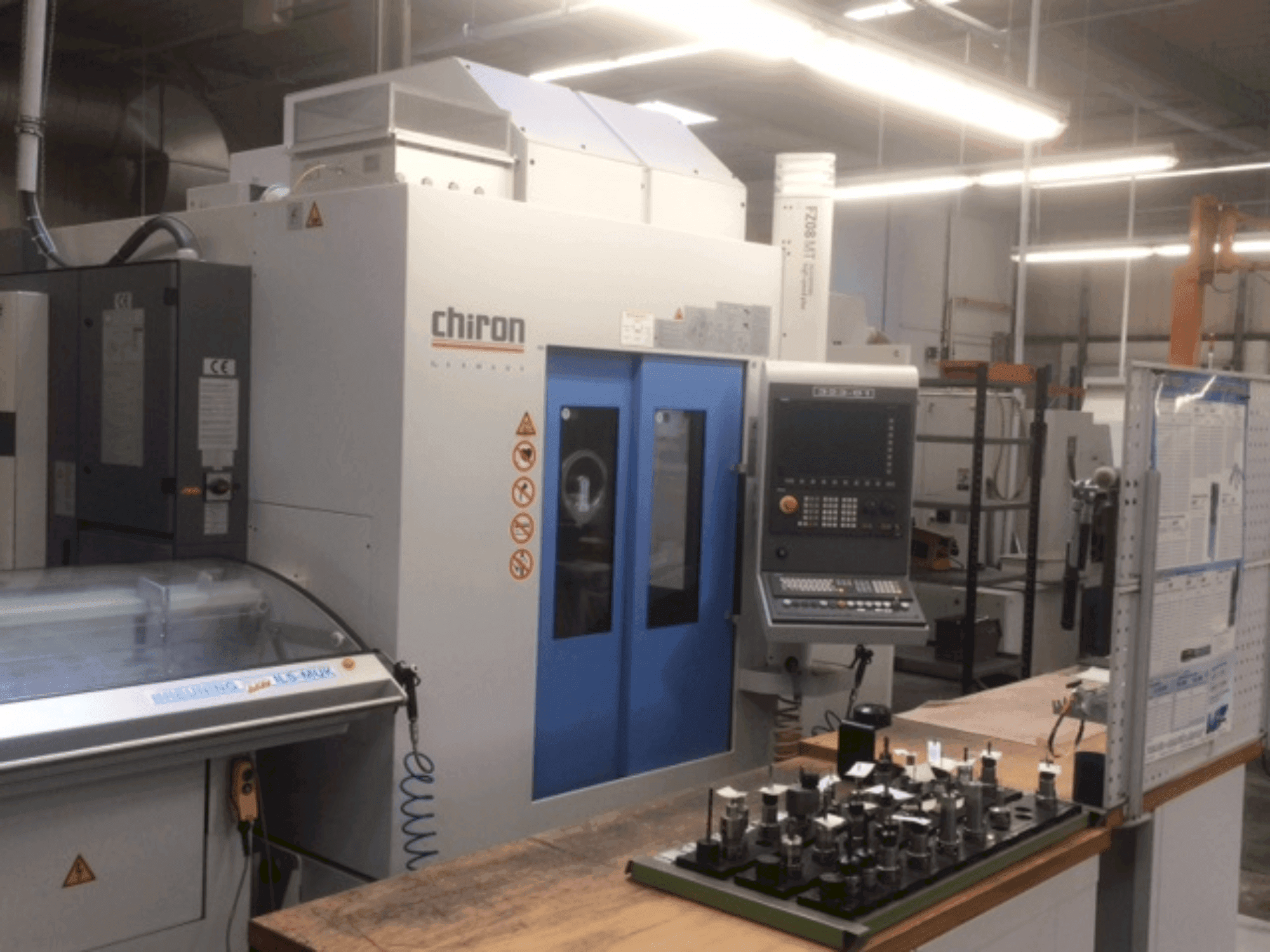

This 5-axis CHIRON FZ08 MT turn-mill centre was manufactured in 2011. Consider the opportunity to buy this CHIRON FZ08 MT turn-mill centre. Contact us for more information.
Overview
- brand: CHIRON
- year: 2011
- MODEL: FZ08 MT
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - CHIRON FZ08 MT
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D solution line
Movement
- Number of Axes: 5
- X-axis Travel: 450 mm
- Y-axis Travel: 270 mm
- Z-axis Travel: 310 mm
Technical Specification
- Spindle Power: 7 kW
- Spindle Speed: 15000 RPM
Additional Information
Additional equipment
- Chip conveyor
- Oil mist extraction
- Signal lamp
- Paper band filter
- Spindle oil cooler
Machine Benefits
Technical Machine Benefits
- Torque: 15 nm
- Nc swivel head: swivel range: -20° / +115°; rapid traverse speed: 60 rpm; resolution: 0. 0001°
- Turner with centering clamping device czsh 80-a on turret
- Stroke: 2 mm per jaw
- Digital main drive with water-cooled motor spindle
- Fixture flushing with spray nozzles
- Collet chuck with integrated hydraulic release unit
- Tool station organization and siemens tool life monitoring
- Undervoltage relay and button for machine light deactivation
Extra Information
Injection Unit Coolant system High-pressure coolant 70 bar Internal coolant supply Clamping Force Hydraulic system Machine-Specific Data Increased Speed Range for Water-Cooled Motor Spindle: Power: 7 kW at 100% duty cycle, 9 kW at 25% duty cycle; Speed: up to 30000 rpm; Torque: 11 Nm Media Cooling System KF 150 / FKA 500 Tank capacity: 500 l Low-pressure pump: 80 l/min at 3.0 bar to 100 l/min at 1.8 bar High-pressure pump: 20 l/min at 30 bar Machine History Warranty: 4000 hours Extra Information Rotating Viewing Window Pneumatic drive installed on the left front door
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
