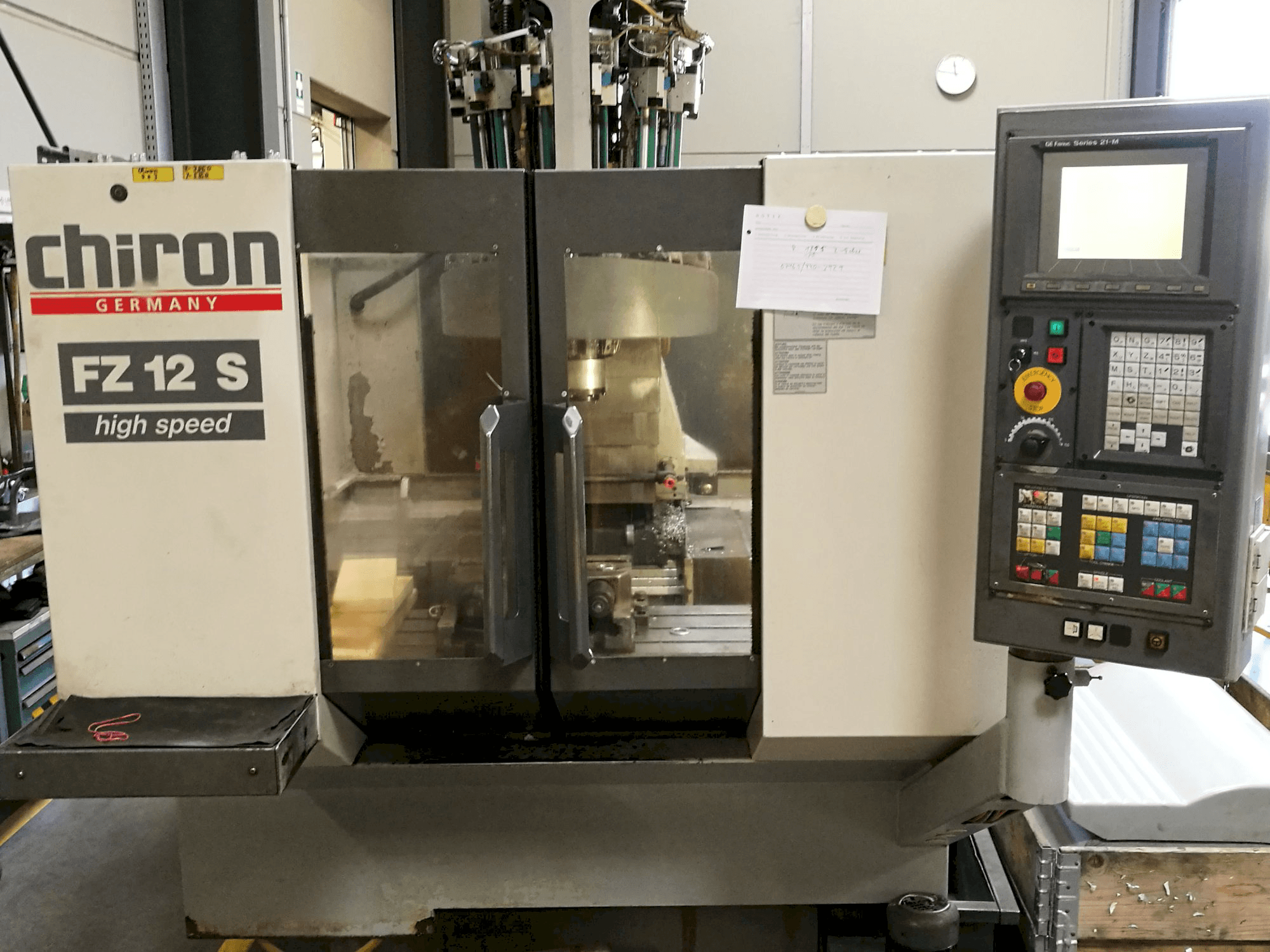

Chiron FZ 12 S Vertical Machining Center

Show in original language

This Chiron FZ 12 S Vertical Machining Center was made in Germany in 1998 and is operated through a FANUC Series 21-M Control unit. This model counts with a spindle speed up to 10500 rpm. During the past, this machine has mainly worked with aluminum up to 5 mm of thickness for machinery parts.

Overview

brand: CHIRON
year: 1998
MODEL: FZ 12 S
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - CHIRON FZ 12 S

General Data

Measurements width: 2530 mm
Measurements depth: 1839 mm
Measurements height: 2535 mm
Machine weight: 3300 kg

Control Unit

Model: Series 21-M
CNC main language: German
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 20-10500 rpm 1/MIN

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 425 mm

Table

Outer length: 950 mm
Outer width: 350 mm

Tools

Slots in storage: 12
Max weight: 4 kg
Max tool diameter: 65 mm
Max tool length: 220 mm
Type of tool holder: SK 30

Media

Main electronic connection: 400 V
Power consumption: 10 kVA

Additional equipment

- Tool holder with some tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
