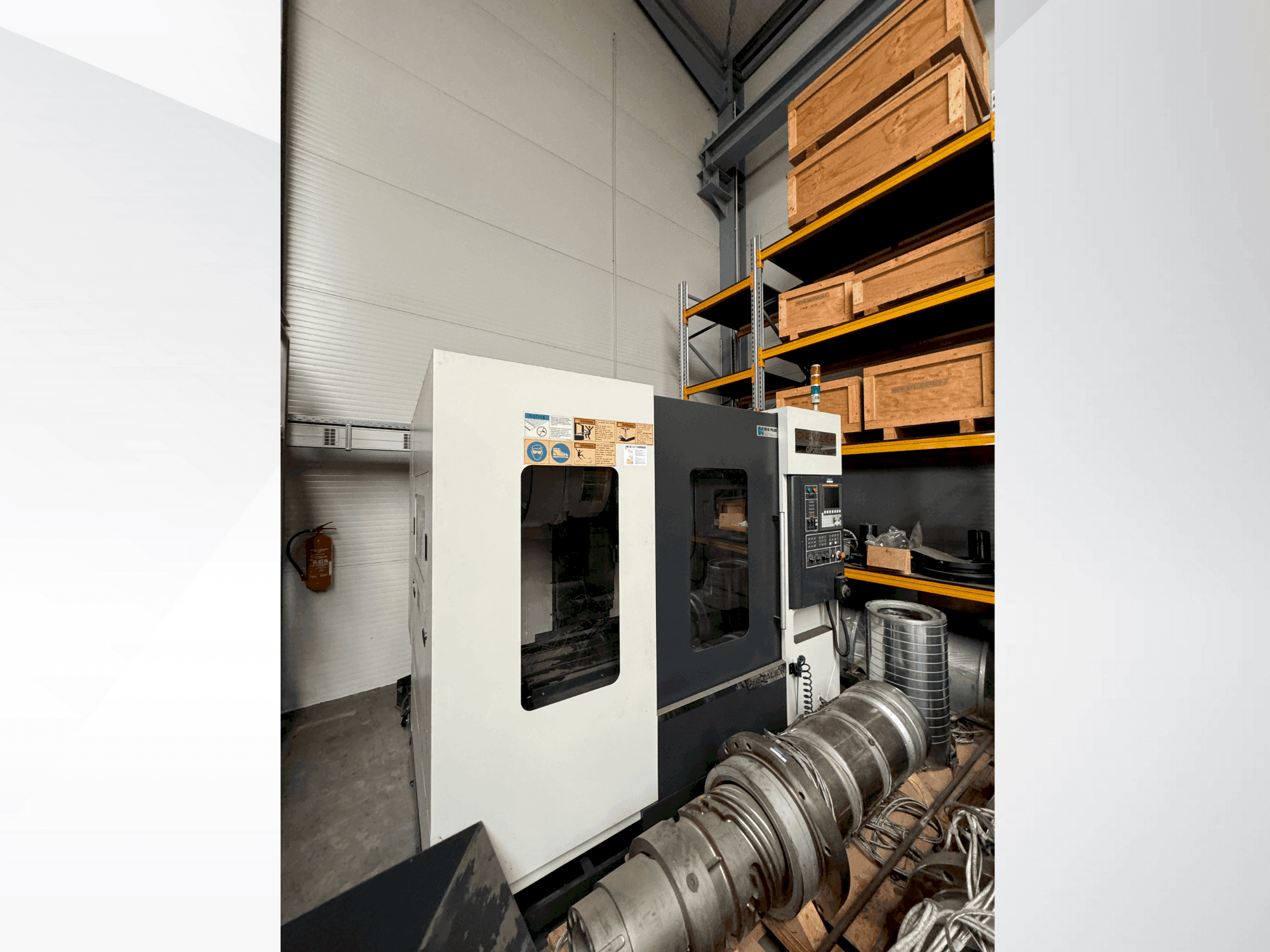

Front view of Chevalier QP2033-L (2015)  machine

Chevalier QP2033-L

Chevalier - QP2033-L

2015

Rs. 7,713,700

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-Axis vertical machine center was manufactured in 2015. The CHEVALIER QP2033-L features a robust 1,000 x 510 mm table, capable of handling loads up to 500 kg. It offers a travel range of 850 mm in X, 530 mm in Y, and 510 mm in Z, with rapid traverse speeds reaching 36 m/min in X and Y, and 24 m/min in Z. With a high-speed spindle operating up to 12,000 rpm and a 24+1 tool capacity, this machine ensures efficient machining operations. The CHEVALIER QP2033-L machine we have for sale is like new and available immediately. For further details, please contact us to learn more about this precision machine center.

Overview

  • brand: Chevalier
  • year: 2015
  • MODEL: QP2033-L
  • application type: Milling
  • Location: Czech Republic
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Fanuc
  • GINDUMAC ID: CZ-MIL-CHE-2015-00001

Technical Information

General Data

  • Measurements width: 2430 mm
  • Measurements depth: 3020 mm
  • Measurements height: 2963 mm
  • Machine weight: 5800 kg

Control Unit

  • Brand: Fanuc
  • Model: 0i-M

Main drive

  • Number of spindles: 1
  • Spindle speed range: 150-12,000 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 850 mm
  • X-AXIS Rapid traverse: 36 m/min
  • Y-AXIS Movement: 530 mm
  • Y-AXIS Rapid traverse: 36 m/min
  • Z-AXIS Movement: 510 mm
  • Z-AXIS Rapid traverse: 24

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Table size 1,000 x 510 mm
      • - Tool storage capacity 24+1
      • - Tool shank bt40
    • Qualitative Machine Benefits:
      • - Machine like new, never used

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
