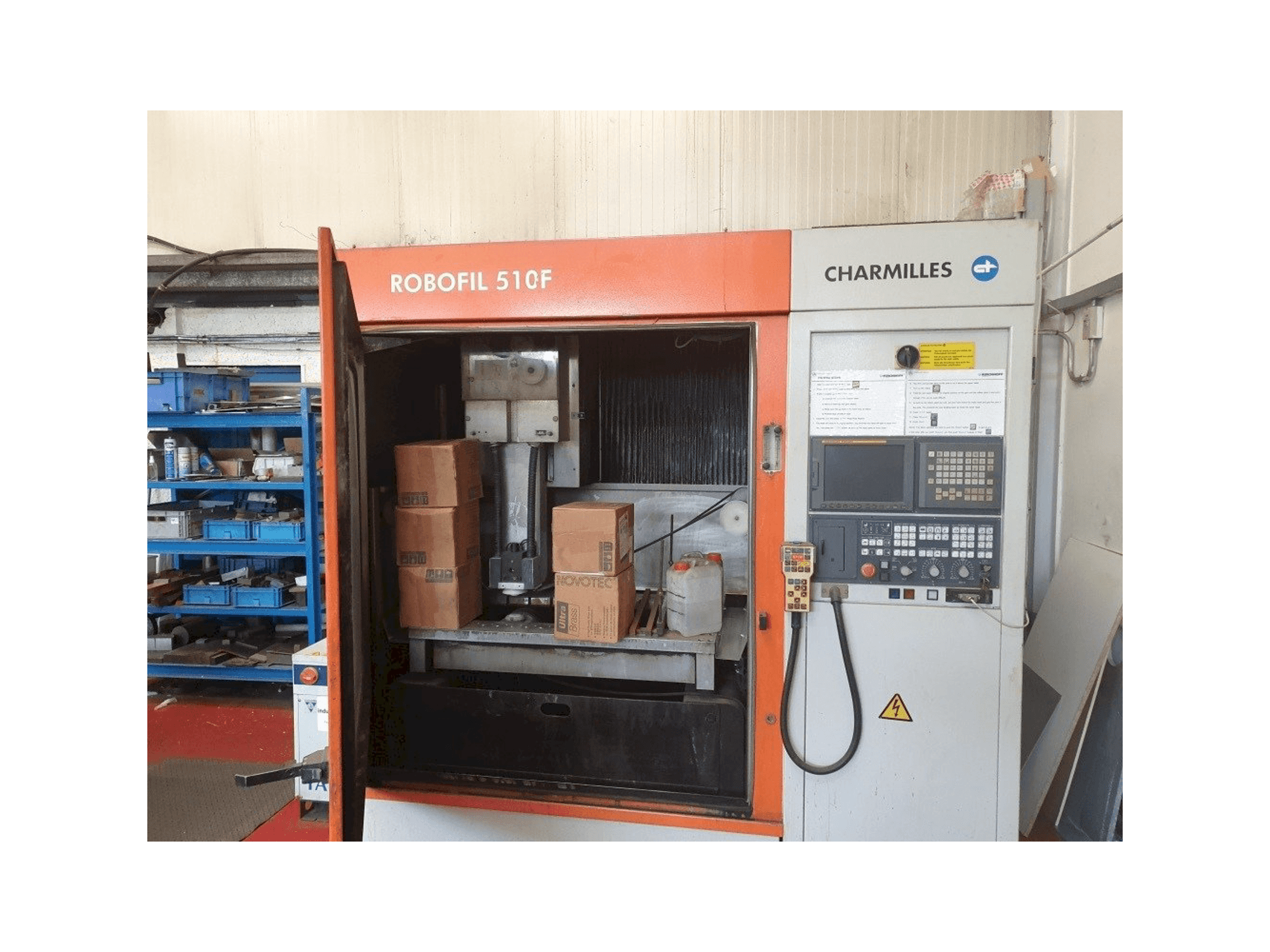

Front view of CHARMILLES Robofil 510F machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

CHARMILLES Robofil 510F

Photo Gallery

CHARMILLES - Robofil 510FIE-EDM-CHA-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
CHARMILLES Robofil 510F Erosion Machine

Show in original language

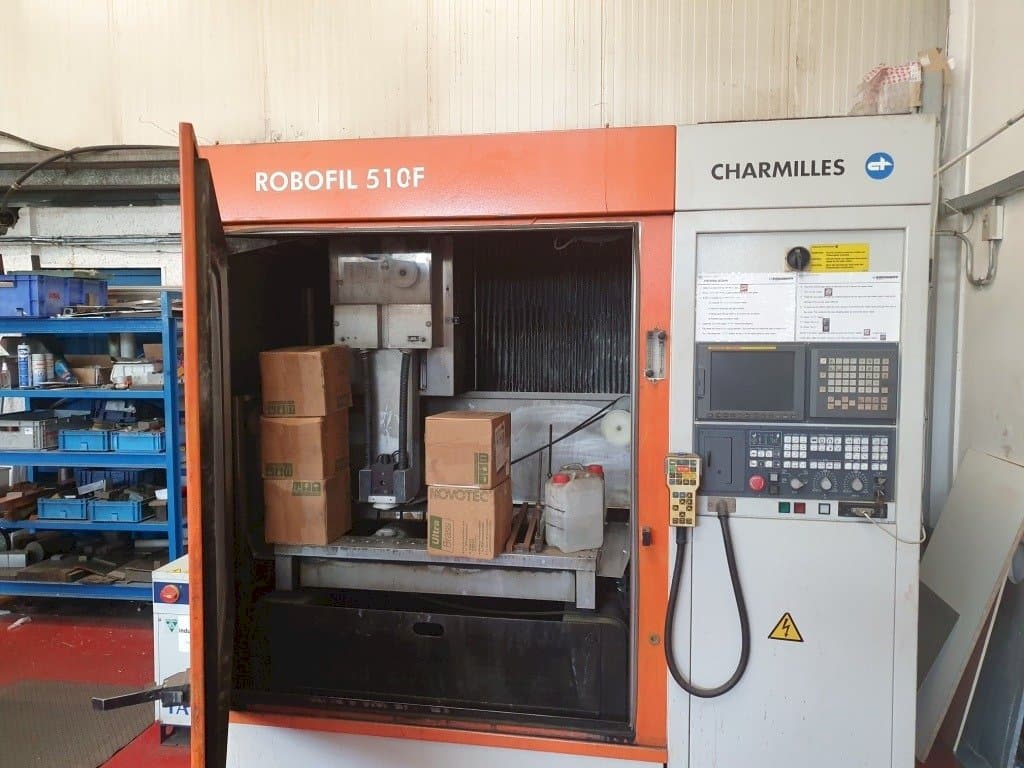

This CHARMILLES Robofil 510F Erosion Machine was made in the year 2001 in Switzerland. It has a production record of only 1560 working hours since then. It is equipped with a Fanuc control unit. This machine incorporates a wire diameter of 0,1 - 0,3 mm and a U/V travels of 700/400mm. It includes a Tae Evo 020 Chiller, and a Novotec Wire Spools as additional equipment. It has been well maintained.

Overview

brand: CHARMILLES
year: 2001
MODEL: Robofil 510F
production hours: 1560
application type: EDM
Location: Ireland
machine type: Wire EDM Machine
control unit brand: FANUC

Technical Information - CHARMILLES Robofil 510F

General Data

Measurements width: 2100 mm
Measurements depth: 2100 mm
Measurements height: 2230 mm
Machine weight: 3350 kg

Control Unit

Brand: FANUC

Main drive

Wire diameter: 0,1- 0,3 mm

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 400 m MM
Z-AXIS Movement: 400 mm

Workpiece

Workpiece x: 1200 mm
Workpiece y: 700 mm
Workpiece z: 400 mm
Workpiece weight: 1500 kg

Media

Main electronic connection: 400 V
Power consumption: 10 kVA

Additional Information

Additional equipment

Tae Evo 020 Chiller
Novotec Wire Spools

Machine Benefits

Qualitative Machine Benefits

Very low hours
Well maintained

Technical Machine Benefits

U/v travels: 700/400mm
Taper capacity: 0 to 30 degrees

Machine History

Industries

Automotive industry

End product

Automotive parts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
