CHARMILLES - ROBOFIL 4030 SiIT-EDM-CHA-1999-00001

Rs. 1,870,967
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

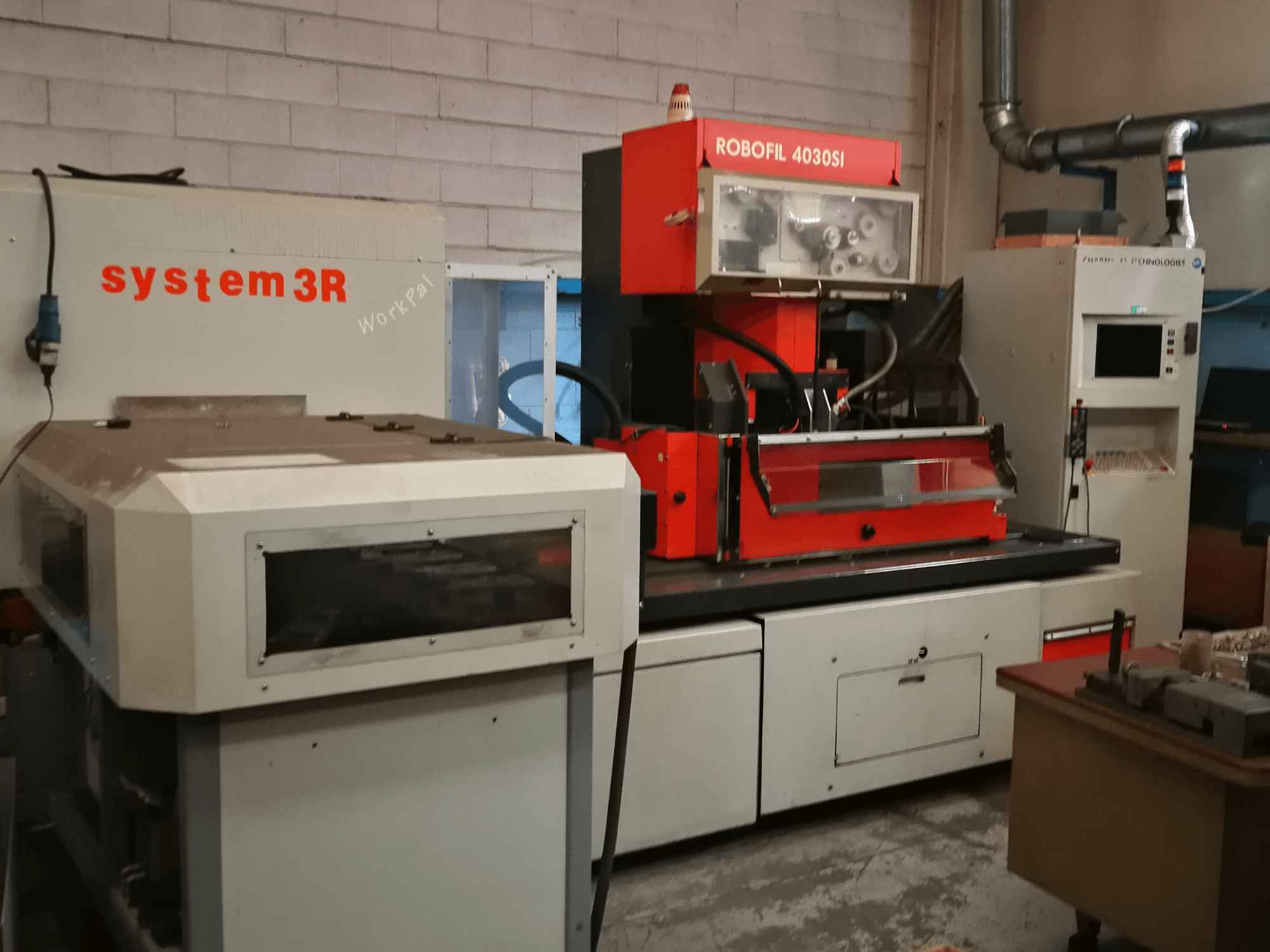

This 4-axis CHARMILLES ROBOFIL 4030 Si was manufactured in 1999. It features a maximum workpiece dimension of 1200 x 700 x 400 mm and can handle a weight of up to 1500 kg. The machine is equipped with a wire diameter range of 0.05 – 0.30 mm and a maximum cutting speed of 500 mm²/min. If you are looking to get high-quality wire EDM capabilities, consider the CHARMILLES ROBOFIL 4030 Si machine we have for sale. Contact us for further details.

Overview

  • brand: CHARMILLES
  • year: 1999
  • MODEL: ROBOFIL 4030 Si
  • application type: EDM
  • Location: Italy
  • machine type: Wire EDM Machine

Technical Information - CHARMILLES ROBOFIL 4030 Si

Dimensions

  • Machine Height: 2430 mm
  • Machine Length: 4010 mm
  • Machine Weight: 4170 kg
  • Machine Width: 3340 mm

Movement

  • Number of Axes: 4
  • X-axis Travel: 400 mm
  • Z-axis Travel: 250 mm

Technical Specification

  • Max. Wire Diameter: 0.3 mm
  • Min. Wire Diameter: 0.05 mm

Additional Information

  • Workpiece:

    • Max workpiece dimensions: 1200 x 700 x 400 mm

    • Max workpiece weight: 1500 kg

  • Axes travels:

    • Y-axis: 300 mm

    • U/V axes: ±48 mm

  • Wire EDM:

    • Max wire speed: 15 m/min

    • Max cutting speed: 500 mm²/min

  • Tank / dielectric:

    • Tank dimensions: 850 x 600 mm

    • Dielectric volume: ~800 l

  • Electrical:

    • Power consumption: 45 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
