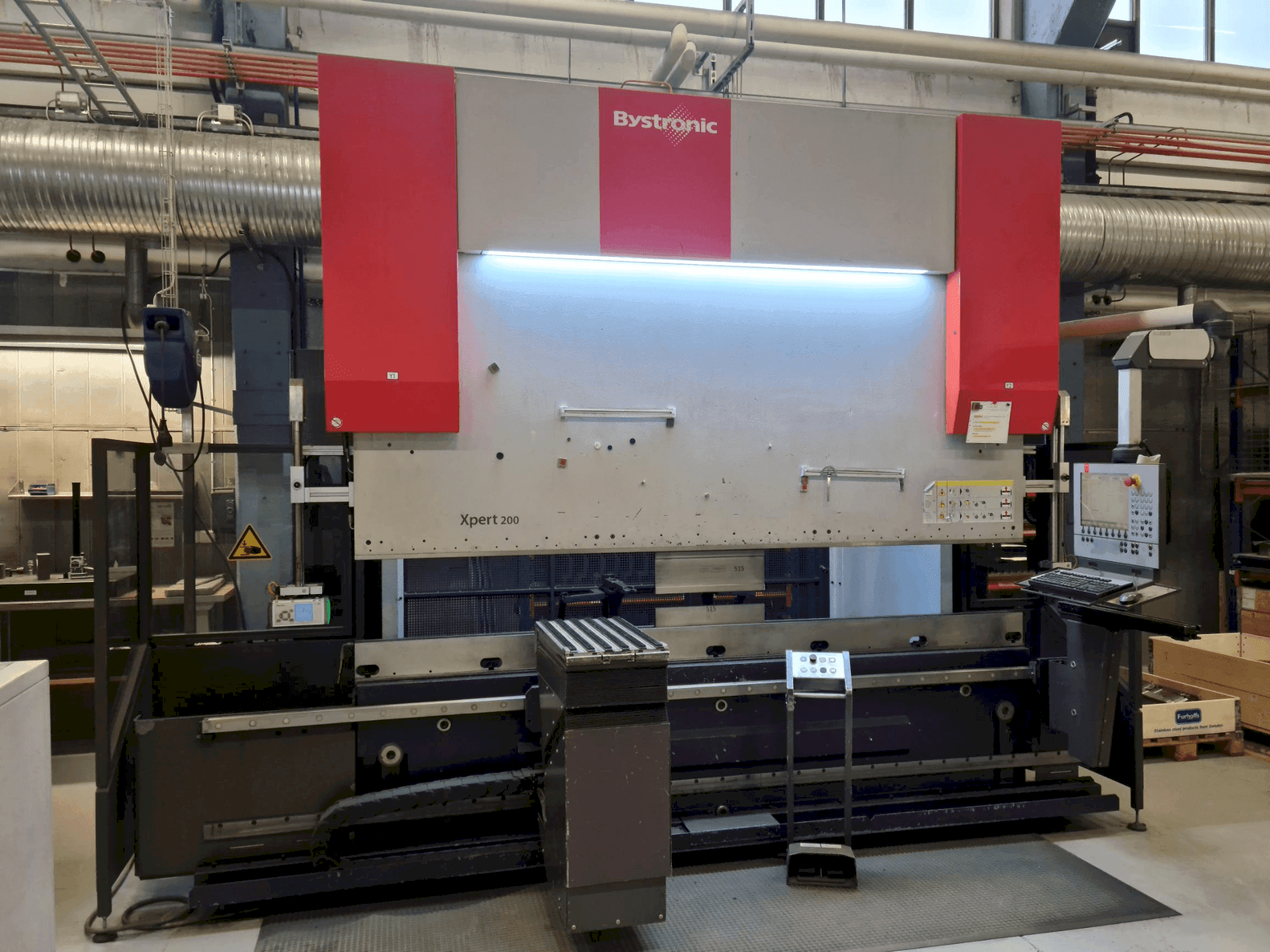

This BYSTRONIC Xpert 200 x 3100 Bending machines machine was manufactured in 2011 in Germany. The machine has a bending length of 3100 mm and includes a box of bending tools.
Overview
- brand: Bystronic
- year: 2011
- MODEL: Xpert 200 x 3100
- application type: Bending
- Location: Sweden
- machine type: Bending machines
- availability: Sold
Technical Information - Bystronic Xpert 200 x 3100
General Data
- Measurements width: 1900 mm
- Measurements depth: 3930 mm
- Measurements height: 2860 mm
- Machine weight: 2000 kg
Main drive
- Number of axis: 6
Table
- Outer width: 60 mm
Additional Information
- Technical Machine Benefits:
- - Bending length: 3. 100mm // bending force = 200t
- - Stanrd stroke: 215 mm
- - Open height: 500mm
- - Distance between the side stands: 2. 750mm
- - Throat: 400mm
- - Table width: 60mm
- - Tool clamping: hydraulic, rf-a
- - Table: hydraulic: t12, size 145x75
- - Driven axis: x1, x2, r1, r2, z1, z2
- Qualitative Machine Benefits:
- - Price includes a box of bending tools, as shown in the fotos
- - Special options: bending support, led, swing counter, hour counter
- - Crack in screen, which does not affect the functionality of the screen // Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
