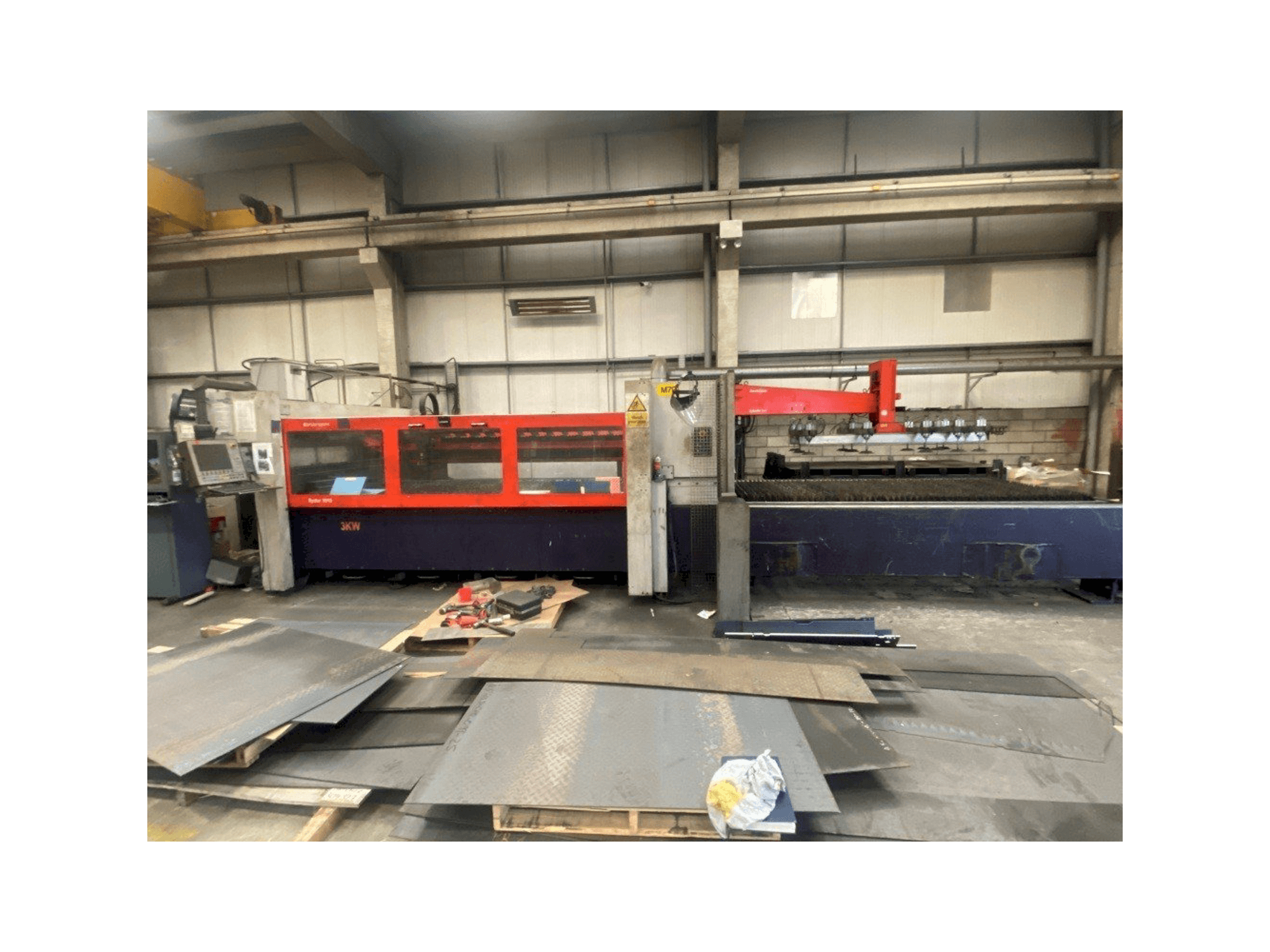

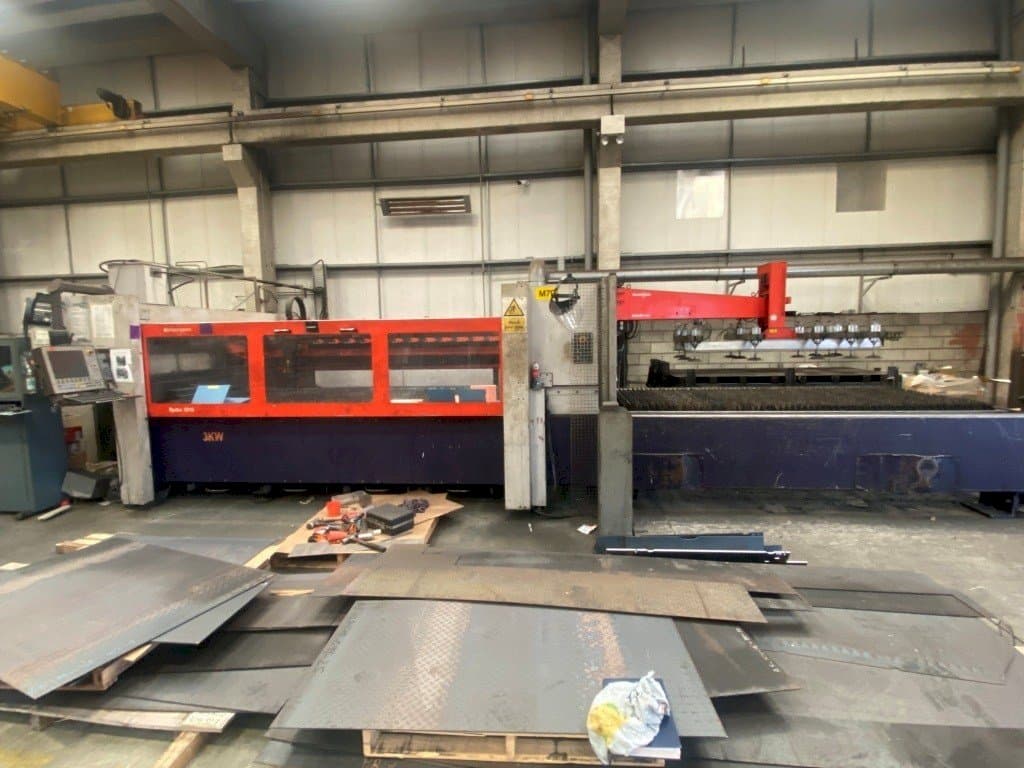

Front view of Bystronic Bystar 3015 machine
Front view of Bystronic Bystar 3015 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Bystronic - Bystar 3015IE-LAS-BYS-2003-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Bystronic Bystar 3015 Laser Cutting Machine was built in 2003 in Switzerland and has 27898 hours. It is equipped with a Bystronic control unit and has 2 axis. This machine has a laser power of 3 kW and includes a ByLoader 3015.

Overview

  • brand: Bystronic
  • year: 2003
  • MODEL: Bystar 3015
  • production hours: 27898
  • application type: Cutting
  • Location: Ireland
  • machine type: CO2 Laser Cutting Machine
  • control unit brand: BYSTRONIC

Technical Information - Bystronic Bystar 3015

General Data

  • Measurements width: 12900 mm
  • Measurements depth: 6100 mm
  • Measurements height: 2070 mm
  • Machine weight: 13500 kg

Control Unit

  • CNC main language: English
  • CNC language customizable: Yes
  • Brand: BYSTRONIC

Main drive

  • Laserpower: 3 kw
  • Laser type: CO2
  • Number of axis: 2

Movement

  • X-AXIS Movement: 3048 mm
  • Y-AXIS Movement: 1524 mm
  • Z-AXIS Movement: 170 mm

Workpiece

  • Workpiece x: 3000 mm
  • Workpiece y: 1500 mm
  • Workpiece z: 170 mm
  • Workpiece weight: 890 kg

Max Material thickness

  • Steel: 20 mm
  • Stainless steel: 12 mm
  • Aluminum: 8 mm

Media

  • Main electronic connection: 400 V
  • Power consumption: 50 kw

    Additional Information

    Additional equipment

    • Extraction Unit
    • Chiller Unit
    • 7.5" Head
    • 5" Head
    • ByLoader 3015

    Machine Benefits

    Qualitative Machine Benefits

    • Laser resonator maintenance: 2022

    Technical Machine Benefits

    • Laser cutting head: 7. 5" and 5"

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
