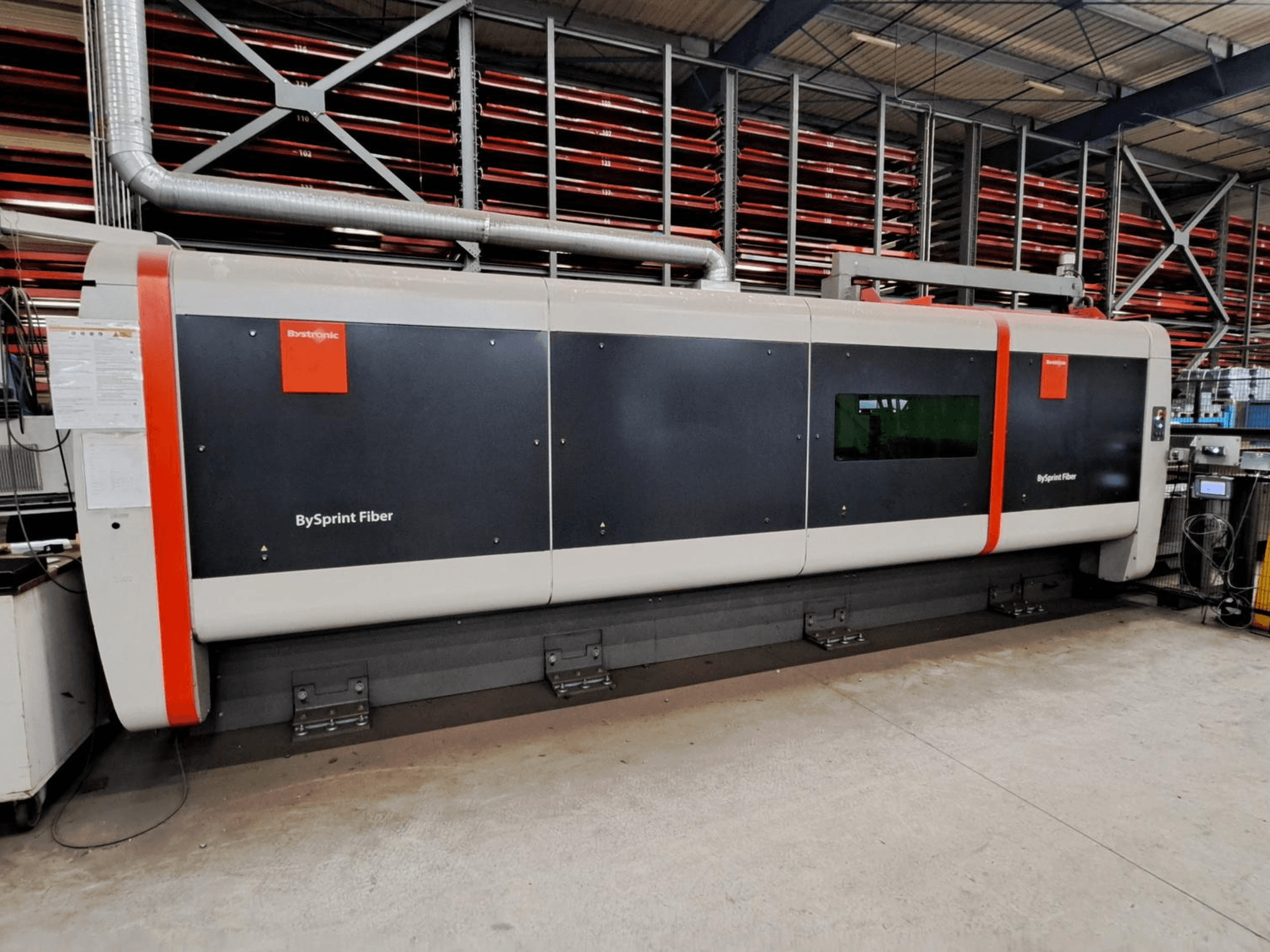

Bystronic - BySprint Fiber 4020FR-CUT-BYS-2017-00001

Working area:

• Cutting area: X 4,064 mm, Y 2,032 mm

• Maximum cutting thickness (Z): 70 mm

Performance:

• Max positioning speed (X/Y): 100 m/min

• Max simultaneous speed: 140 m/min

Accuracy:

• Positioning accuracy (VDI/DGQ 3441): ±0.1 mm

• Repeatability (VDI/DGQ 3441): ±0.05 mm

• Edge detection accuracy: ±0.5 mm

Capacity:

• Maximum workpiece weight: 1,580 kg

Table system:

• Table changeover time: 35 s

Laser specifications:

• Type: Fiber

• Pulse frequency: 1–2,500 Hz

• Wavelength: Fiber standard

Maximum cutting thickness by material:

• Steel: 20 mm

• Stainless steel: 15 mm

• Aluminum: 15 mm

• Copper: 10 mm

• Brass/Bronze: 10 mm

Power consumption:

• Total system consumption (with filtration & chiller): 31.4 kW
