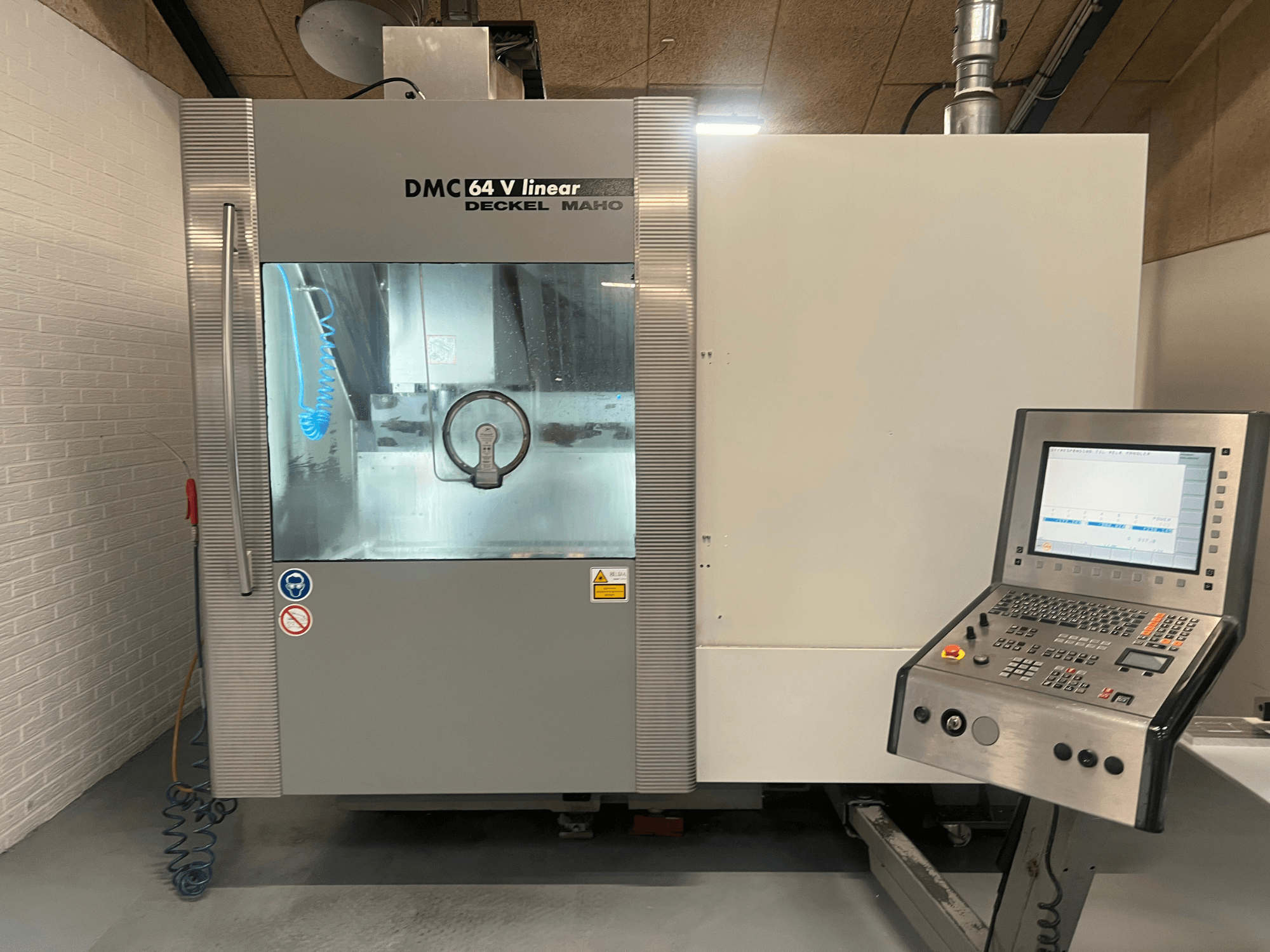

DECKEL MAHO DMC 64 V linear CNC machine, front view with control panel and coolant hose visible.
DECKEL MAHO DMC 64 V linear CNC machine, front view with control panel and coolant hose visible.

Bystronic - Bysprint Fiber 4020DE-CUT-BYS-2014-00003

Rs. 8,696,985
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

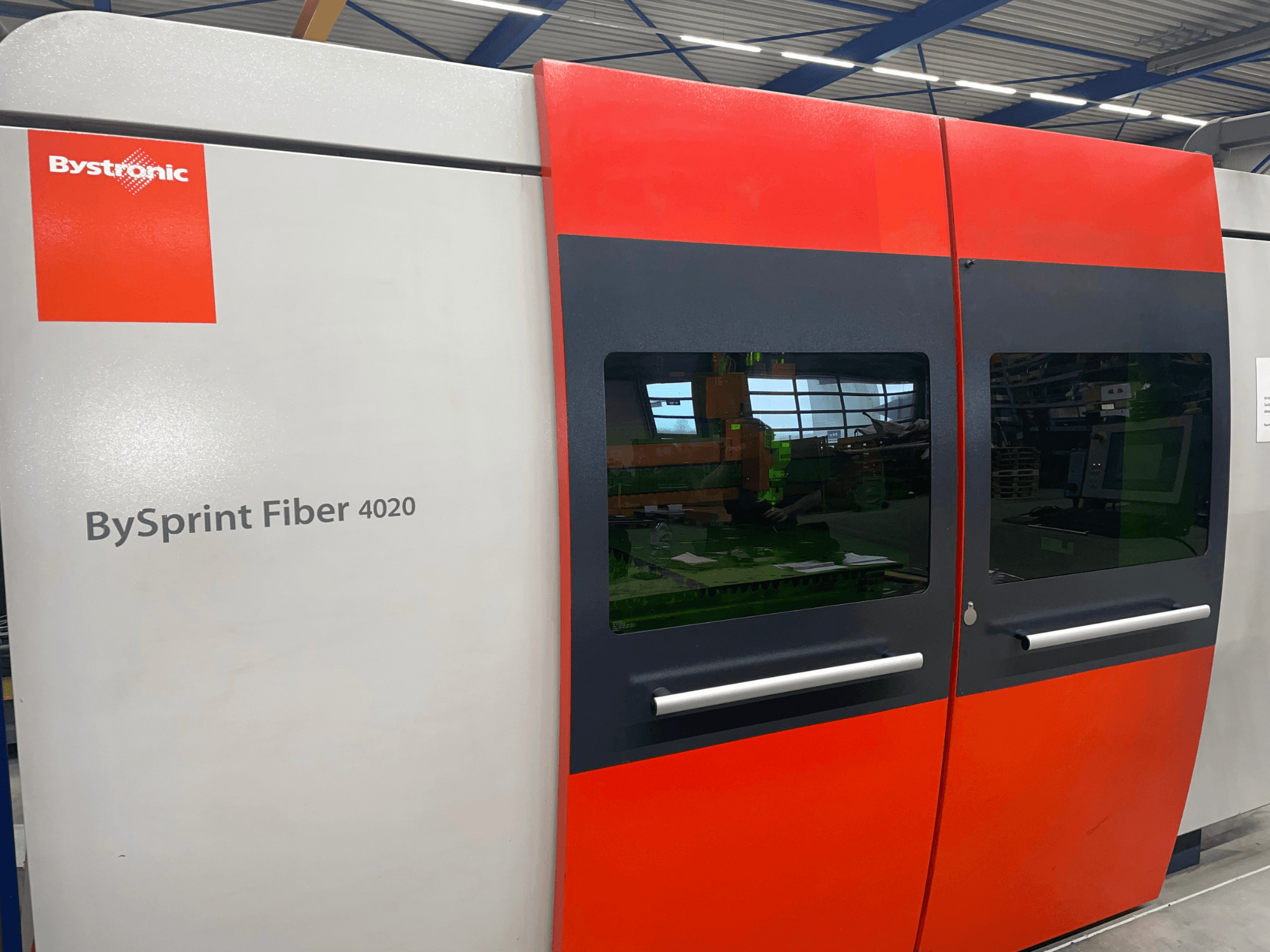

This Bystronic Bysprint Fiber 4020 was manufactured in 2014. It features a large cutting area with dimensions up to 4064 mm by 2032 mm and a maximum cutting thickness of 20 mm for steel. The machine supports a fiber laser source with 6000 W power, ensuring precise and efficient cutting. Consider the opportunity to buy this Bystronic Bysprint Fiber 4020 fiber laser cutting machine. Contact us for more information.

Overview

  • brand: Bystronic
  • year: 2014
  • MODEL: Bysprint Fiber 4020
  • production hours: 40236
  • application type: Cutting
  • Location: Germany
  • machine type: Fiber Laser Cutting Machine
  • Available from: 31/03/2026

Technical Information - Bystronic Bysprint Fiber 4020

Dimensions

  • Machine Height: 2500 mm
  • Machine Length: 12900 mm
  • Machine Weight: 15000 kg

Additional Information

  • Sheet size: X 4000 mm; Y 2000 mm

  • Cutting range: X 4064 mm; Y 2032 mm; Z 70 mm

  • Maximum simultaneous positioning speed: 140 m/min

  • Maximum parallel positioning speed (X/Y): 100 m/min

  • Maximum axis acceleration: 12 m/s²

  • Positioning variation Ps (VDI/DGQ 3441): 0.05 mm

  • Positioning deviation Pa (VDI/DGQ 3441): 0.1 mm

  • Edge detection accuracy: 0.5 mm

  • Maximum workpiece weight: 1270 kg

  • Table changeover time: 35 s

  • Laser source: Fiber, 6000 W

  • Pulse frequency: 1–2500 Hz

  • Control range: 600–6000 W

  • Wavelength: 1 µm

  • Max cutting thickness: steel 20 mm; stainless steel 15 mm; aluminum 15 mm; brass 10 mm; copper 10 mm

  • Electrical consumption (with extraction, cooling unit): 31 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
