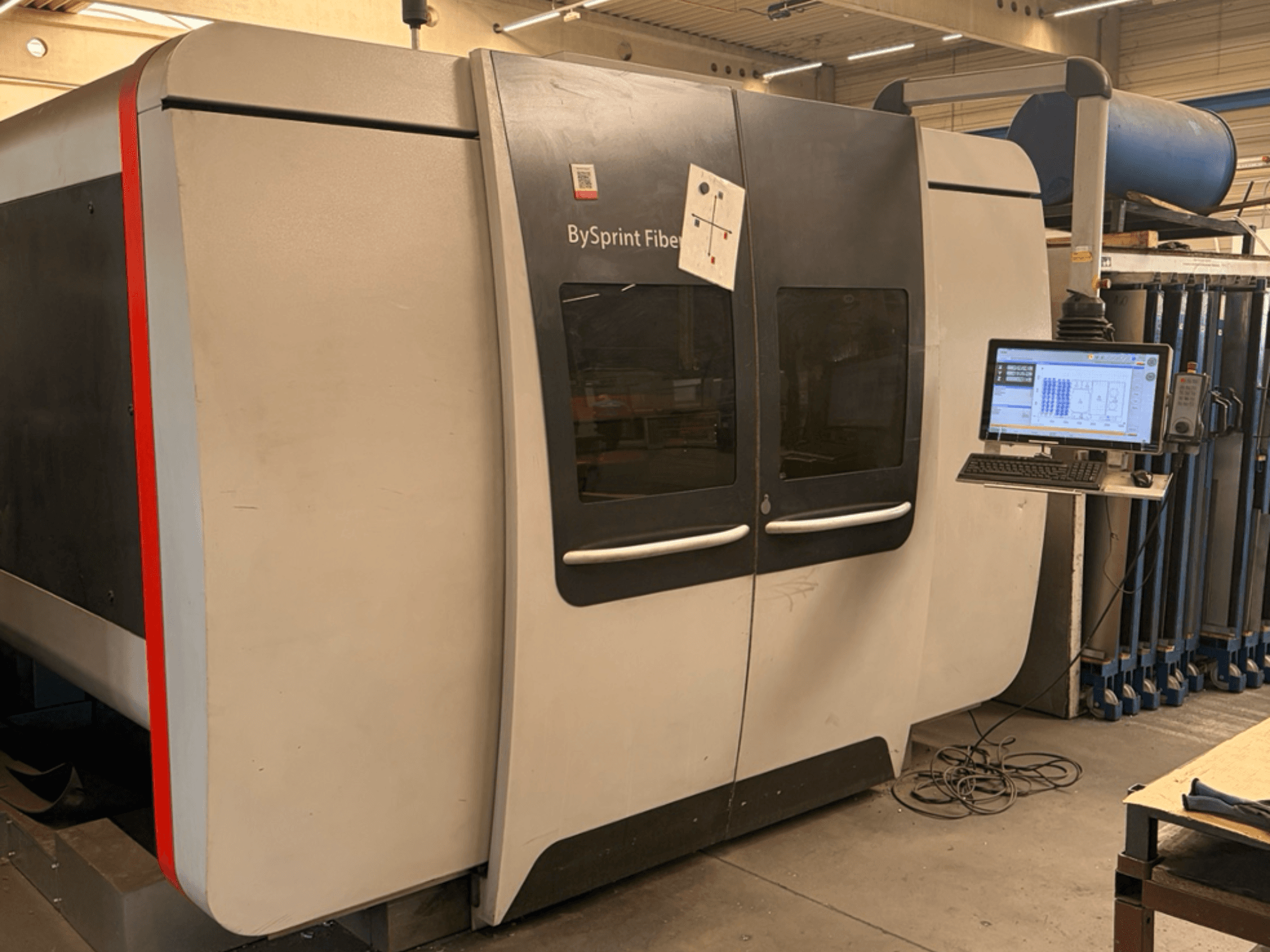

This 3-axis Bystronic BySprint Fiber 3015 incl. ByTrans Extended Loading/unloading system was manufactured in 2016. It features a powerful 4000 W fiber laser source and a working area of 3048 mm x 1524 mm. The machine includes an automatic shuttle table system and a fully enclosed safety cabin, ensuring efficient and safe operation. If you are looking to get high-quality fiber laser cutting capabilities, consider the Bystronic BySprint Fiber 3015 machine we have for sale. Contact us for further details.
Overview
- brand: Bystronic
- year: 2016
- MODEL: BySprint Fiber 3015
- application type: Cutting
- Location: Germany
- machine type: Fiber Laser Cutting Machine
- Available from: 14/09/2026
- control unit brand: BYSTRONIC
Technical Information - Bystronic BySprint Fiber 3015
Control Unit
- Control Brand: BYSTRONIC
- Control Model: ByVision
Dimensions
- Machine Height: 2565 mm
- Machine Length: 11018 mm
- Machine Weight: 12000 kg
- Machine Width: 6051 mm
- Table Length: 3000 mm
- Table Load: 890 kg
- Table Width: 1500 mm
Movement
- Number of Axes: 3
- X-axis Travel: 3048 mm
- Y-axis Travel: 1524 mm
- Z-axis Travel: 70 mm
Technical Specification
- Laser Power: 4 kW
- Positioning Accuracy: 100 µm
Additional Information
Bystronic BySprint Fiber 3015 incl. ByTrans Extended Loading/unloading system
* Laser Source: Fiber 4000
* Laser Technology: Fiber Laser
* Laser Power: 4000 W
* Pulse Frequency: 1–2500 Hz
* Power Control Range: 400–4000 W
* Sheet Size (X): 3000 mm
* Sheet Size (Y): 1500 mm
* Maximum Positioning Speed X/Y: 100 m/min
* Maximum Simultaneous Positioning Speed: 140 m/min
* Position Accuracy (VDI/DGQ 3441): ±0.1 mm
* Repeatability (VDI/DGQ 3441): ±0.05 mm
* Edge Detection Accuracy: ±0.5 mm
* Maximum Workpiece Weight: 890 kg
* Shuttle Table Change Time: 35 s
* Maximum Mild Steel Thickness: 20 mm
* Maximum Stainless Steel Thickness: 15 mm
* Maximum Aluminium Thickness: 15 mm
* Maximum Brass Thickness: 8 mm
* Maximum Copper Thickness: 8 mm
* Total Power Consumption (including extraction and chiller): 25.3 kW
Equipment & Features
* Automatic Shuttle Table System with 2 Shuttle Tables
* Fully Enclosed Safety Cabin
* Chip Trolley with Rollers
* CNC Control Cabinet
* Touchscreen with ByVision User Interface
* Maintenance Messenger
* Restart Manager
* System Manager
* Handheld Control Unit
* Cutting Parameter Assistant
* Uninterruptible Power Supply (UPS)
* Cutting Bridge
* Cutting Head
* Piercing Jet
* ByPos Fiber
* Automatic Nozzle Cleaning
* Scanning Function
* Fiber Laser Source
* Tank Heating
* Tropicalization Package
* Standard Extraction Unit 3000
* Automation / Handling Interface
* Chiller for Fiber 4000
* Operator Protection in Cutting Area
* Operator Protection in Loading / Unloading Area
* Power Supply: 400 V / 50 Hz
* Electrical Connection (Machine incl. Laser Source)
* Compressed Air Connection (Machine incl. Laser Source and Chiller)
* Material Specification Package
* Part Tolerances and Cut Surface Quality Package
* Cutting Gas Supply and Cutting Quality Package
* Environmental Requirements Documentation
* Building Requirements Documentation
* Machine Documentation
* STL Cabinet
Additional Equipment
* ByTrans 3015 Extended Loading / Unloading System
* 2 Cassettes with Copper Supports
* Additional Suction Unit for Sheet Separation
* Cut Control Fiber
* Special Position of the Control Cabinet
* Automatic Nozzle Changer with 40 Positions
* Second Operator Console
* Observer Hardware
* OPC Interface Cutting
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
