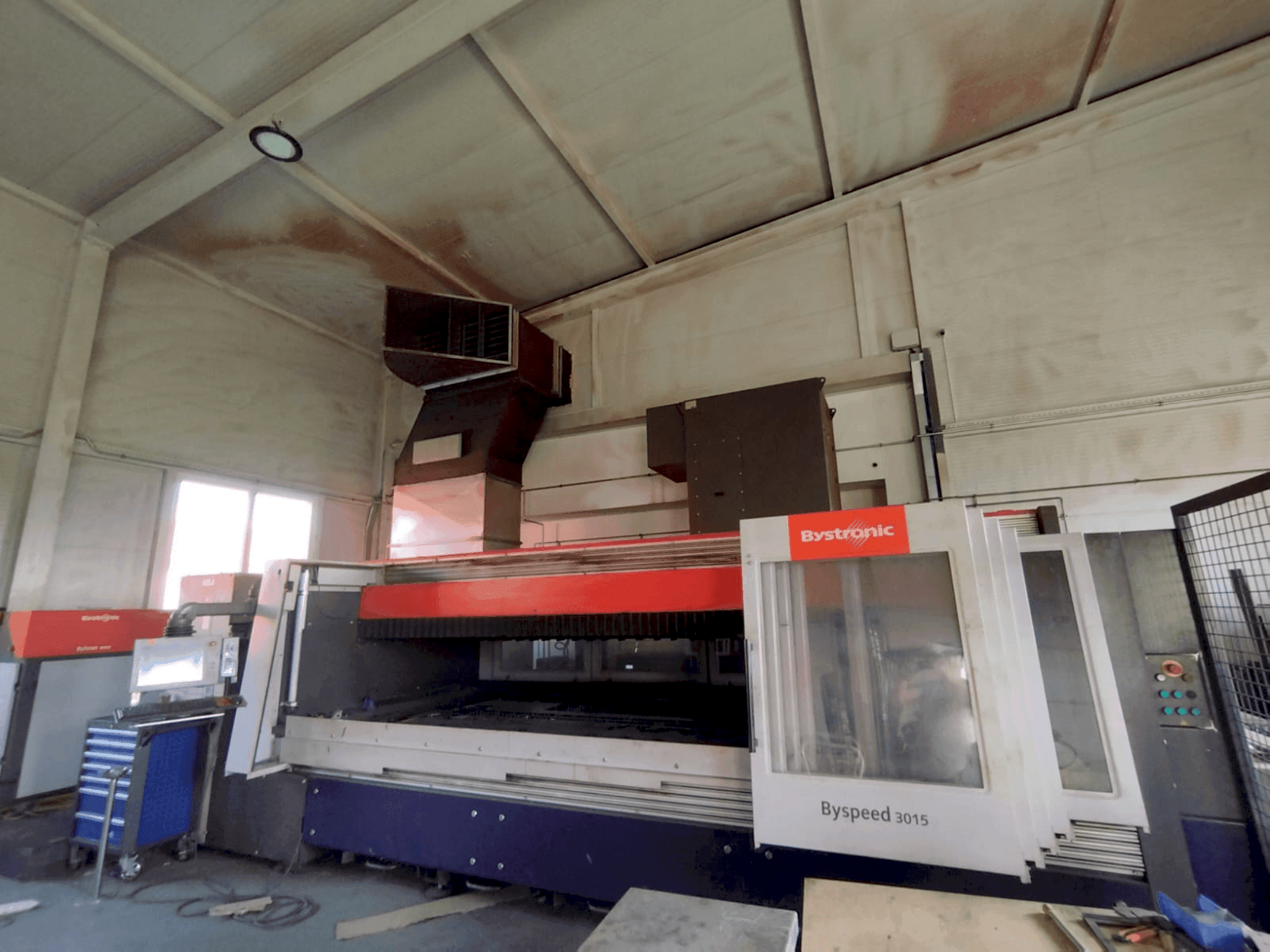

Front view of Bystronic BySpeed 3015 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic BySpeed 3015

Photo Gallery

Bystronic - BySpeed 3015SI-CUT-BYS-2009-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Bystronic BySpeed 3015 For Sale | gindumac.com

Show in original language

This CO2 laser cutting machine was manufactured in 2009. It features a powerful 4.4 kW CO2 laser, capable of cutting through structural steel up to 25 mm thick and a work table of 3000 x 1500 mm. Ideal for handling diverse materials, it offers high-speed cutting with a maximum speed of 50 m/min. Consider the Bystronic BySpeed 3015 machine we have for sale. For more information about this CO2 laser cutting machine, please reach out to us.

Overview

brand: Bystronic
year: 2009
MODEL: BySpeed 3015
application type: Cutting
Location: Slovenia
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - Bystronic BySpeed 3015

Main drive

Laserpower: 4.4 kw
Laser type: CO2 Laser

Movement

X-AXIS Movement: 3048 mm
Y-AXIS Movement: 1524 mm
Z-AXIS Movement: 100 mm

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm

Additional equipment

- Compressor
- Storage tank
- Ventilation

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Wavelength: 10. 6 μm
- - Laser beam diameter: 20 mm
- - Simultaneous x/y axis positioning speed: 30 m/s²
- - Maximum radial acceleration: 10 m/s²
- - Maximum cutting speed: 50 m/min
- - Maximum sheet thickness (brass): 3 mm
- - Maximum sheet thickness (copper): 3 mm
- - Maximum sheet thickness (titanium): 3 mm
- - Maximum weight of the workpiece: 890 kg
- - Capable of cutting various materials with different thicknesses
Qualitative Machine Benefits:
- - High positioning accuracy and speed
- - Comprehensive additional equipment for efficient operation
- - Total required power: 65 kw
- - Power supply: 3×400 v; 50 hz

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
