Bystronic 3P 80/210

Photo Gallery

Bystronic - 3P 80/210PL-BEN-BYS-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

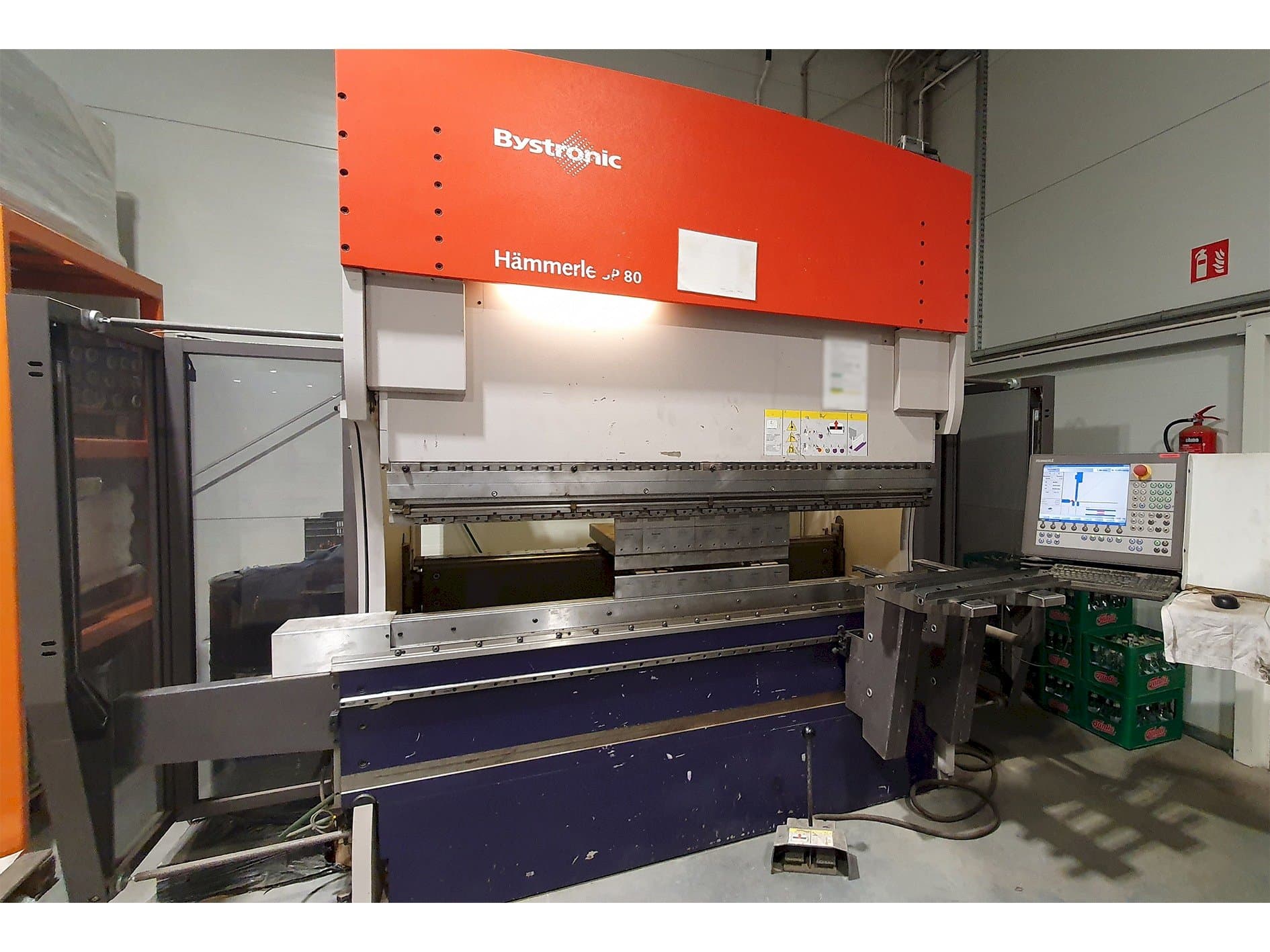

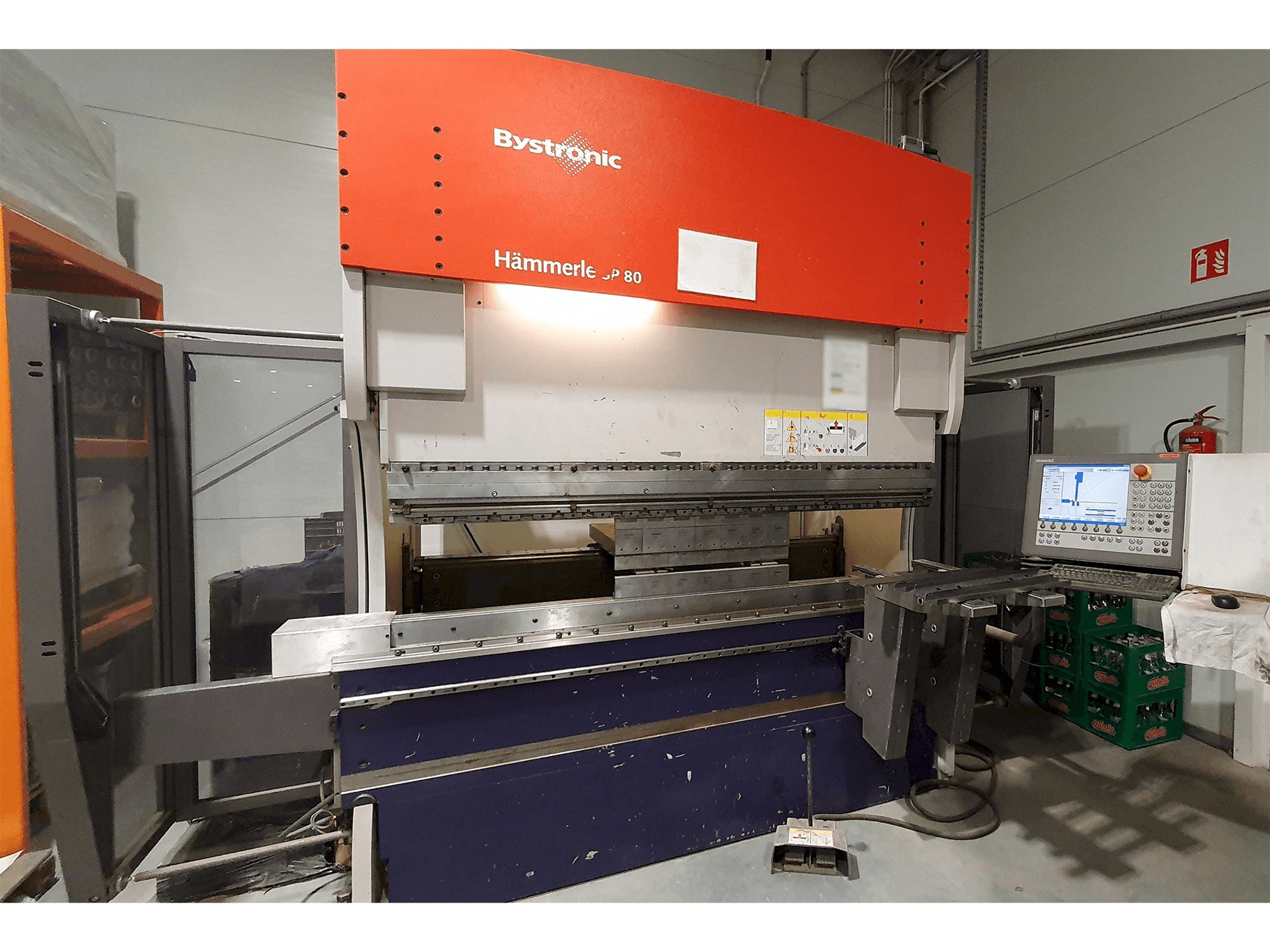

Bystronic 3P 80/210 Bending Machine

Show in original language

This Bystronic 3P 80/210 Bending Machine was manufactured in 2010. It have been working for 9828 hours. This machine offers a pressing force of 800 kN and a bending length of 2100 mm. It is in very good condition, ready for test.

Overview

brand: Bystronic
year: 2010
MODEL: 3P 80/210
production hours: 9828
application type: Bending
Location: Poland
machine type: Press Brake

Technical Information - Bystronic 3P 80/210

Dimensions

Machine Depth: 2531 mm
Machine Height: 2625 mm
Machine Weight: 7800 kg

Technical Specification

Bending Length: 2100 mm

Additional Information

Additional equipment

Hydraulic die clamping
Hydraulic upper tools clamping
Front supports
Some tooling
Lighting
Safety light curtains

Machine Benefits

Qualitative Machine Benefits

Machine in very good, working condition.
Full documentation available.

Technical Machine Benefits

Cnc axes: y1. Y2, x1, x2, z1, z2, r1, r2 + compensation
Pressing force: 800 kn
Daylight: 2200 mm
Installation height: 782 mm
Stroke: 265 mm
Ram thickness: 70 mm
Approach v speed: 150 mm/s
Operating speed: 10 mm/s
Return speed: 150mm/s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
