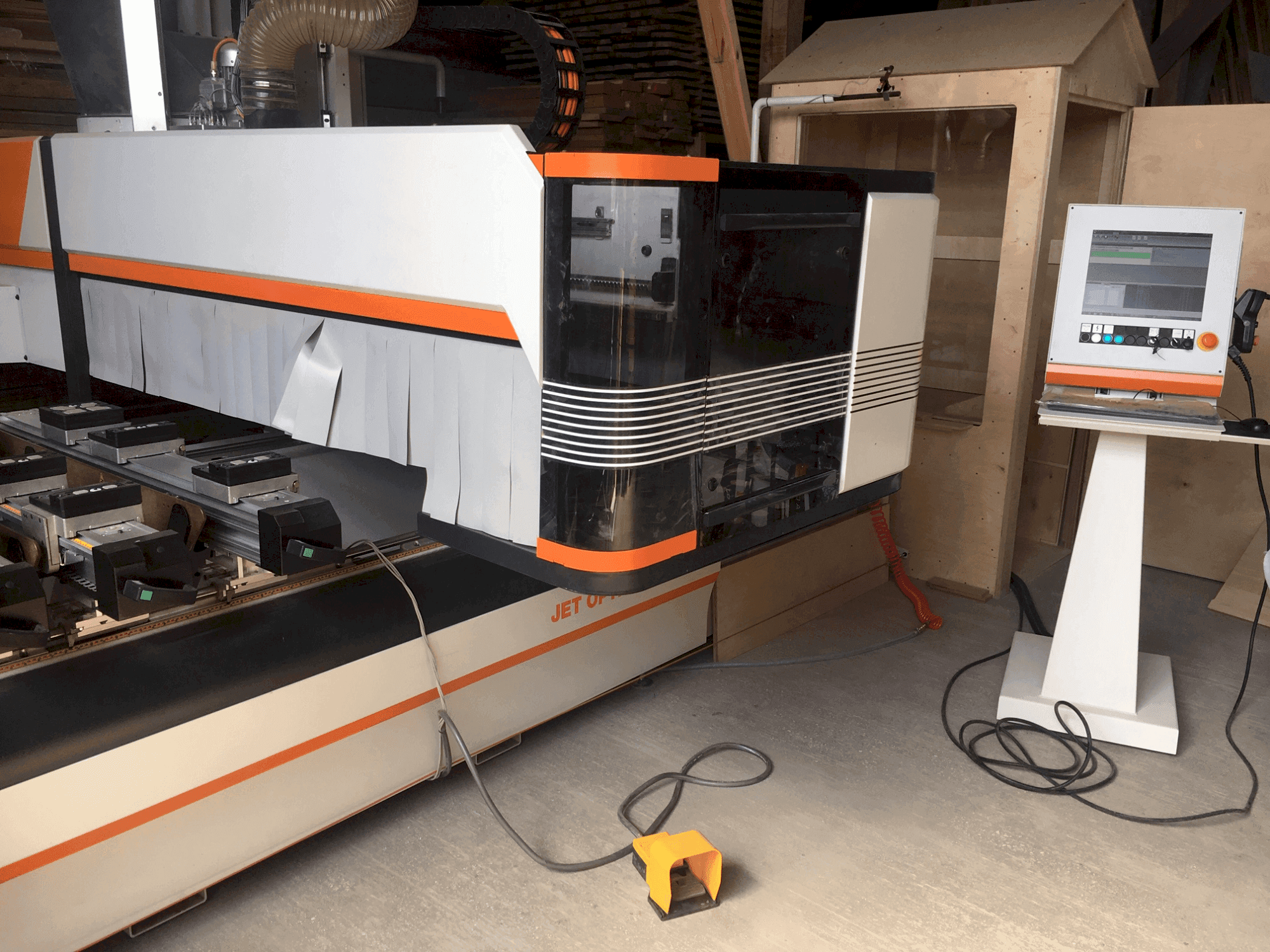

Front view of BUSELLATO Jet Optima T5  machine

BUSELLATO Jet Optima T5

BUSELLATO - Jet Optima T5

2018

Rs. 7,592,950

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Busellato Jet Optima T5 Wood working machine was manufactured in the year 2018. It is equipped with a TPA control unit and has 5 axis.

Overview

  • brand: BUSELLATO
  • year: 2018
  • MODEL: Jet Optima T5
  • application type: Wood Working
  • Location: Hungary
  • machine type: Wood
  • availability: Immediately
  • control unit brand: TPA
  • GINDUMAC ID: HU-WOO-BUS-2018-00001

Technical Information

Control Unit

  • Brand: TPA

Main drive

  • Number of axis: 5

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - The machine's axial z-axis working height is 180mm. Actual axis positional speeds are as follows: x-axis: 70 m/min y-axis: 60 m/min z-axis: 30 m/min
      • - Key features include: integrated cad with reflection, rotation, repetition functions, etc.
      • - The operating system allows real-time control of the machine, automatic control of working speed with route optimization, automatic centralized lubrication system.
      • - Display of 2d and 3d representations of workpieces, circular 12-tool hsk 63 tool magazine.
      • - Parametric programming allowing the use of mathematical, trigonometric, inverse trigonometric, and logical formulas, with 300 variables for executing these formulas.
      • - Viewing and rotation of horizontal and vertical views, automatic reduction of feed speed based on inverter operation.
      • - Simple and multifunctional programming in multiple views, linear 10-tool hsk 63 tool magazine.
      • - Automatic speed control for tool engagement, y-axis movement facilitated by ball screw spindles.
      • - Tool parameter retrieval from the program, x-axis displacement achieved through a convex curved toothed rack and pinion contact.
      • - Higher-level programming (if-end-if) with macros, import of dxf files into ascii format.
    • Qualitative Machine Benefits:
      • - Automatic tool radius correction, drilling head 18m (8x + 5y), 6 horizontal drills (4x - 2y), circular saw: 120 mm.
      • - Toolpath optimization between machining operations, 5-axis "jet 5" water-cooled head with hsk 63 tool clamping, b: +185° to -95°, c: +/- 360°, working area: 3050 x 1250 mm.
      • - Graphic representation of tool library settings, display of spindle speed and aggregate positions.
      • - 2d simulation and software calculating cycle times, controller and diagnostic synopses for easier machine operation.
      • - Printing and graphical printing of programmed workpieces with iso codes, genesis evolution machine control software.
      • - Programs can be easily reviewed using the "preview" function, electro-welded machine frame and moving console with reinforced, ribbed steel alloy plates, especially strengthened at the most loaded points.
      • - Manual and machine diagnostic functions with real-time repair suggestions and graphical assistance.
      • - Graphic assistance during machine programming. , repeating program lists and executing custom programs.
      • - Import of iso text files, "hold" function with safety mat, z-axis movement facilitated by ball screw spindles.
      • - Editing along curves and arcs for character height, spacing, line spacing, and letter spacing, "sc" electrode spindle 11 kw – speed 20,000 rpm hsk, pc console with windows operating system, 17" lcd monitor.

    Extra information

    • - Machine equipment includes: Jet Cad control software. 90 m3/h vacuum pump. Centralized extraction point. 6 "IMC" beams. 6 vacuum cups measuring 80x155 mm. 6 vacuum cups measuring 55x155 mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
