- ➤ Used HUNDEGGER Speed-Cut SC1 - 2003 - For sale

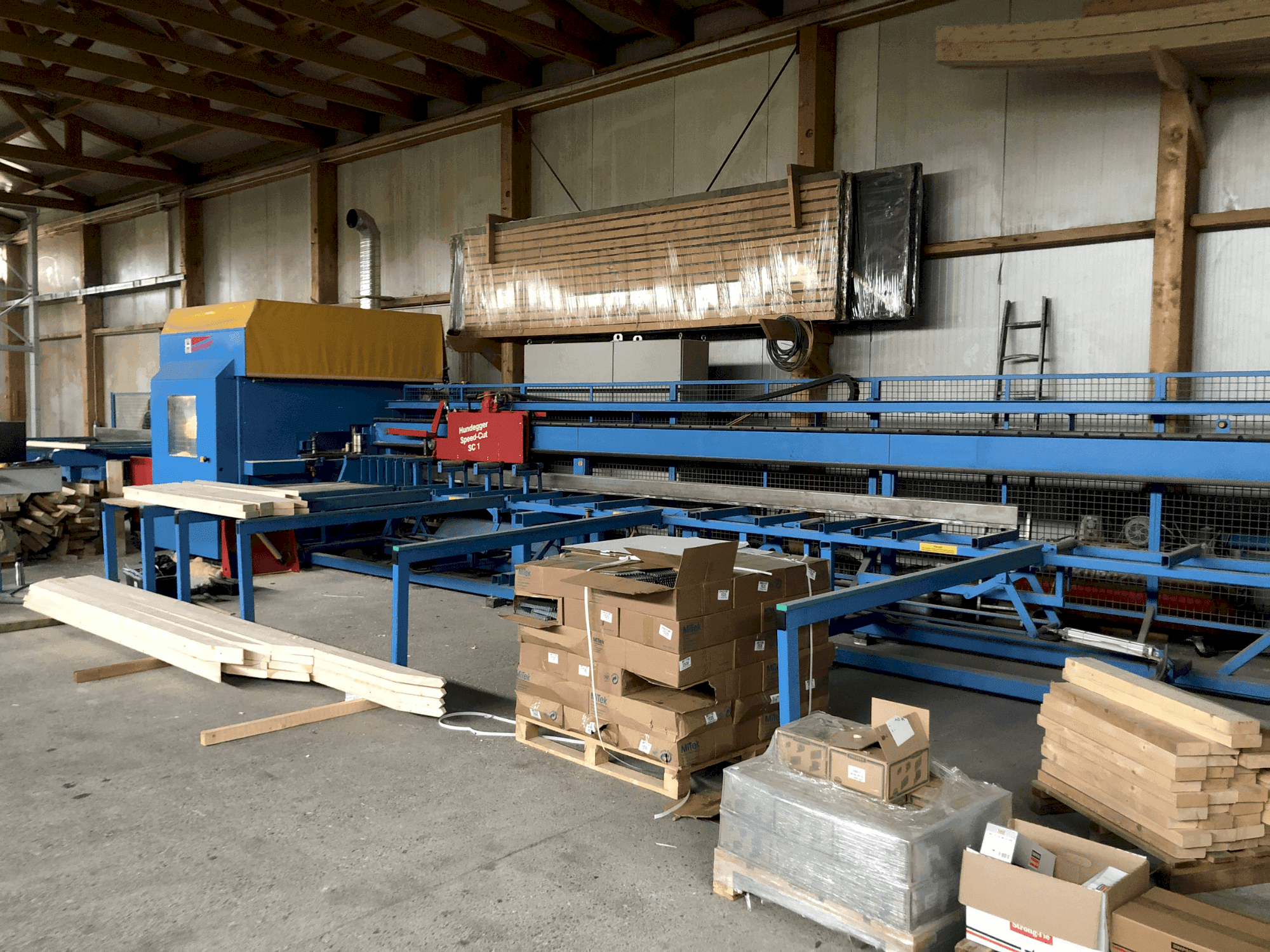

This 4-axis HUNDEGGER Speed-Cut SC1, manufactured in 2003, is a universal machine center that offers advanced wood processing capabilities. It features computerized cutting, drilling, and milling with a maximum cutting height of 160 mm and width of 450 mm. The machine is equipped with a programmable controller for saw blade adjustments and a pneumatic clamping system, ensuring efficient material handling. The robust 4-axis CNC control enhances precision in operations. For more information about this machine center, please reach out to us.
Overview
- brand: HUNDEGGER
- year: 2003
- MODEL: Speed-Cut SC1
- application type: CNC Wood Machining
- Location: Poland
- machine type: CNC Wood Machining Centre
Technical Information - HUNDEGGER Speed-Cut SC1
Dimensions
- Machine Depth: 1680 mm
- Machine Height: 2180 mm
- Machine Weight: 8000 kg
Additional Information
Additional equipment
- 6-armed offload table
- PC + Monitor
- Electrical connection: 3x 63A, max. 15kW
- Pneumatic connection 1/2", 9 bar at least 400l/min
- Main supply line for pneumatics min. 3/4"
Machine Benefits
Qualitative Machine Benefits
- The machine's robust construction and high positioning accuracy of +/- 0. 5 mm ensure high-quality results and precision in woodworking.
- Basic machine with saw station for 90° cross-cut operation
- Angle and tilt drive for the saw station
- 4-strand transverse feeder
- Combination support for vertically operating tools
- Drilling unit 2. 2 kw
- Vertical milling unit 5. 5 kw
- Revolver milling unit 3-fold
- Marking device below
Technical Machine Benefits
- The machine is capable of computerized cutting, drilling, and milling which allows for versatile wood processing.
- It offers a high level of automation with programmable saw blade adjustments and a 4 axes cnc control enhancing precision.
- Features such as a clamp gripper workpiece feed and pneumatic clamping system ensure efficient and secure handling of materials.
- Max cutting height at 90°: 160 mm // max cutting width at 90°: 450 mm
- Capable of processing dimensions from 12 x 40 mm to 160 x 450 mm
- Number of saw blades: 1
- Saw blade tiltable: yes // saw blade adjustment: programmable controller
- Workpiece feed: clamp gripper
- Clamping system: pneumatic
- Positioning accuracy: +/- 0. 5 mm
Extra Information
Machine is currently under power and operational.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
