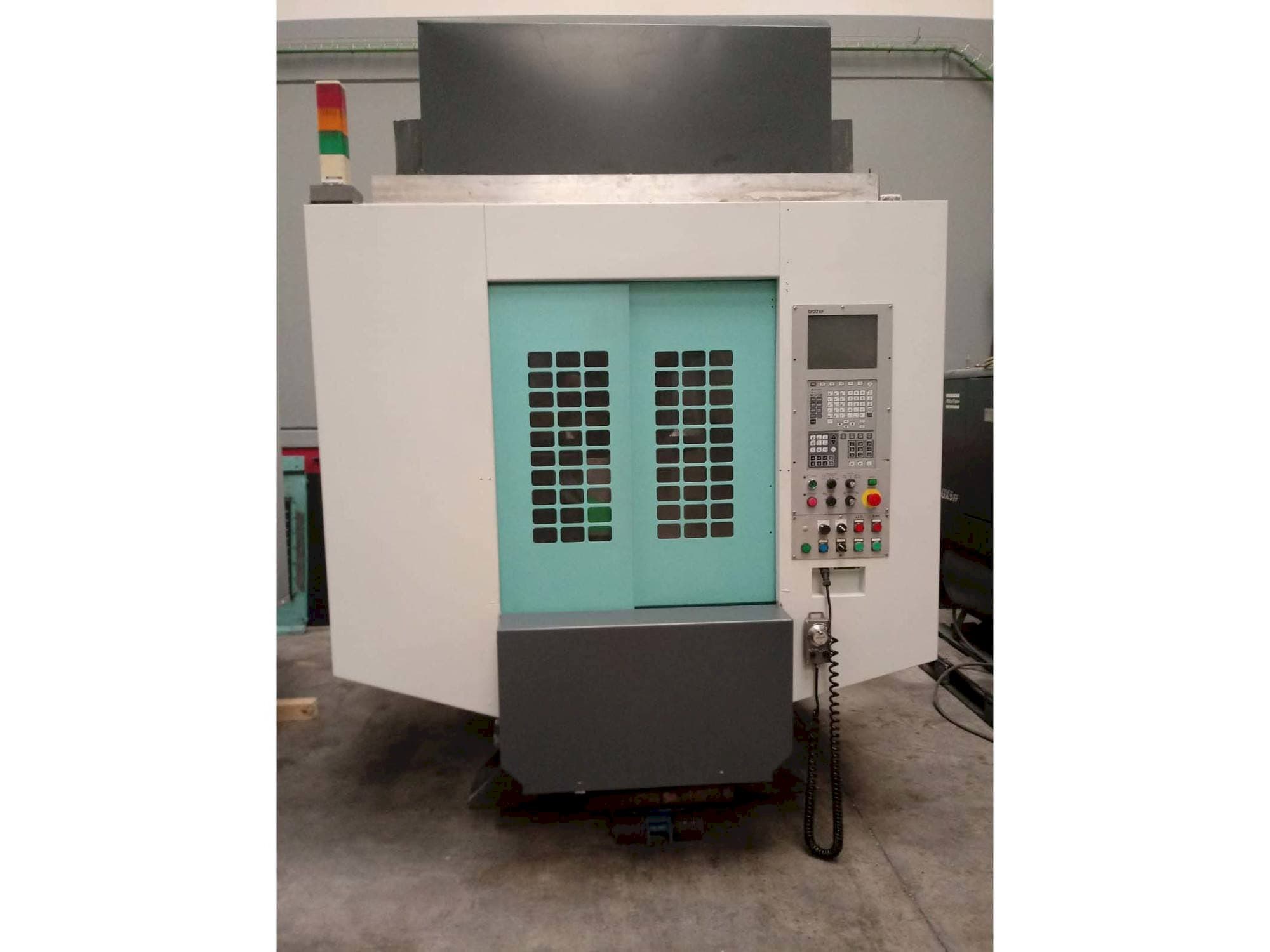

Front view of Brother TC-S2DN-O  machine

Brother TC-S2DN-O

Brother - TC-S2DN-O

2005

Rs. 2,318,750

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Brother TC-S2DN-O Vertical Machining center was manufactured in the year 2005. It is equipped with a BROTHER A00 control unit and has 4 axis. The machine has spindle speed of 16000 rpm.

Overview

  • brand: Brother
  • year: 2005
  • MODEL: TC-S2DN-O
  • application type: Milling
  • Location: Spain
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: BROTHER
  • GINDUMAC ID: ES-MIL-BRO-2005-00001

Technical Information

General Data

  • Machine weight: 2000 Kg

Control Unit

  • Brand: BROTHER
  • Model: A00

Main drive

  • Spindle speed range: 16000 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 700 mm
  • X-AXIS Rapid traverse: 50 m/min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Rapid traverse: 50 m/min
  • Z-AXIS Movement: 320 mm
  • Z-AXIS Rapid traverse: 50 m/min

Table

  • Outer length: 800 mm
  • Outer width: 320 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max tools length : 200 m/m
      • - Maximum table load kg: 400kg
      • - Distance from head to table: 360 mm
      • - Maximum tool weight: 2. 7 kg
      • - Number of tools: 21
      • - Tool change time: 1. 1 sec
      • - Time between chips: 1. 8 sec
      • - Head type bt 30
      • - Air cooling/external drill
      • - 4th axis + rotary joint ddr
    • Qualitative Machine Benefits:
      • - Probe renishaw ts27r
      • - Auto/manual door
      • - Robot interface: yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
