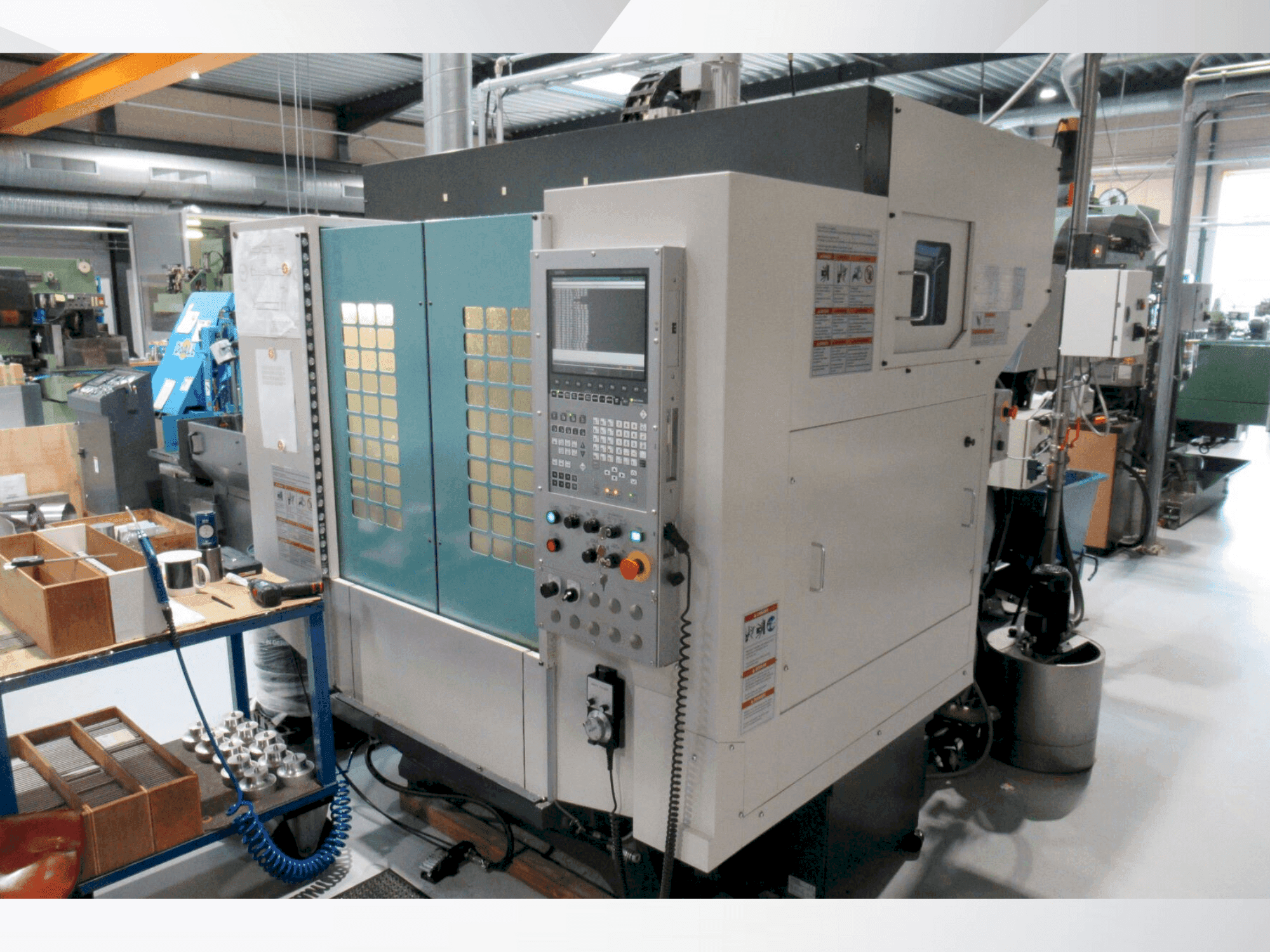

Brother TC-22B-O

Photo Gallery

Brother - TC-22B-ODK-MIL-BRO-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Brother TC-22B-O For Sale | gindumac.com

Show in original language

This 5-axis Brother TC-22B-O vertical machining center was manufactured in 2007. It features a high-speed spindle capable of 16,000 rpm and a robust 70 bar through-spindle coolant system. The machine includes an automatic tool changer with 27+1 tool capacity, enhancing productivity and efficiency. The Brother CNC-B00 control unit ensures precise 5-axis control, table is 1 axis. For more information about this vertical machining center, please reach out to us.

Overview

brand: Brother
year: 2007
MODEL: TC-22B-O
application type: Milling
Location: Denmark
machine type: Vertical Machining Centre
control unit brand: BROTHER

Technical Information - Brother TC-22B-O

Control Unit

Control Brand: BROTHER
Control Model: CNC-B00

Dimensions

Machine Depth: 1496 mm
Machine Height: 2538 mm
Machine Weight: 2780 kg
Table Length: 650 mm
Table Load: 200 kg
Table Width: 850 mm

Movement

Number of Axes: 5

Technical Specification

Spindle Power: 6 kW
Spindle Speed: 16000 RPM
Taper Size: ISO 30

Additional Information

Additional equipment

Internal Cooling: Yes (70 bar Through-Spindle Coolant)
Cooling Pressure: 70 bar
Air Supply: 0.4-0.6 MPa, 180 l/min
Coolant Tank Capacity: 250 L

Machine Benefits

Qualitative Machine Benefits

Precision ball screws, automatic central lubrication, self-diagnosis functions

Technical Machine Benefits

Controlled axes: 5 axes x/y/z – a/b
Simultaneous controlled axes: x/y/z + a or b
High spindle speed, rapid travel speed, high precision, fast tool change time, high-pressure coolant system

Extra Information

Control Cabinet: Sealed and dustproof Power Source (NC/Servo Power): AC 200/220V, +10% -15%, 50 Hz +/- 1 Hz, 8.5 KVA Environmental Conditions: Room temperature 0-45°C, Relative humidity 10-90%, Vibration 0.5 G or less

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
