Bridgeport VMC1000-22 Vertical Machining center

Show in original language

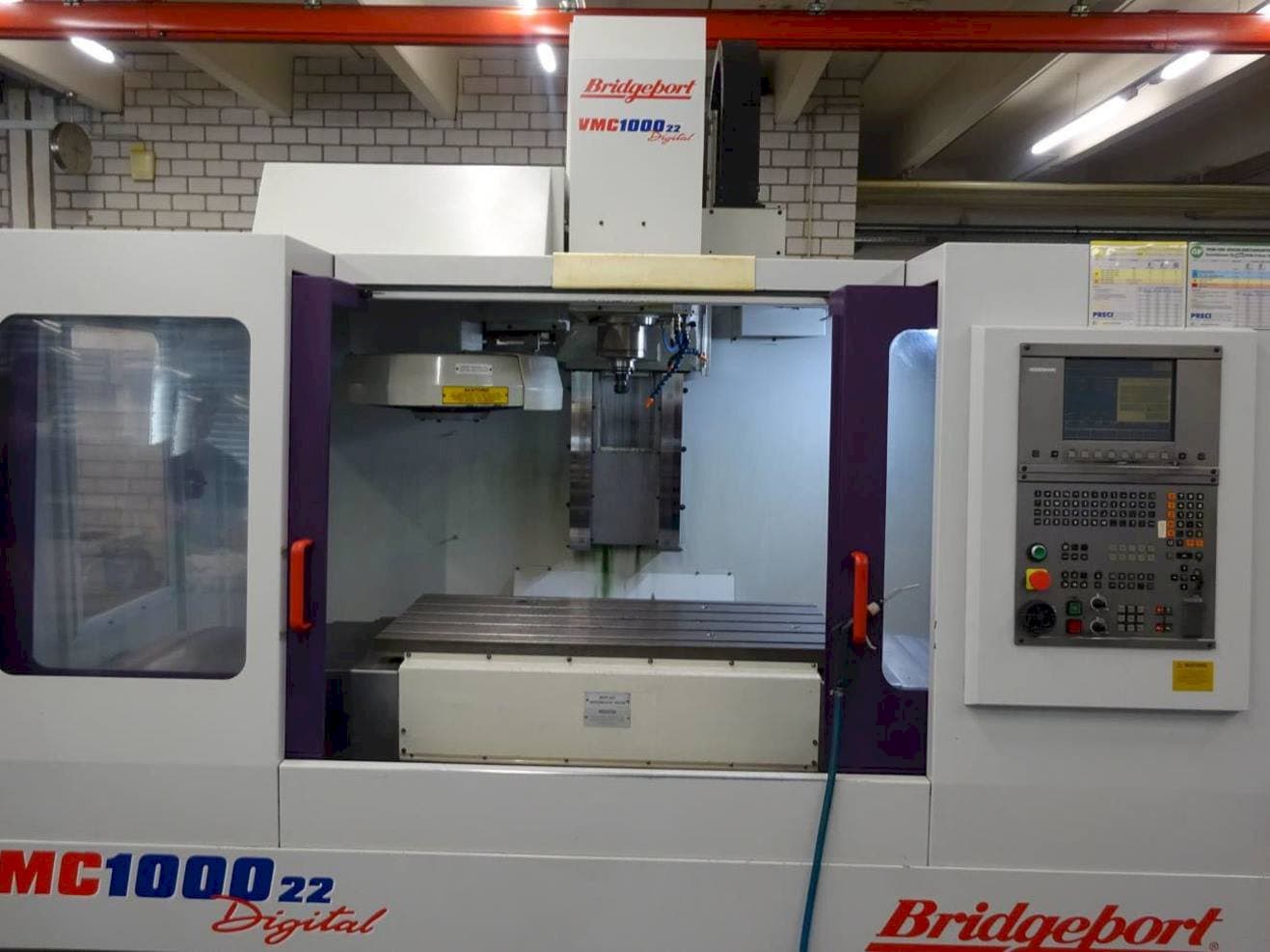

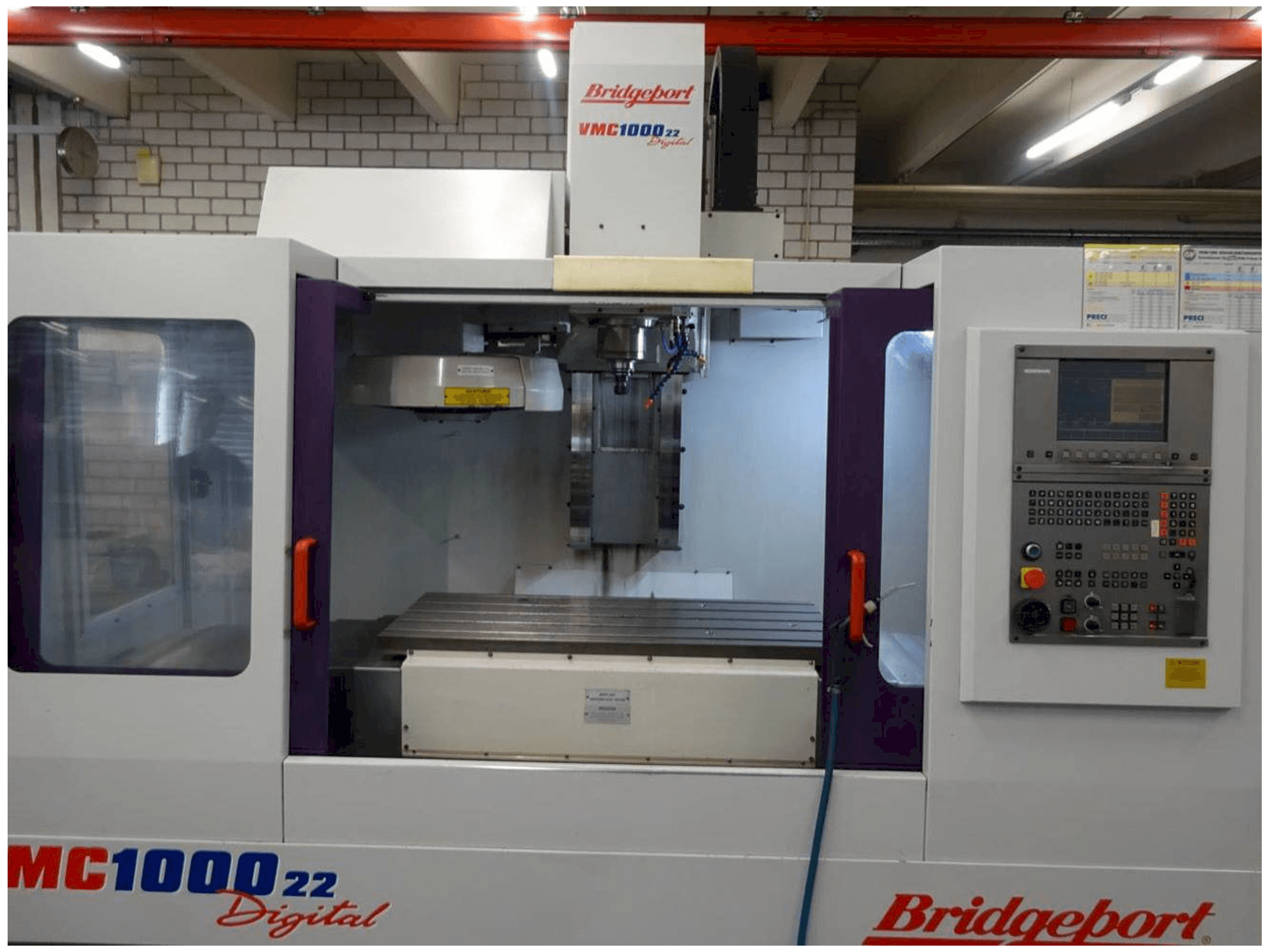

This Bridgeport VMC1000-22 Vertical Machining Center was manufactured in the year 2000 and has 12200 production hours. It is equipped with a HEIDENHAIN TNC 426P control unit and has 5 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: Bridgeport
year: 2000
MODEL: VMC1000-22
production hours: 12200
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: Heidenhain

Technical Information - Bridgeport VMC1000-22

General Data

Machine weight: 3900 kg

Control Unit

Brand: Heidenhain
Model: TNC 426P

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 11 kw
Tool taper: BT 40
Number of axis: 5

Movement

X-AXIS Movement: 1020 mm
X-AXIS Feed Force: 40m/min
Y-AXIS Movement: 510 mm
Y-AXIS Feed Force: 40m/min
Z-AXIS Movement: 600 mm
Z-AXIS Feed Force: 30m/min

Table

Outer length: 1150 mm
Outer width: 49 mm
Distance between: 100 mm
Table load: 900 kg

Tools

Slots in storage: 22
Max weight: 6 kg
Max tool diameter: 75 mm
Max tool length: 250 mm
Type of tool holder: CONE BT 40 / SK40

Additional equipment

- measuring probe included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - The extension of the axes is placed on or removed from the table by the operator as required
- - Lehmann axis included (extension to 4 and 5 axis)
- - V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
