Bridgeport - VMC 500 XPGB-MIL-BRI-2002-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Bridgeport VMC 500 XP Vertical Machining Center

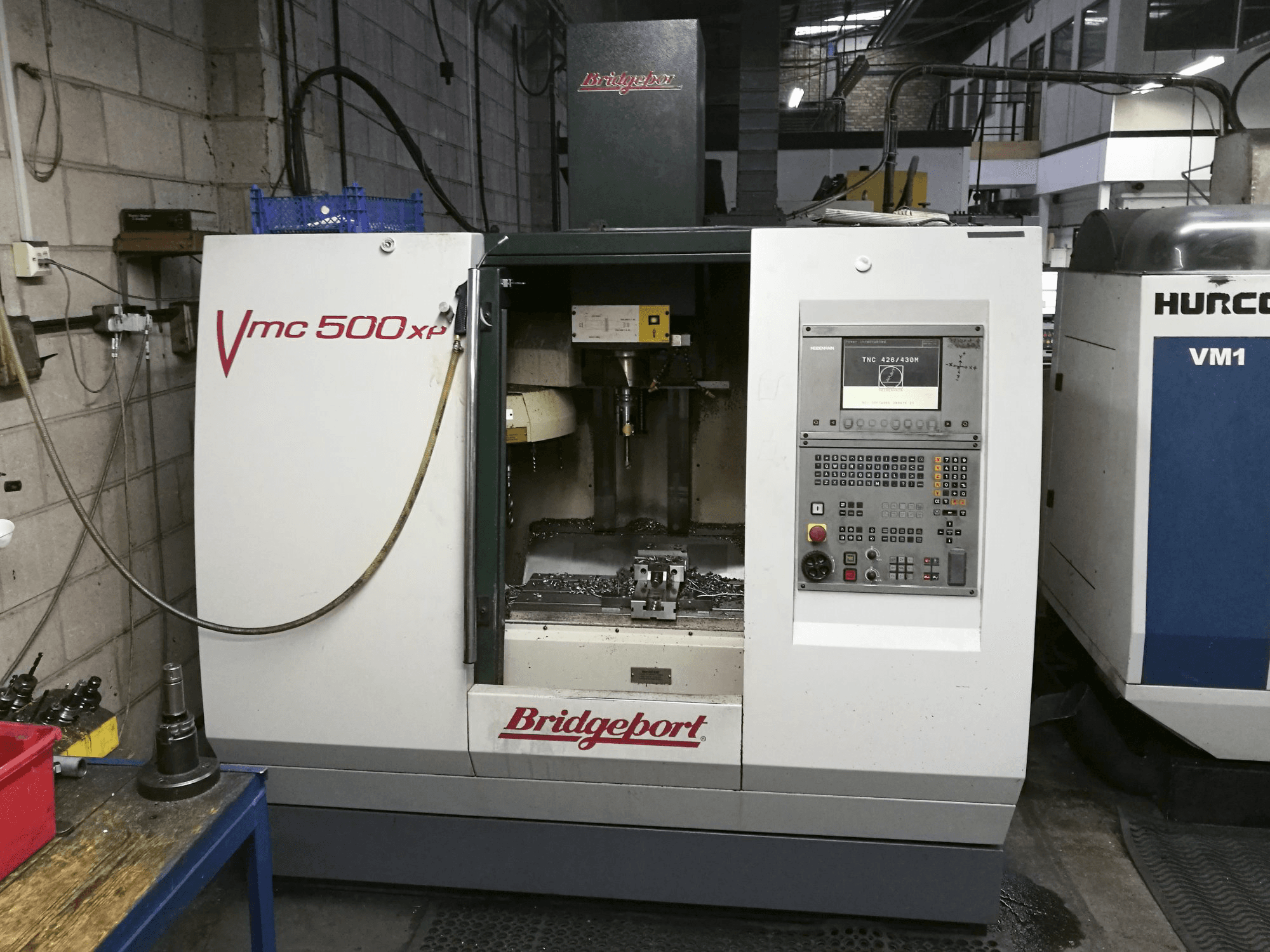

This Bridgeport VMC 500 XP Vertical Machining Center from 2002 is operated through a HEIDENHAIN TNC 426/430M Control unit. In a perfect condition, the equipment comes with an incorporated 16x tool changer.
Overview
- brand: Bridgeport
- year: 2002
- MODEL: VMC 500 XP
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - Bridgeport VMC 500 XP
General Data
- Measurements width: 2300 mm
- Measurements depth: 2100 mm
- Measurements height: 2290 mm
- Machine weight: 2600 kg
Control Unit
- Model: TNC 426/430M
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/min
- Spindle motor power: 10 kW
- Tool taper: BT40
- Working current: 20 A
Movement
- X-AXIS Movement: 500 mm
- X-AXIS Rapid traverse: 43 m
- Y-AXIS Movement: 340 mm
- Y-AXIS Rapid traverse: 43 m
- Z-AXIS Movement: 520 mm
- Z-AXIS Rapid traverse: 20 m
Workpiece
- Workpiece weight: 500 kg
Table
- Outer length: 840 mm
- Outer width: 360 mm
- Number of tslots: 3
Tools
- Slots in storage: 16
Media
- Main electronic connection: 420 V / 50 Hz
- Power consumption: 15 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
