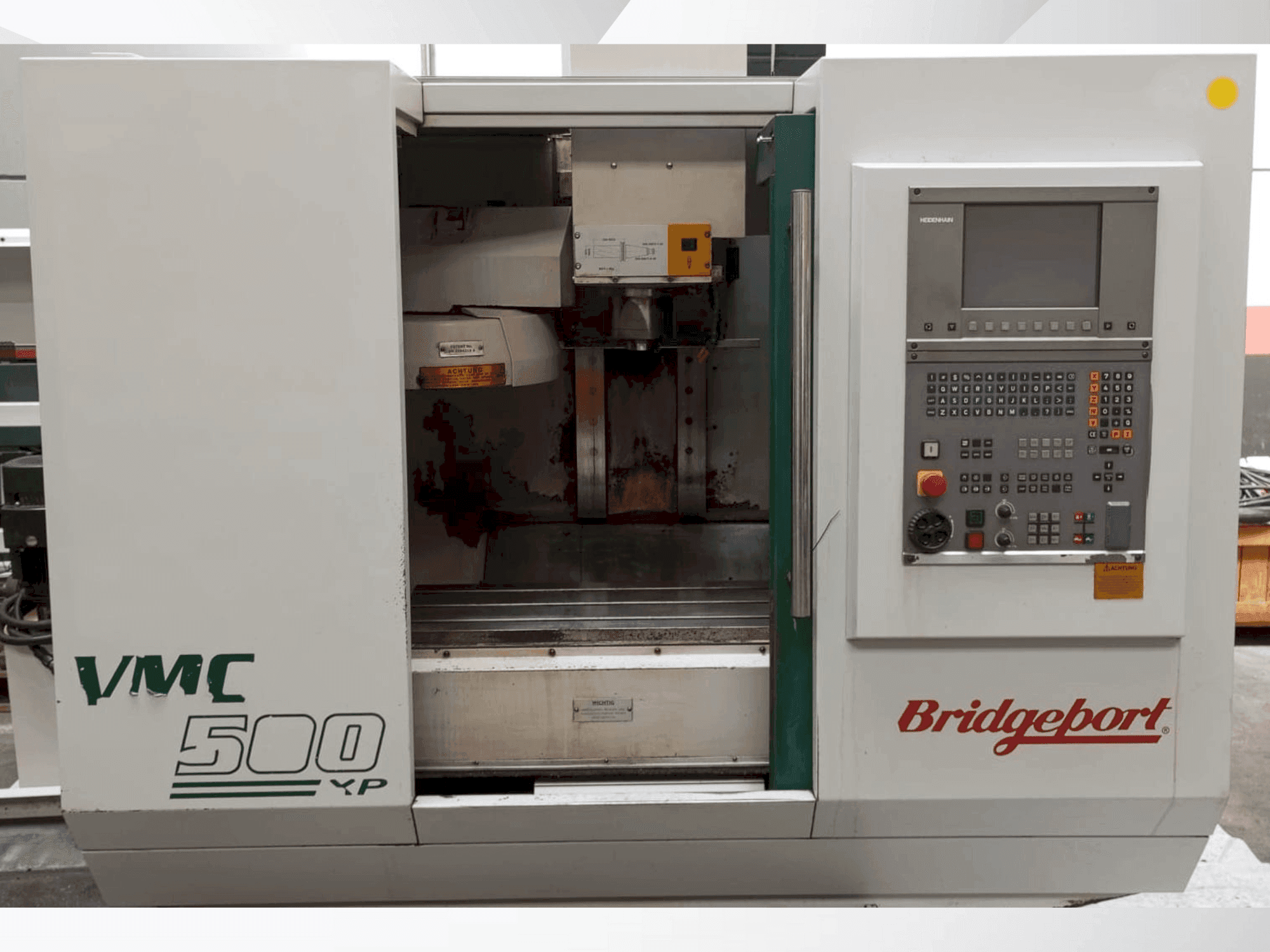

Front view of Bridgeport VMC 500 XP  machine

Bridgeport VMC 500 XP

Bridgeport - VMC 500 XP

2001

Rs. 1,676,600

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis vertical machining centre was manufactured in 2001. The Bridgeport VMC 500 XP, controlled by the HEIDENHAIN TNC 410M, offers capacities well-suited for precise and efficient machining with spindle speeds ranging from 40 to 7000 rpm. Its dimensions include a 500 mm travel on X-axis with rapid traverse of 32 m/min, a 340 mm travel on Y-axis, and a 520 mm travel on the Z-axis. The tool changer can hold 18 tools, facilitating minimal downtime and maximum productivity. Contact us for further details.

Overview

  • brand: Bridgeport
  • year: 2001
  • MODEL: VMC 500 XP
  • application type: Milling
  • Location: Spain
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Heidenhain
  • GINDUMAC ID: ES-MIL-BRI-2001-00001

Technical Information

General Data

  • Machine weight: 2500 kg

Control Unit

  • Brand: Heidenhain
  • Model: TNC 410 M

Main drive

  • Number of spindles: 1
  • Spindle speed range: 7000 1/MIN
  • Spindle motor power: 10 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 500 mm
  • X-AXIS Rapid traverse: 32 M/MIN
  • Y-AXIS Movement: 340 mm
  • Y-AXIS Rapid traverse: 20 M/MIN
  • Z-AXIS Movement: 520 mm
  • Z-AXIS Rapid traverse: 20 M/MIN

Table

  • Outer length: 840 MM
  • Outer width: 360 MM

Tools

  • Number of index: 18
  • Type of tool holder: SK40

    Additional equipment

    • - Tool changer for 18 tools
    • - Rigid tapping (synchronized tapping)
    • - Automatic tool changer
    • - High dynamic digital drives // High-load profiled feeders in the X/Y axis, precision flat feeders in the Z axis
    • - Electronic handwheel, switchable for X, Y, Z axis
    • - Working area fully protected and electrically secured
    • - Working area low voltage light
    • - Coolant system with high delivery rate
    • - Two-color painting: light gray/moss green RAL 7035/6005
    • - Pre- and fine-filter system, 25 μ

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Acceleration: 4. 6 m/s²
        • - Comfortable equipment
        • - Central control panel for machine and cnc control
      • Qualitative Machine Benefits:
        • - Working area low voltage light
        • - Coolant system with high delivery rate

      Extra information

      • - Machine is not under power Working area fully protected and electrically secured

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
