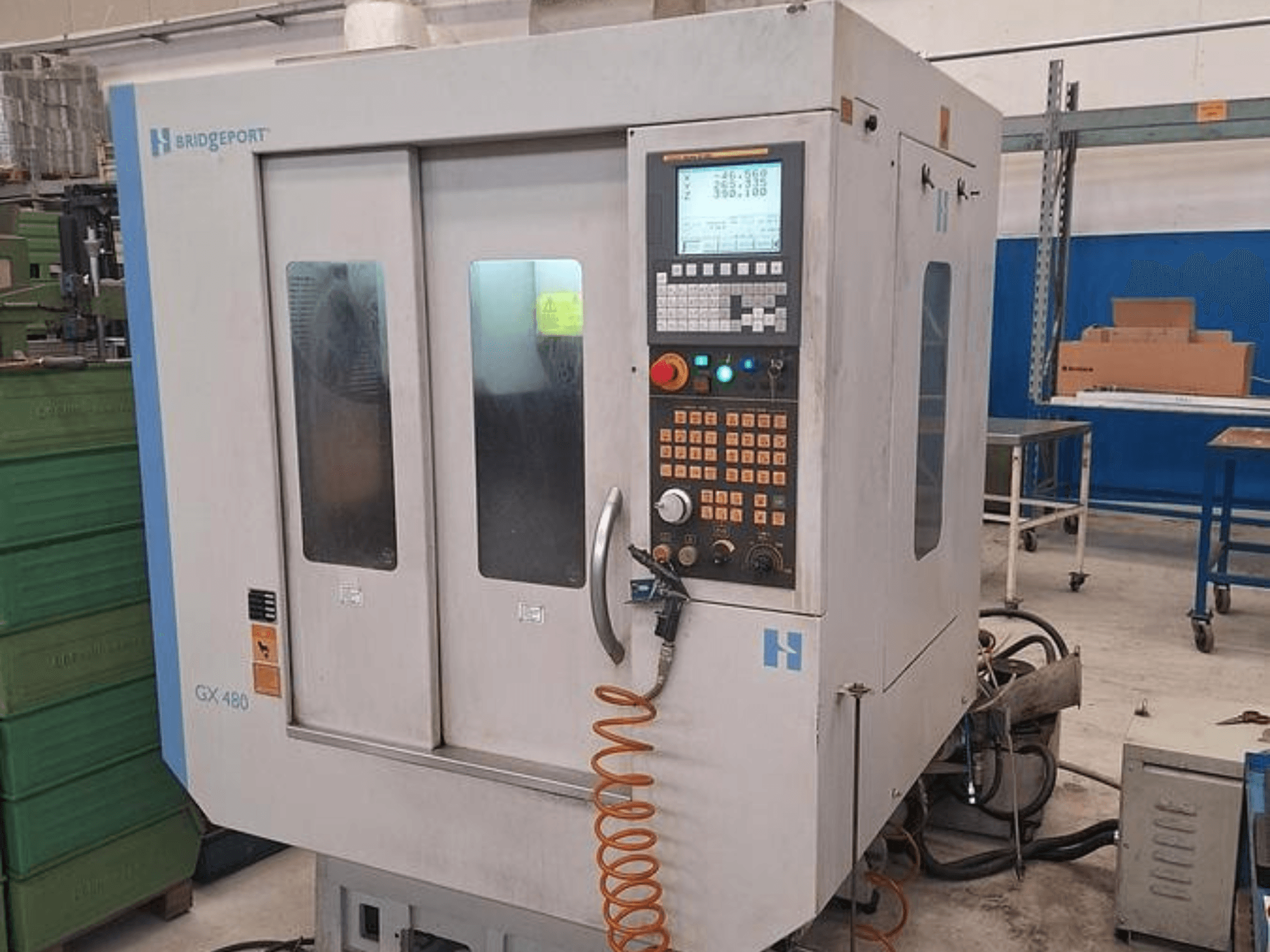

This 3-axis Bridgeport GX 480 was manufactured in 2009. It features an X-axis travel of 480 mm, Y-axis travel of 400 mm, and Z-axis travel of 430 mm. The machine includes a robust table size of 600 x 400 mm and a maximum table load of 300 kg. If you are looking to get high-quality machining capabilities, consider the Bridgeport GX 480 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Bridgeport
- year: 2009
- MODEL: GX 480
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Bridgeport GX 480
Control Unit
- Control Brand: FANUC
- Control Model: 0i-MC
Dimensions
- Machine Height: 2323 mm
- Machine Length: 2168 mm
- Machine Weight: 2820 kg
- Machine Width: 1767 mm
- Table Load: 300 kg
Movement
- Number of Axes: 3
- X-axis Travel: 480 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 430 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Number of Tools: 20
- Spindle Power: 7.5 kW
- Spindle Speed: 10000 RPM
- Taper Size: BT 40
Additional Information
Table size: 600 x 400 mm
Spindle nose to table: 150–580 mm
T-slots: 3 x 125 mm
Rapid traverse (X/Y/Z): 36 m/min
Working feed: 12 m/min
Tool magazine: 20 positions (carousel), random bi-directional (shortest path)
Max tool diameter (adjacent/free): 94 / 130 mm
Max tool length: 250 mm
Chip-to-chip time: 5.5 s
Additional equipment
Cooling system: 20 bar high pressure
Tank wash: included
Chip conveyor: screw type
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
