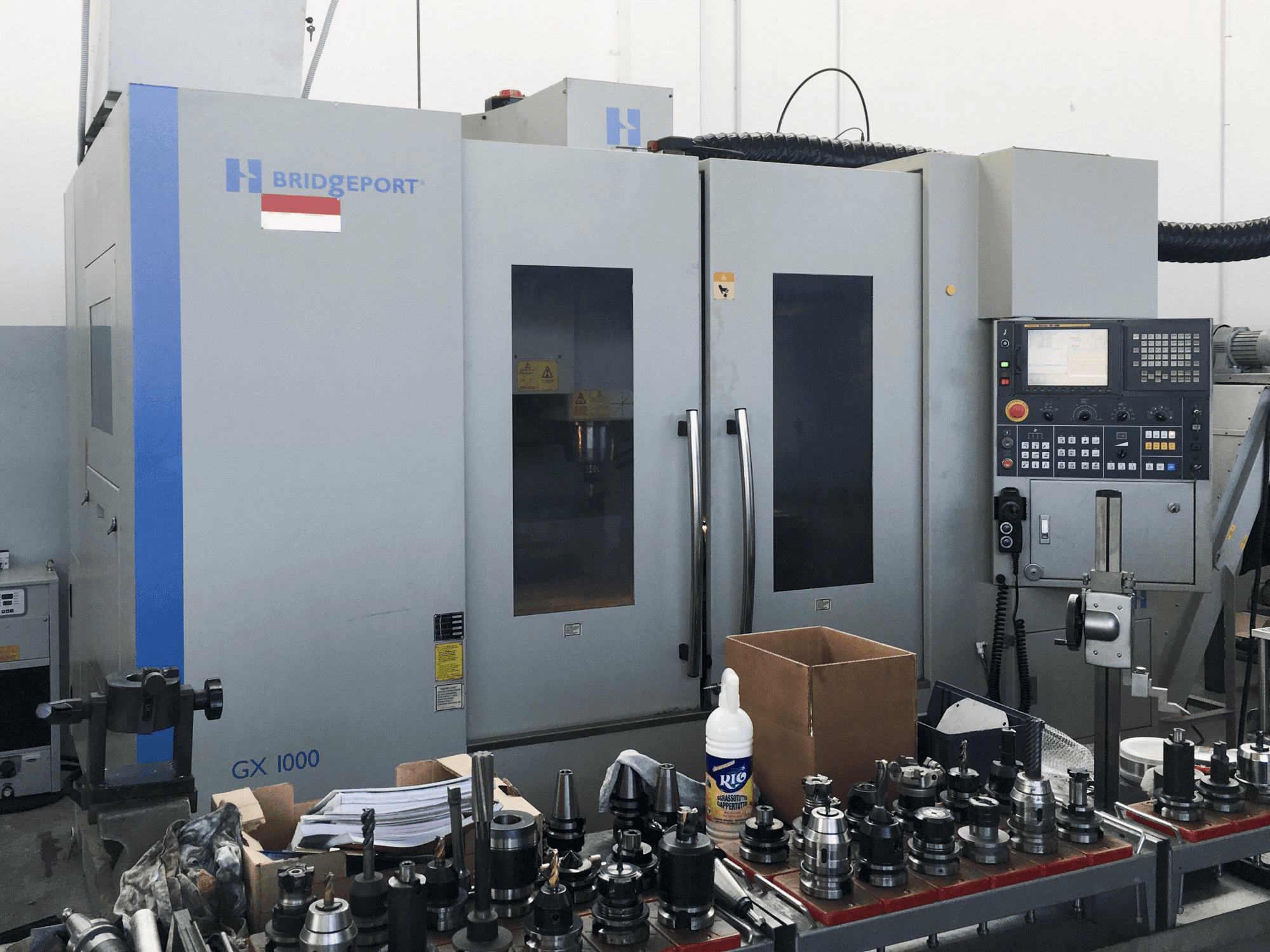

Bridgeport GX 1000 Machining Center

Show in original language

This Bridgeport GX 1000 Machining Center was manufactured in Taiwan in 2007 and has a working record of 11771 production hours ever since. Operated through a FANUC 18i-MB control unit, in the past this machine has handled mostly aluminium.

Overview

brand: Bridgeport
year: 2007
MODEL: GX 1000
production hours: 11771
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Bridgeport GX 1000

General Data

Measurements width: 4210.9 mm
Measurements depth: 2137 mm
Measurements height: 2712.7 mm
Machine weight: 7170 kg

Control Unit

Model: 18i-MB
Brand: FANUC

Main drive

Spindle speed range: 12000 1/min
Spindle motor power: 26 kW

Movement

X-AXIS Movement: 1020 mm
X-AXIS Working Feed: 10 m/min
X-AXIS Feed Force: 36 m/min
Y-AXIS Movement: 540 mm
Z-AXIS Movement: 490 mm

Workpiece

Workpiece weight: 700 kg

Table

Min distance between vertical spindle and table: 145 mm
Max distance between vertical spindle and table: 685 mm

Tools

Slots in storage: 30
Max weight: 6 kg
Max tool diameter: 76 mm
Max tool length: 300 mm

Media

Main electronic connection: 220 V / 60 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
