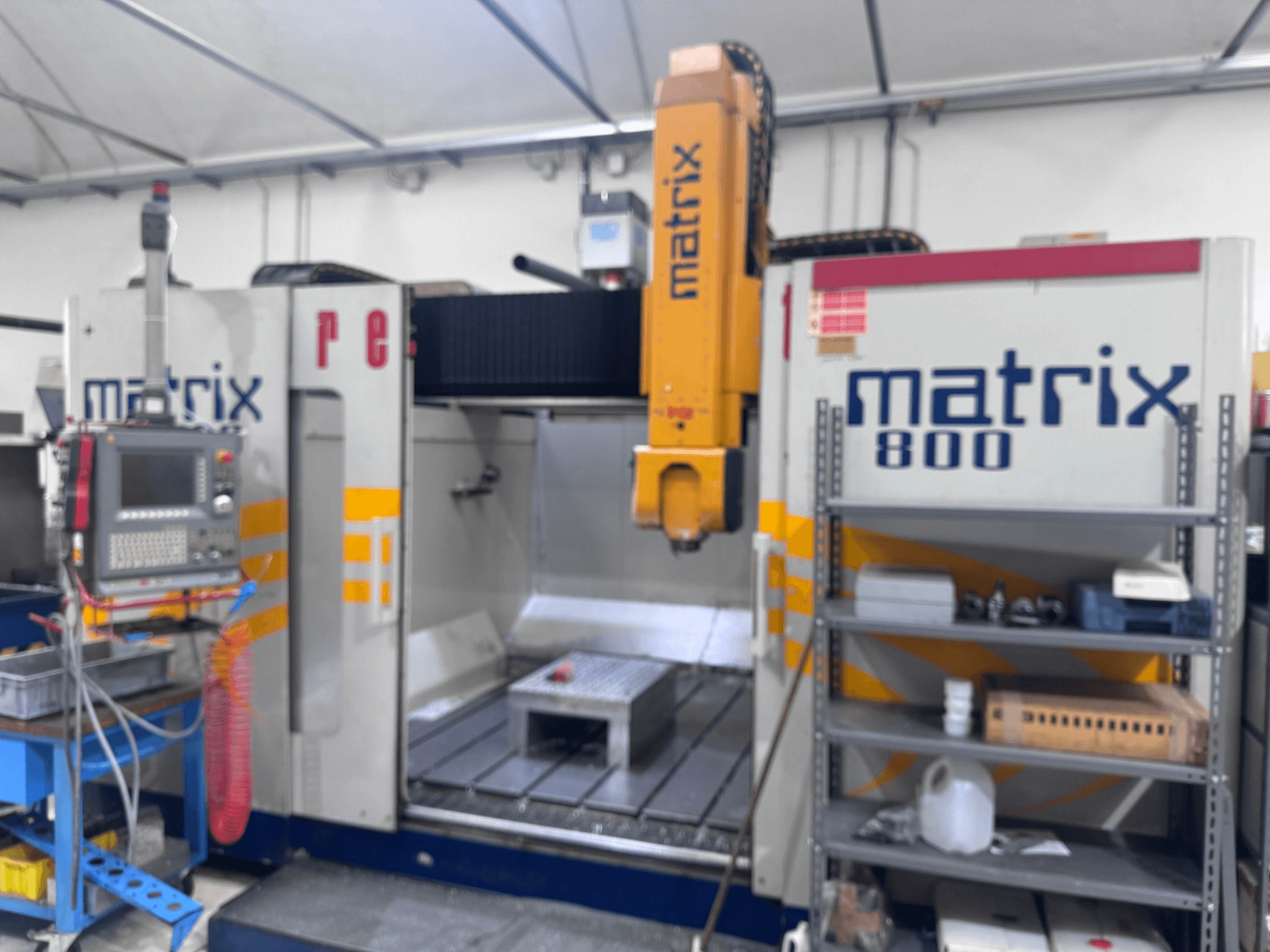

Breton - Matrix k16IT-MIL-BRE-2002-00001

Working area:

• With vertical spindle (Y / X / Z): 2000 × 1600 × 800 mm

• With horizontal spindle (Y / X / Z): 1600 × 1200 × 800 mm

Axis travels:

• C: 0° – 360° continuous

• A: ±105°

Speeds:

• Rapid traverse X/Y: 40 m/min

• Rapid traverse Z: 20 m/min

• C axis: 19.5 rpm

• A axis: 12 rpm

• Acceleration X/Y/Z: 2.5 m/s²

Spindle (electrospindle):

• Tool holder: HSK A63 / E63

• Max torque: 38 Nm

• Max speed: up to 24,000 rpm

Tool magazine:

• Capacity: 30 positions

• Max tool diameter: 140 mm

• Max tool length:

  • 200 mm (Ø 140 mm)

  • 300 mm (Ø 90 mm)

• Max tool weight:

  • 15 kg at 16,000 rpm

  • 12 kg at 24,000 rpm
