BRANDT - KDF 560ES-EDG-BRA-2004-00001
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used BRANDT KDF 560 - Edgebander For Sale | gindumac.com

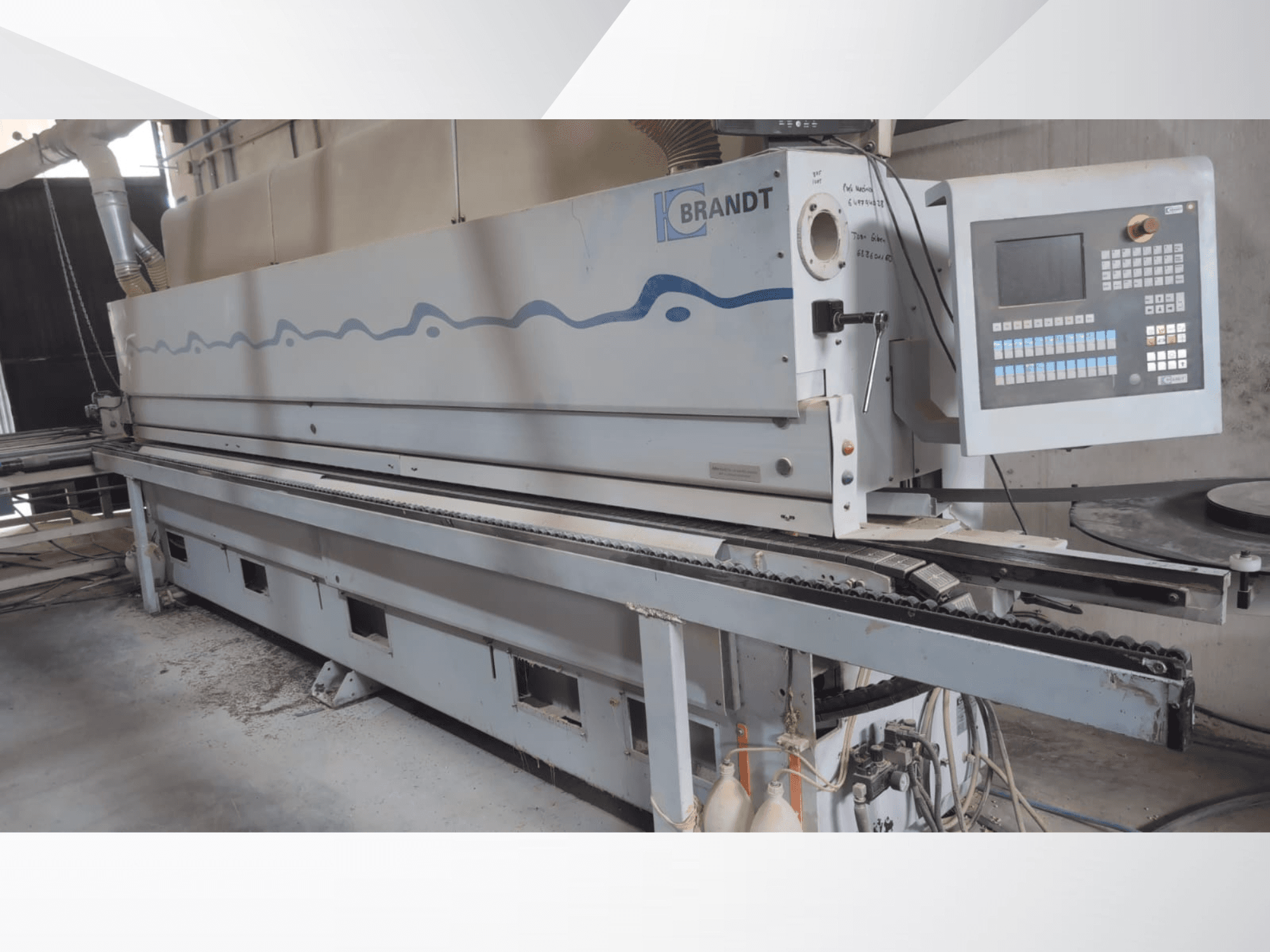

Edgebander manufactured in 2004. This BRANDT KDF 560 features automatic unit adjustment via PC control and is suitable for thin and thick edging, accommodating edge thicknesses from 0.4 to 8 mm and workpiece heights of 8 to 50 mm. It includes various installed units such as a pre-milling unit, glue application unit, and polishing units. If you are looking to get high-quality edging capabilities, consider the BRANDT KDF 560 machine we have for sale. Contact us for further details.
Overview
- brand: BRANDT
- year: 2004
- MODEL: KDF 560
- application type: Edge Banding
- Location: Spain
- machine type: Edgebander
Additional Information
Type of drive: 400 V / 50 Hz / 3-phase
Main electronic connection: 400 V / 50 Hz / 3-phase
Power consumption: 13.2 kW
Used edge banding machine
Year of manufacture: 2004
Fuse rating: 35 A
Automatic unit adjustment via PC control
Suitable for thin and thick edging (ABS, PVC, veneer, and solid wood edging)
Edge thickness: approx. 0.4 to 8 mm
Workpiece height: approx. 8 to 50 mm
Pre-milling unit
Glue application unit (hot melt)
Pressure zone with pressure rollers
Crosscut saw
Flush/radius milling units (top and bottom)
Corner rounding unit
Radius scraper
Glue scraper
Polishing units
The technical data and descriptions are copies of the original order confirmation
The information is provided for informational purposes only and is not binding
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
