BOEHRINGER - DUC 560DE-TUR-BOE-1995-00001
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/Alessandro_Martini.png)
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Machine Tools
- BOEHRINGER DUC 560 Lathe

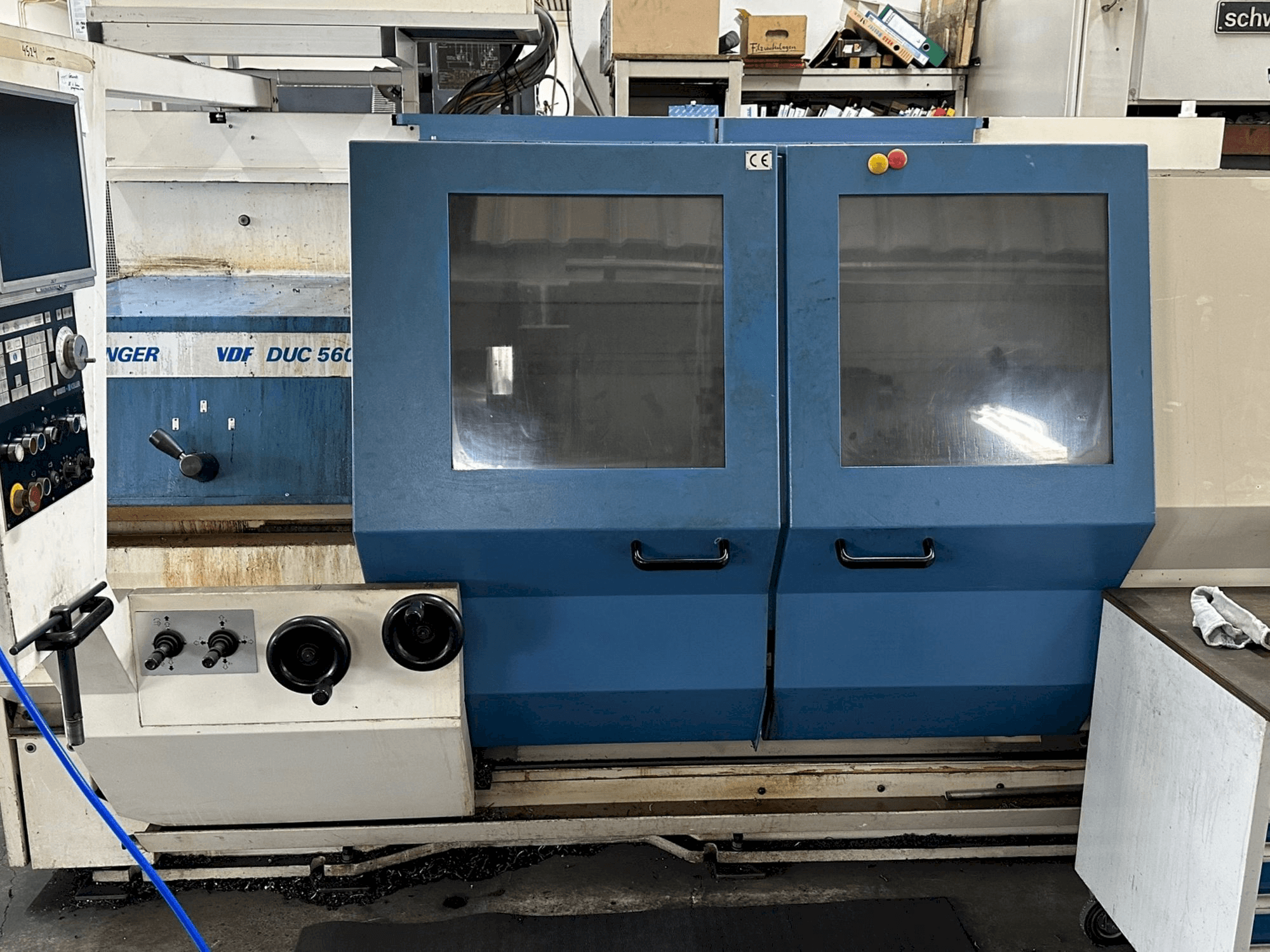

This BOEHRINGER DUC 560 Lathe was manufactured in the year 1995. It is equipped with a NUM+KELLER CNC PLUS control unit. The machine has a spindle speed of 3-2500 rpm.
Overview
- brand: BOEHRINGER
- year: 1995
- MODEL: DUC 560
- application type: Turning
- Location: Germany
- machine type: Lathe
- availability: Sold
- control unit brand: NUM+KELLER
Technical Information - BOEHRINGER DUC 560
Control Unit
- Brand: NUM+KELLER
- Model: CNC PLUS
Main drive
- Spindle speed range: 3-2500 1/MIN
Additional Information
- Technical Machine Benefits:
- - Swing diameter over bed: 570 mm
- - Swing diameter over face slide: 365 mm
- - Displacement path of the facing slide: 345 mm
- - Center height above flat track: 280 mm
- - Bed width: 360mm
- - Bed slide guide length: 520 mm
- - Facing slide width: 225 mm, facing slide length: 680 mm
- - Turning tool cross section raised according to din 770: max. 20 x 20 mm
- - Spindle head according to din 55 027: 8 sizes.
- - Spindle diameter in front bearing: 100 0 mm
- Qualitative Machine Benefits:
- - Spindle bore: 62 0 mm, inner taper of the main spindle: 70 metres.
- - Infinitely variable three-phase motor (ac motor): 0-120
- - Drive power 60%/100%ed: 19/15 kw, torque max. 60%/100% ed: 1800/1400 nm
- - Gear stages: 2, feed control %
- - Constant cutting speed: 1-9999 m/min
- - Speed influence: 50-120%, load display in % on the screen: 0-140%
- - Three-phase servo drives (ac motor)
- - Feed range flat and longitudinal: 0. 01-50 mm/rev, feed force longitudinal: 12500 n
- - Max. Feed speed plan (rapid traverse): 5 m/min, conventional elbow travel lengthwise: 5 m/min
- - Conventional eaves plan: 2. 5 m/min, max feed speed longitudinal (rapid traverse): 10 m/min
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
