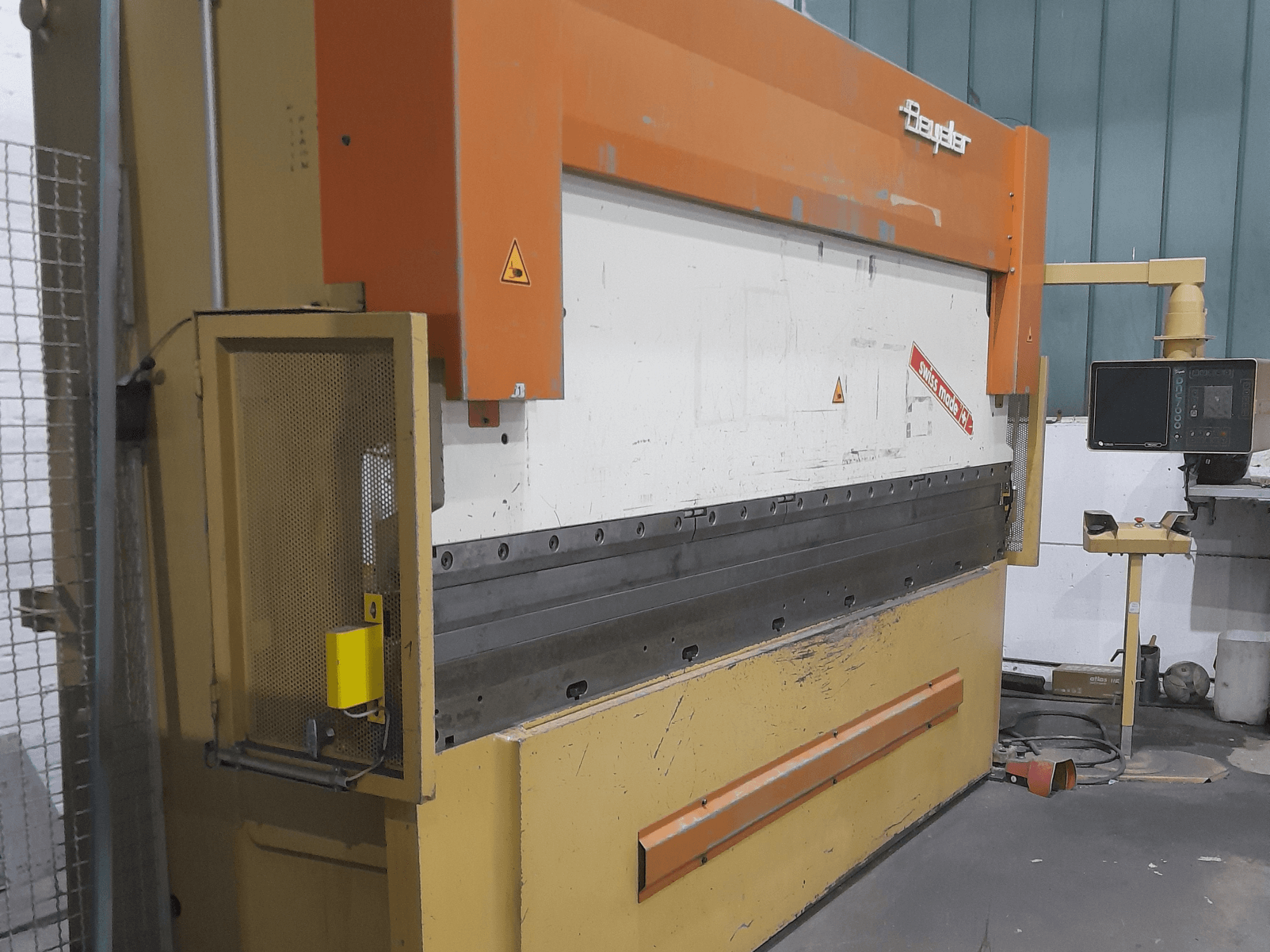

This 4-axis BEYELER RT125x3600 was manufactured in 1985. It features a pressing force of 1250 kN and a bending length of 3600 mm, providing robust capabilities for various bending applications. The machine includes a CYBELEC DNC 7000 Graphic control unit for enhanced operation. If you are looking to get high-quality bending capabilities, consider the BEYELER RT125x3600 press brake we have for sale. Contact us for further details.
Overview
- brand: BEYELER
- year: 1985
- MODEL: RT125x3600
- application type: Bending
- Location: Germany
- machine type: Press Brake
Technical Information - BEYELER RT125x3600
Movement
- Number of Axes: 3
Technical Specification
- Bending Length: 3600 mm
- Max. Stroke: 150 mm
- Pressing Force: 1250 Kn
Additional Information
Distance between uprights: 3100 mm
Total width of beam: 3790 mm
Throat depth: 380 mm
Installation height: 1400 mm
Control unit: Cybelec DNC 7000 Graphic (CRT display)
Number of axes: 3 (Y1, Y2, X); R-axis manual
Foundation depth: 250 mm (underfloor table portion)
Total depth: 2100 mm (Short X) / 2600 mm (Long X)
Operational status: Machine currently in operation
Additional equipment
Included tooling: Multi-segmented die bed and various top punch segments
Material supports: 2 removable support arms (orange)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
