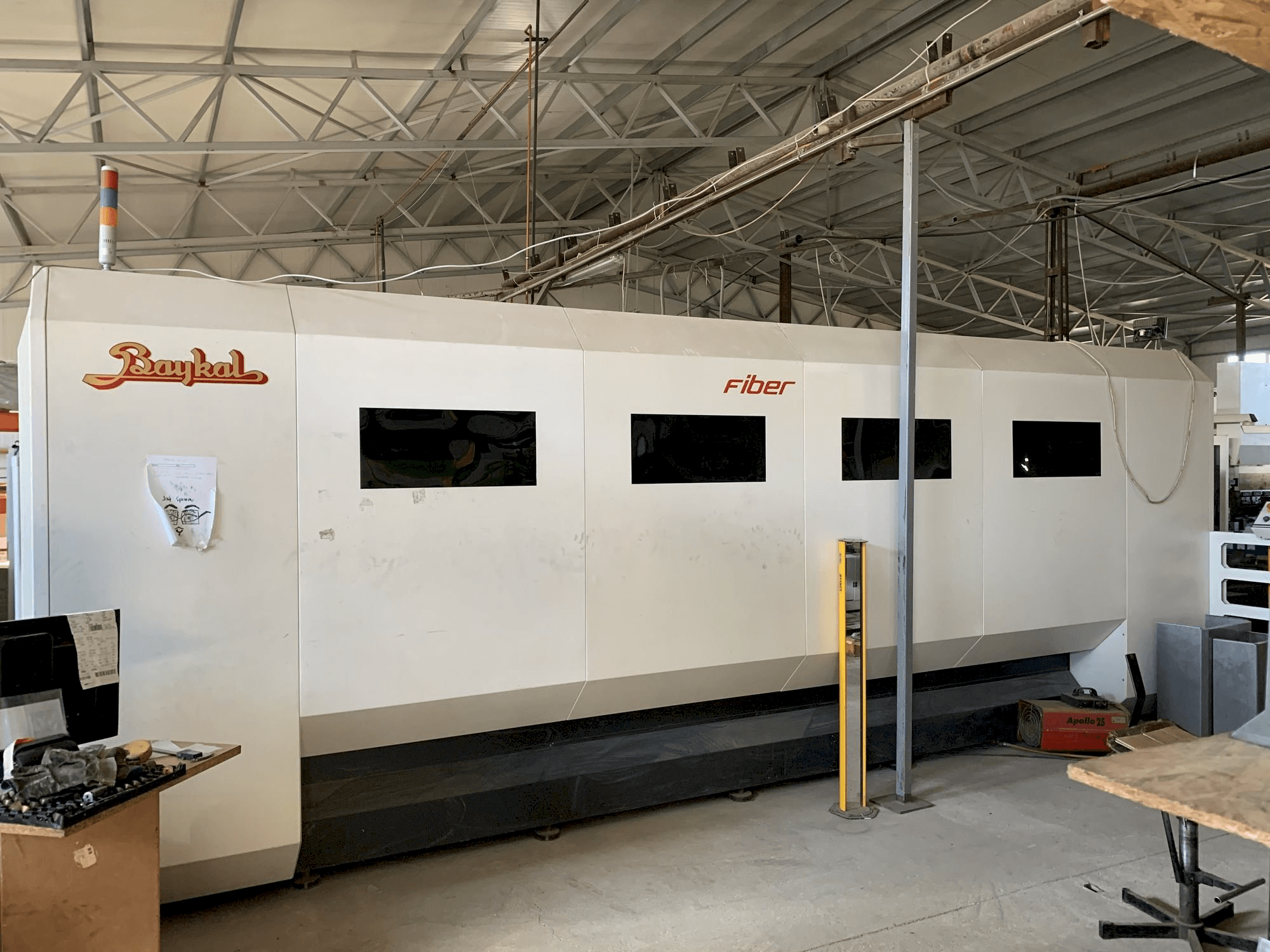

Baykal BLS-NL 1530 2kW Fiber Laser cutting machine

Show in original language

This Baykal BLS-NL 1530 2kW Fiber laser cutting machines was manufactured in the year 2015 in Turkiye. It is equipped with SIEMENS Sinumerik 840D control unit. The machine has a laser power of 2kW.

Overview

brand: Baykal
year: 2015
MODEL: BLS-NL 1530 2kW
application type: Cutting
Location: Hungary
machine type: Fiber Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - Baykal BLS-NL 1530 2kW

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D

Dimensions

Machine Depth: 10500 mm
Machine Height: 2250 mm
Machine Weight: 16800 kg
Table Length: 1525 mm
Table Width: 3050 mm

Movement

Z-axis Travel: 100 mm

Technical Specification

Laser Power: 2 kW

Additional Information

Machine Benefits

Technical Machine Benefits

Oil tank capacity: 140 lt
Cutting thickness range (ms): 15 mm , (ss) 8 mm, (al) 6 mm
Table load capacity: 2450 kg
Max. Cutting width: 1500 mm
Max. Cutting length: 3000 mm
Wavelength: 1080nm
Power stability: 5000 hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
