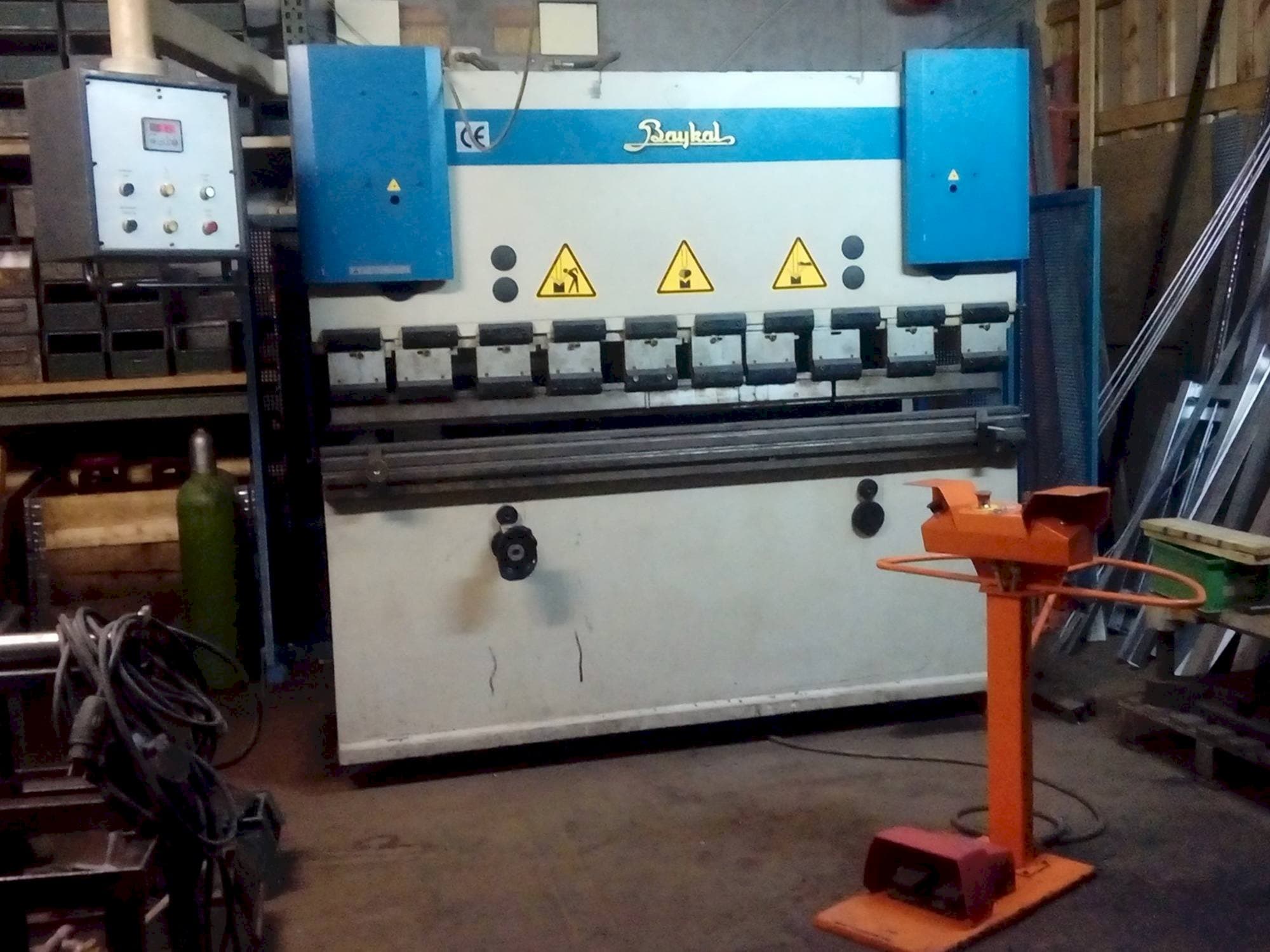

Front view of Baykal APH-2103/40 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Baykal APH-2103/40

Photo Gallery

Baykal - APH-2103/40DE-BEN-BAY-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

This Baykal APH-2103/40 Bending Machine from 2001 was built in Turkey. It has a production record of only 644 working hours. This machine works with a pressing force 400 kN and a bending length 2030 mm. It has been rarely used and works perfectly.

Overview

brand: Baykal
year: 2001
MODEL: APH-2103/40
production hours: 644
application type: Bending
Location: Germany
machine type: Press Brake
availability: Sold

Technical Information - Baykal APH-2103/40

General Data

Measurements width: 1300 mm
Measurements depth: 2500 mm
Measurements height: 1810 mm
Machine weight: 3000 Kg

Main drive

Pressing force: 400 KN
Bending length: 2030 mm
Main motor power: 4 kW
Stroke: 120 -160 MM

Media

Main electronic connection: 380 V 50 Hz 3 Ph

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working pressure 240 bar
- - Weight upper tool 57 kg
- - Weight lower tool 88 kg
Qualitative Machine Benefits:
- - This machine was rarely used
- - The condition is good
- - The machine works perfectly

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
