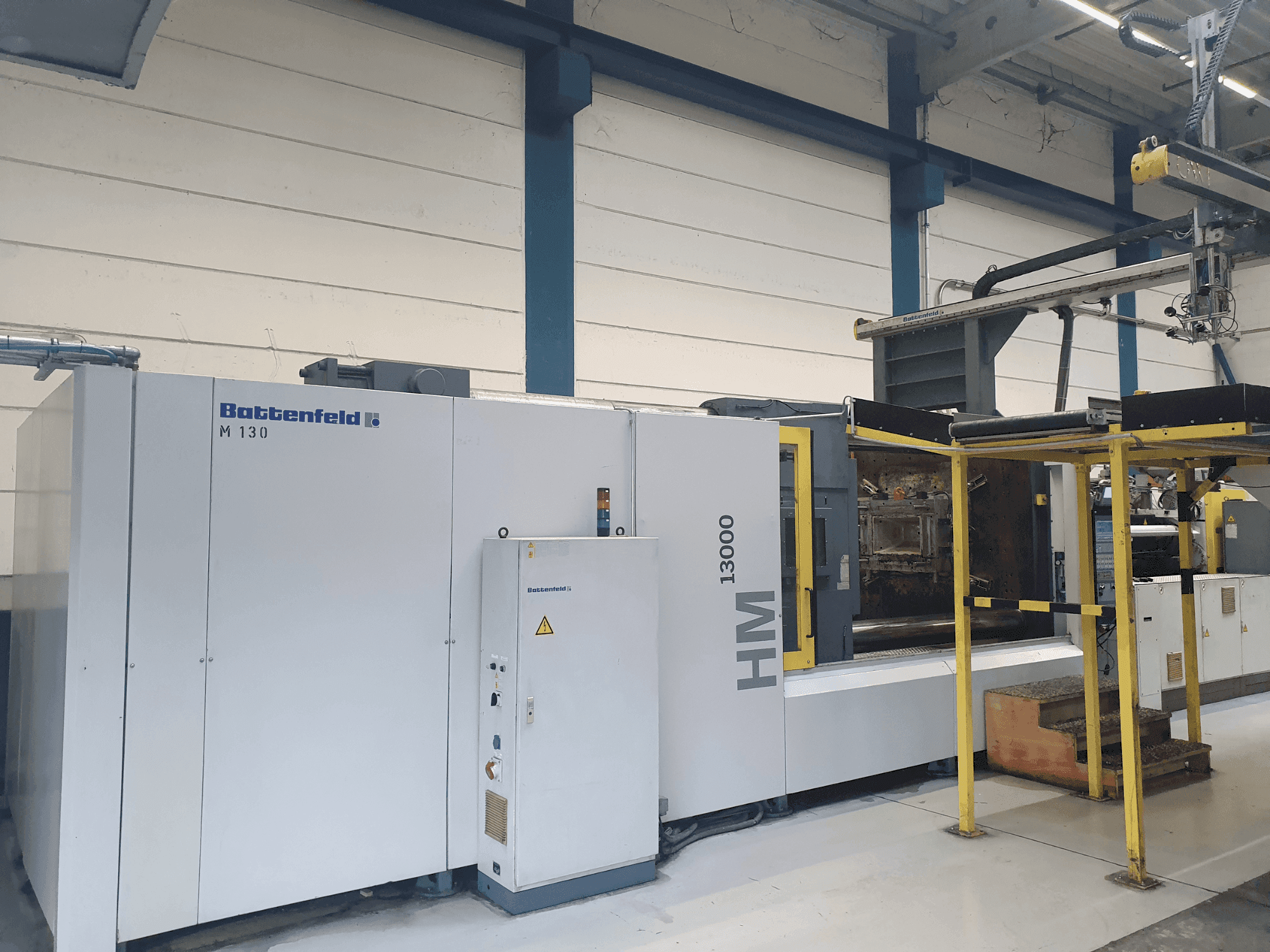

Front view of Battenfeld HM 13000/12000  machine

Battenfeld - HM 13000/12000DE-INJ-BAT-2001-00002

Rs. 5,158,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Battenfeld HM 13000/12000 was manufactured in 2001. A robust injection moulding machine featuring a Unilog 9000C control system, clamping force of 13,000 kN, and a screw diameter of 120 mm. It supports a maximum opening travel of 1650 mm and a total installed power of 257.9 kW. Ideal for large-scale production, the Battenfeld HM 13000/12000 machine we have for sale represents a significant opportunity. Contact us for more information.

Overview

  • brand: Battenfeld
  • year: 2001
  • MODEL: HM 13000/12000
  • production hours: 84131
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Injection Moulding Machine
  • control unit brand: Unilog

Technical Information - Battenfeld HM 13000/12000

Control Unit

  • Brand: Unilog
  • Model: 9000C

Injection Unit

  • Screw diameter: 120 mm
  • Shot weight: 6,175 (PS), 4,816 (PP)
  • Stroke volume: 6782 CMM CM³
  • Injection pressure: 1765 bar

Clamping unit

  • Clamping force: 13,000 kn
  • Opening stroke: 1650 mm
  • Distance between bars: Horizontal - 1600 mm; Vertical - 1200 mm
  • Mould height min: 500 mm
  • Mould height max: 1200 mm
  • Ejector stroke: 600 mm

    Additional equipment

    • - Handling equipment (excluding conveyor belts)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Plate distance mm: 2850
        • - Panel (w x h): 2200 x 1880 mm
        • - Max. Nozzle immersion depth mm: 100
        • - Core pulls piece: 2
        • - Total install. Power : 257. 9 kw
        • - Heating capacity : 80. 9 kw
        • - Motor power (hydr. ): kw 137
        • - Closing side centring ring: 250mm
        • - Centring ring spray side: 250 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
