BARTH - VMPH 3013DE-PRE-BAR-2015-00001

Name: BARTH VMPH 3013
Brand: BARTH
SKU: DE-PRE-BAR-2015-00001
Price: 2250500 INR
Availability: InStock

Rs. 2,250,500

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used BARTH VMPH 3013 For Sale | gindumac.com

Show in original language

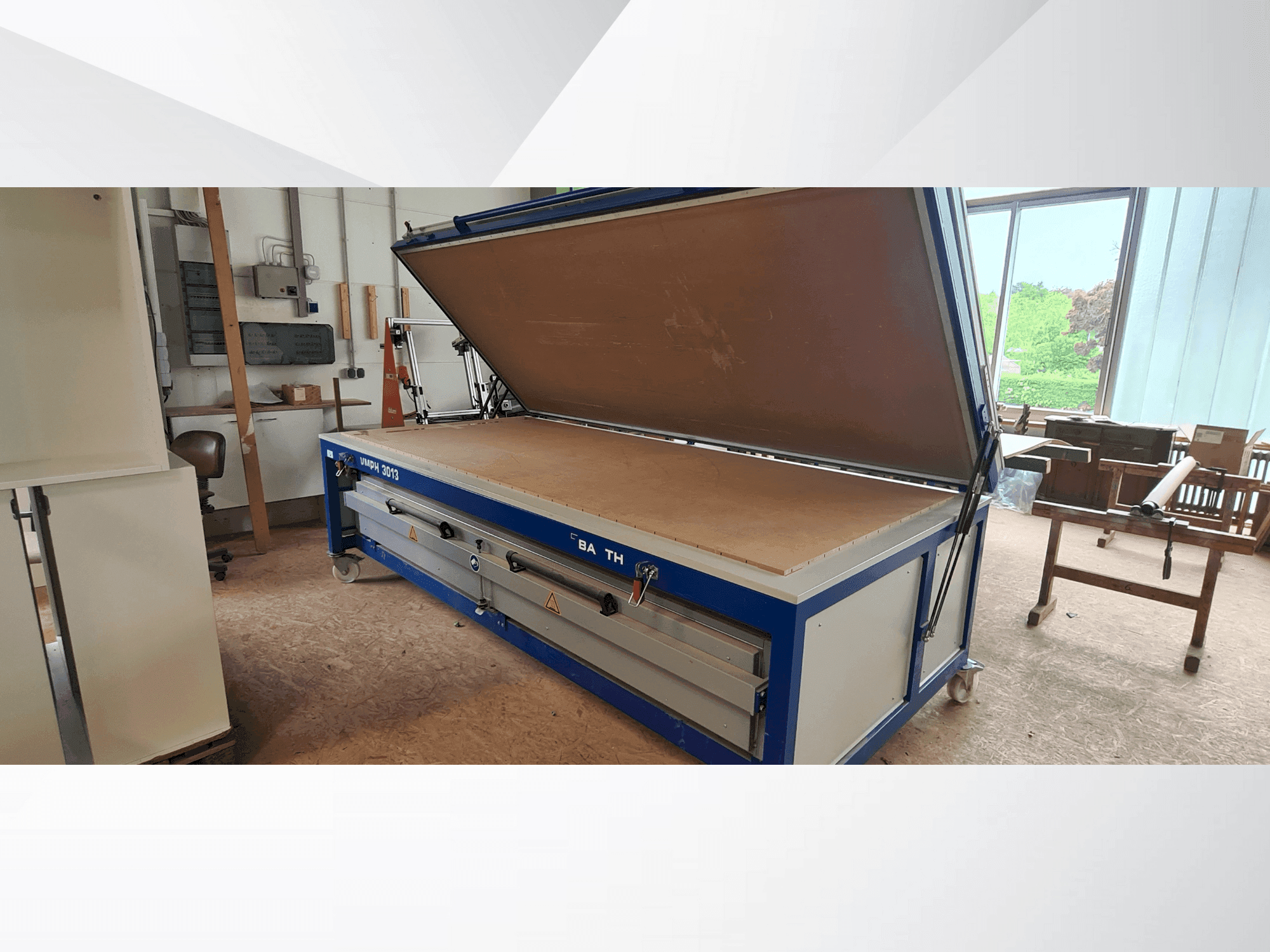

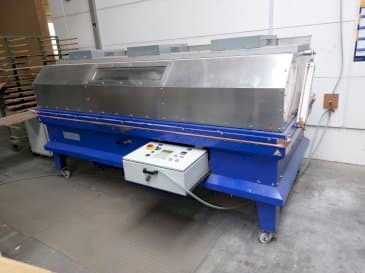

This BARTH VMPH 3013 laminating press was manufactured in 2015. It features dimensions of 3450 x 1800 x 950 mm and a clamping area of 3000 x 1320 mm. The vacuum table supports up to 200 kg with a maximum vacuum pressure of -0.95 bar. It operates on 400 VAC/50 Hz with a connected load of 12 kVA. Consider the opportunity to buy this BARTH VMPH 3013 laminating press. Contact us for more information about this machine.

Overview

brand: BARTH
year: 2015
MODEL: VMPH 3013
application type: Pressing / Laminating
Location: Germany
machine type: Laminating Press

Technical Information - BARTH VMPH 3013

General Data

Measurements width: 1800 MM
Measurements depth: 3450 MM
Measurements height: 950 MM

Table

Table load: 200 kg

Additional Information

Machine Benefits

Qualitative Machine Benefits

Nominal suction capacity (50hz): 25 m³/h
Nominal motor power (50hz): 1. 0 kw
Nominal motor speed (rpm): 1500
Sound pressure level (en iso 2151, 50hz): 60 db(a)
Max. Water vapor tolerance (hpa/mbar): 4
Water vapor capacity (l/h): 0. 9

Technical Machine Benefits

Maximum vacuum pressure (bar): -0. 95
Volume of vacuum storage (m³): 0. 25
Pump capacity of vacuum pump (m³/h): 25
Heating range (°c): 30 - 180
Operating voltage/frequency (vac/hz): 400 / 50
Connected load (kva): 12
Pre-fuse (a): 32
Temperature during operation/storage (°c): +10 to +35 / +5 to +45
Relative humidity (%): 5 to 80 (non-condensing)
Continuous sound pressure level (db(a)): < 70

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
