➤ Used AXILE G6i Machining Center For Sale | gindumac.com

Show in original language

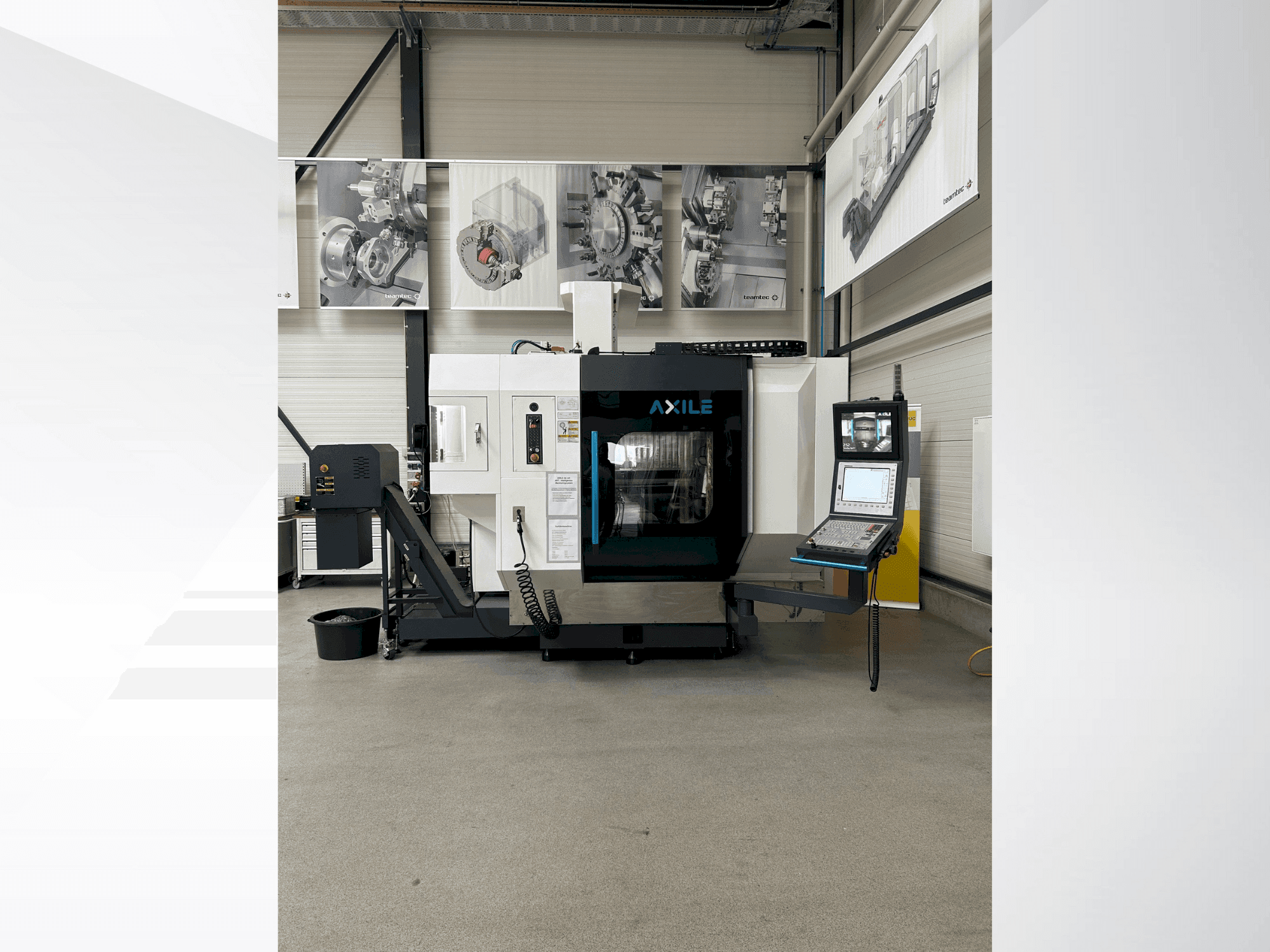

This 5-axis AXILE G6i vertical machining center was manufactured in 2022. Consider the opportunity to buy this AXILE G6i vertical machining center. Contact us for more information.

Overview

brand: AXILE
year: 2022
MODEL: G6i
production hours: 1200
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - AXILE G6i

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 640

Movement

A-axis Max: 120°
C-axis: 360°
Number of Axes: 5
X-axis Travel: 650 mm
Y-axis Travel: 850 mm
Z-axis Travel: 500 mm

Technical Specification

Spindle Power: 25 kW
Spindle Speed: 20000 RPM

Additional Information

Additional equipment

Hinged belt conveyor with coolant tank
Flushing gun
Air through the spindle
The center of the 5 axes

Machine Benefits

Technical Machine Benefits

Roller guides 45 mm
Automatic door for crane loading
Art™ - intelligent monitoring system
Tpc - tool-tip positioning control
Svs - spindle vibration supervision
Aac - axial accuracy control
Dcm dynamic collision monitoring
Tool center point management (tcp)
Working on inclined working plane (twp)
Torque: 87/135 nm

Extra Information

Air-conditioned control cabinet Signal lamp for end of cycle (3 colors) Workpiece Rotary/swivel table: Ø 600 mm with torque motor Payload: 600 kg Table Connections: 3x hydraulic and 1x pneumatic connection integrated Tools Tool Magazine: 80-position with Smart tool Preparation for BLUM laser tool Injection Unit HSK63 motor spindle with 20000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

G6 Layout + foundation drawing.pdf
