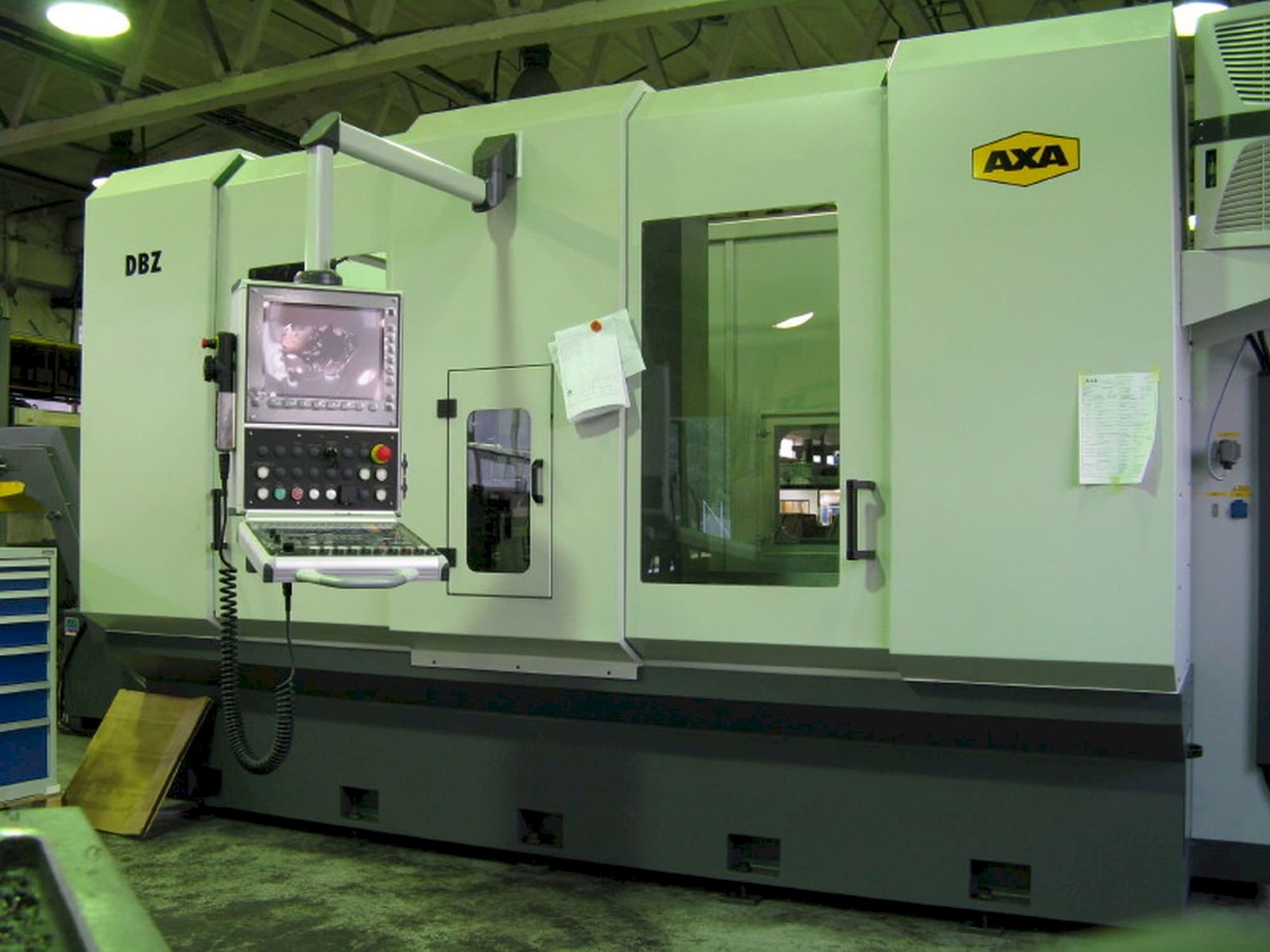

Front view of AXA DBZ  machine

AXA DBZ

AXA - DBZ

2008

Rs. 2,960,400

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This AXA DBZ Vertical Machining center was manufactured in the year 2008 in Germany and has 58513 production hours, of which 23672 are spindle hours. It is equipped with a HEIDENHAIN ITNC530 control unit and has 4 axis. The machine has a spindle speed of 6000 rpm, is in good condition and well maintained.

Overview

  • brand: AXA
  • year: 2008
  • MODEL: DBZ
  • production hours: 58513
  • application type: Milling
  • Location: Czech Republic
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HEIDENHAIN
  • GINDUMAC ID: CZ-MIL-AXA-2008-00001

Technical Information

General Data

  • Measurements width: 2250 mm
  • Measurements depth: 4460 mm
  • Measurements height: 3550 mm
  • Machine weight: 12000 kg

Control Unit

  • Brand: HEIDENHAIN
  • Model: iTNC530

Main drive

  • Number of spindles: 1
  • Spindle speed range: 6000 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 2 x 750 mm
  • Y-AXIS Movement: 500 mm
  • Z-AXIS Movement: 600 mm

Table

  • Outer length: 1000 mm
  • Outer width: 500 mm

Tools

  • Slots in storage: 22
  • Max weight: 8 kg
  • Max tool diameter: 85/180 mm
  • Max tool length: 400 mm

Media

  • Power consumption: 69 kVa

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance table - spindle nose 180 - 780 mm
      • - Rapid feedrate x/y/z: 25/25/20 m/min
      • - Spindle motor power 40% ed: 40 kw, torque 40% bd: 191 nm
      • - Through spindle coolant, high pressure 20 bar
      • - External additional 400l tank with paper belt filter device
      • - 4th axis preparation
      • - 2pcs wash guns, electronic handwheel control, exhaust collector, air conditioning of the switchboard and spindle
    • Qualitative Machine Benefits:
      • - Good condition, regularly maintained.
      • - 2015 - spindle retrofitted
      • - 2023 - new tool changer motor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
