Avia FNX30NC

Photo Gallery

Avia - FNX30NCDE-MIL-AVI-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Avia FNX30NC For Sale | gindumac.com

Show in original language

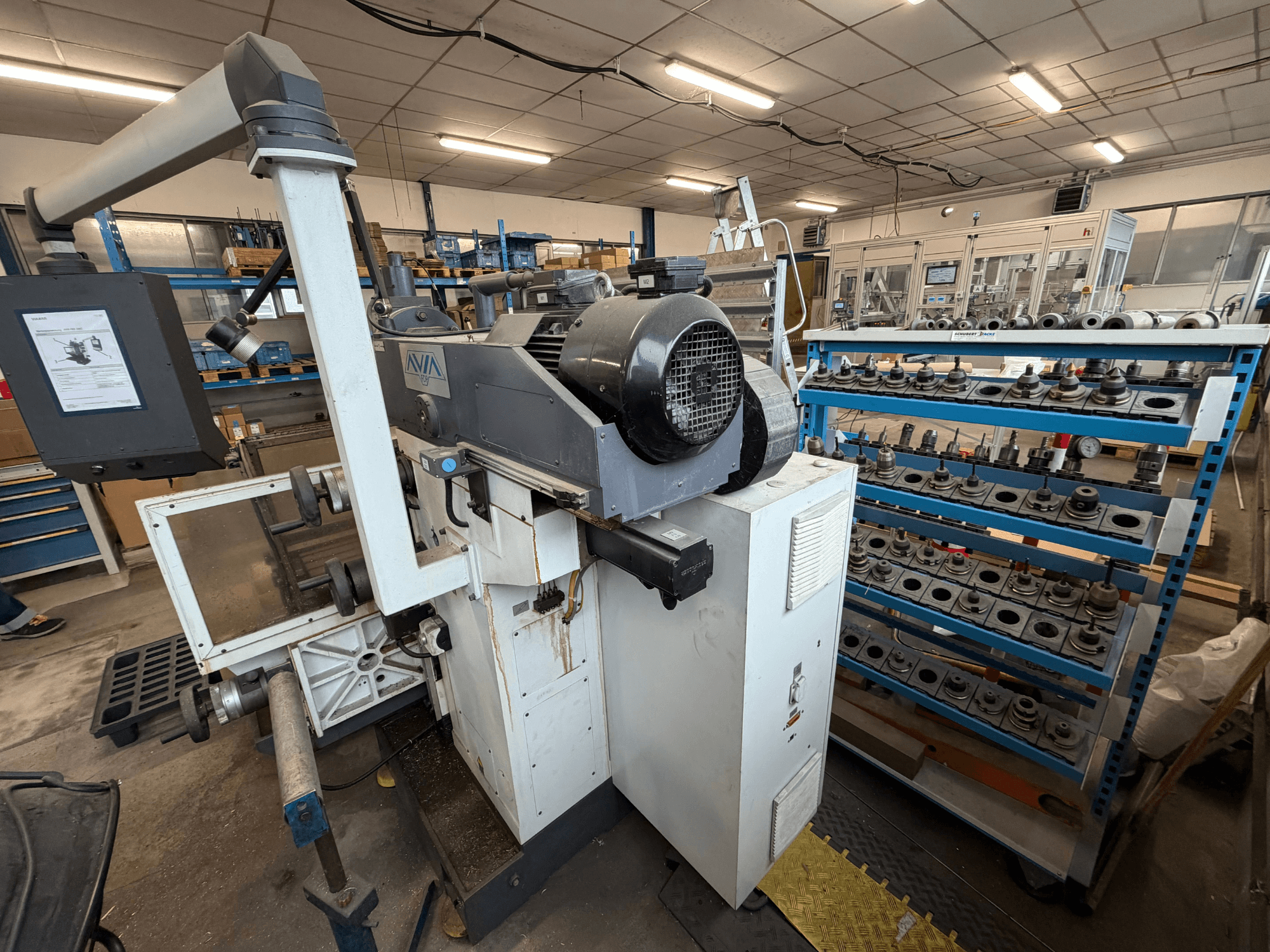

This 3-axis Avia FNX30NC was manufactured in 2012. It features a maximum spindle speed of 3000 rpm and can accommodate tools with a maximum diameter of 125 mm and weight of 7 kg. The machine includes a substantial set of tooling stored on a blue multi-tier tool rack, a machine vice, and a protective workspace enclosure. If you are looking to get high-quality machining capabilities, consider the Avia FNX30NC universal machining centre we have for sale. Contact us for further details.

Overview

brand: Avia
year: 2012
MODEL: FNX30NC
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Avia FNX30NC

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 320

Dimensions

Machine Height: 1950 mm
Machine Length: 2700 mm
Machine Weight: 1700 kg
Machine Width: 2250 mm
Table Load: 200 kg

Movement

Number of Axes: 3
X-axis Travel: 400 mm
Y-axis Travel: 315 mm
Z-axis Travel: 350 mm

Technical Specification

Spindle Power: 5.5 kW
Spindle Speed: 3000 RPM
Taper Size: SK 40

Additional Information

- Total Power: 9.0 kW

- Supply Voltage: 3x 400 V AC

- Control Voltage: 24 V DC

- Voltage for Machine Lamps: 24 V DC

- Frequency: 50 Hz

- Rated Current: 20 A

- Fixed Angle Table Clamping Area: 315 x 710 mm

- Fixed Angle Table T-Slots: 5 / 14 x 63 mm

- Fixed Angle Table Weight: 95 kg

- Fixed Angle Table Max Load: 200 kg

- Vertical Console Table Clamping Area: 235 x 350 mm

- Vertical Console Table T-Slots: 2 / 14 x (63/63) mm

- Tool Holder Taper: DIN 2080-40 (ISO 40)

- Spindle Speed Range: 50 - 3000 rpm (infinitely variable)

- Quill Sleeve Bore Diameter: Ø56H7 mm

- Vertical Head Manual Quill Travel: 80 mm

- Vertical Head Swivel Angle: ±45°

- Vertical Head Weight: 85 kg

- Feed Rate X, Y: up to 5000 mm/min (infinitely variable)

- Feed Rate Z: up to 2500 mm/min (infinitely variable)

- Rapid Traverse X, Y: 6000 mm/min

- Rapid Traverse Z: 3000 mm/min

- Axis Motor Torque X, Y: 4.5 Nm

- Axis Motor Torque Z: 6.2 Nm

- Coolant Pump Motor: 0.2 kW

- Enclosed Accessories / Equipment: Includes a substantial set of tooling stored on a blue multi-tier tool rack, machine vice, chip and splash enclosure, coolant system, and operating manual.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
