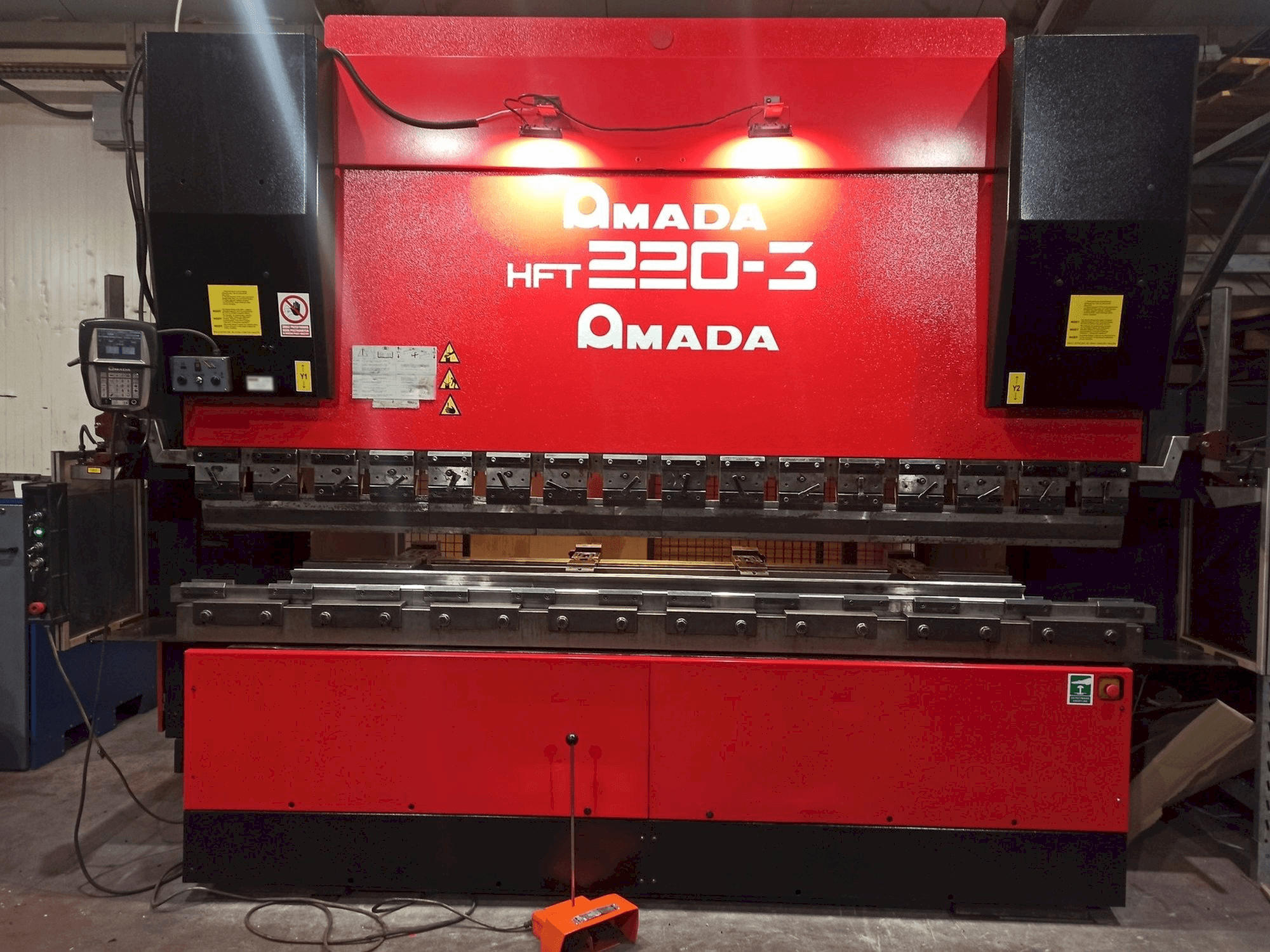

Front view of AMADA HFT 220-3  machine

AMADA HFT 220-3

AMADA - HFT 220-3

2003

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

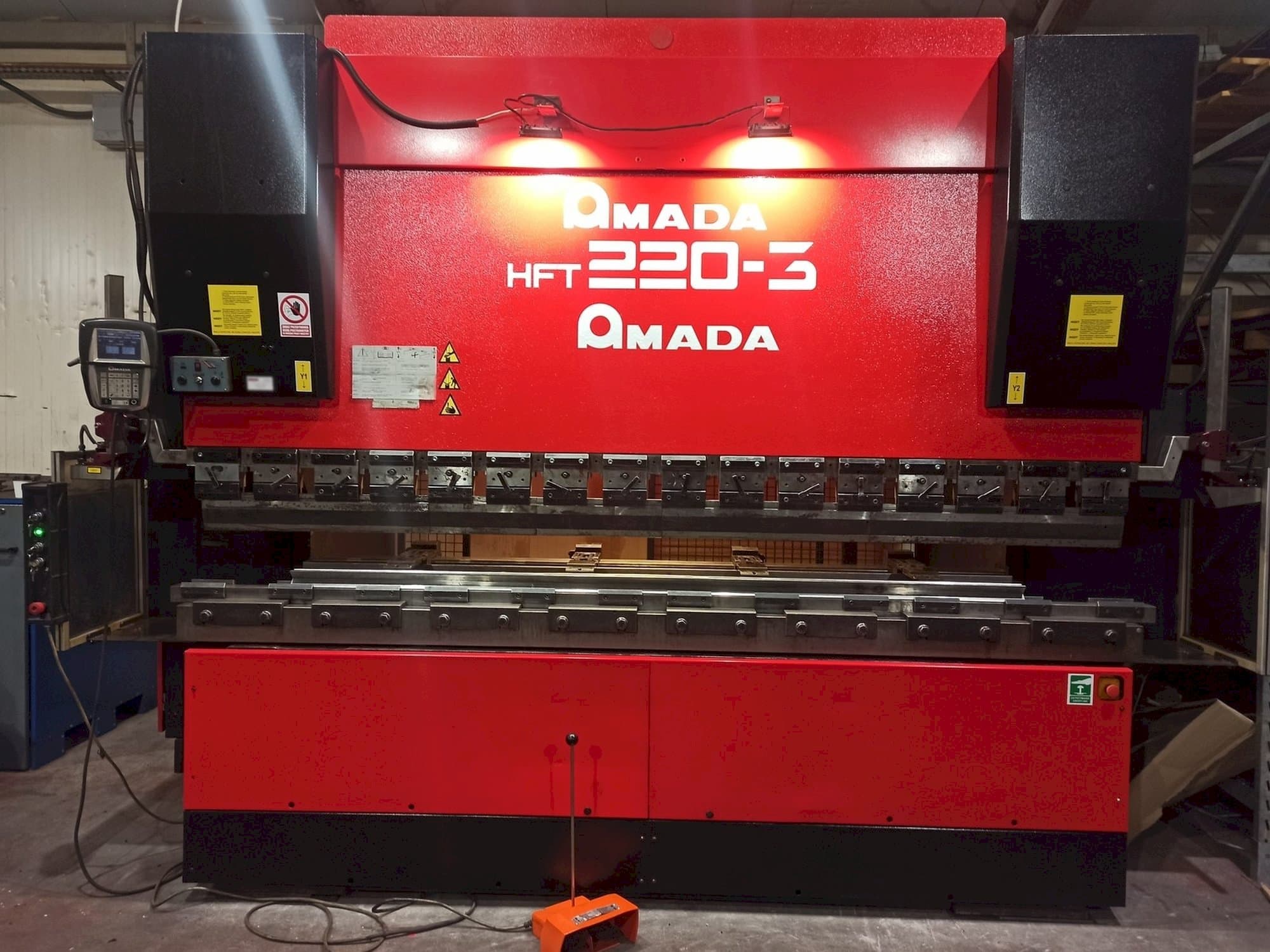

This AMADA HFT 220-3 bending machine was made in the year 2003 in France. It is equipped with an Amada CD 2000 control unit. The machine has a pressing force of 2200 kN, a bending length of 3100 mm, and is in very good working condition, the machine is fully serviced.

Overview

  • brand: AMADA
  • year: 2003
  • MODEL: HFT 220-3
  • application type: Bending
  • Location: Poland
  • machine type: Bending machines
  • availability: Sold
  • control unit brand: Amada
  • GINDUMAC ID: PL-BEN-AMA-2003-00003

Technical Information

General Data

  • Measurements width: 4050 mm
  • Measurements depth: 2170 mm
  • Measurements height: 3050 mm
  • Machine weight: 13750 kg

Control Unit

  • Brand: Amada
  • Model: CD 2000

Main drive

  • Pressing force: 2200 kn
  • Bending length: 3100 mm

Media

  • Main electronic connection: 400V / 50Hz

    Additional equipment

    • - 4 movable back gauge fingers
    • - Lighting of the working area
    • - Safety system Laser Safe
    • - Front supports
    • - Set of tooling

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Cnc controlled axis: y1, y2, x, r
        • - Max stroke: 200 mm
        • - Distance between columns: 2700 mm
      • Qualitative Machine Benefits:
        • - Machine is in very good working condition and is ready for tests
        • - The machine is fully serviced

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
