AMADA - HFT 170-3PL-BEN-AMA-2005-00003

Name: AMADA HFT 170-3
Brand: AMADA
SKU: PL-BEN-AMA-2005-00003
Price: 3070950 INR
Availability: InStock

Rs. 3,070,950

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used AMADA HFT 170-3 - Press For Sale | gindumac.com

Show in original language

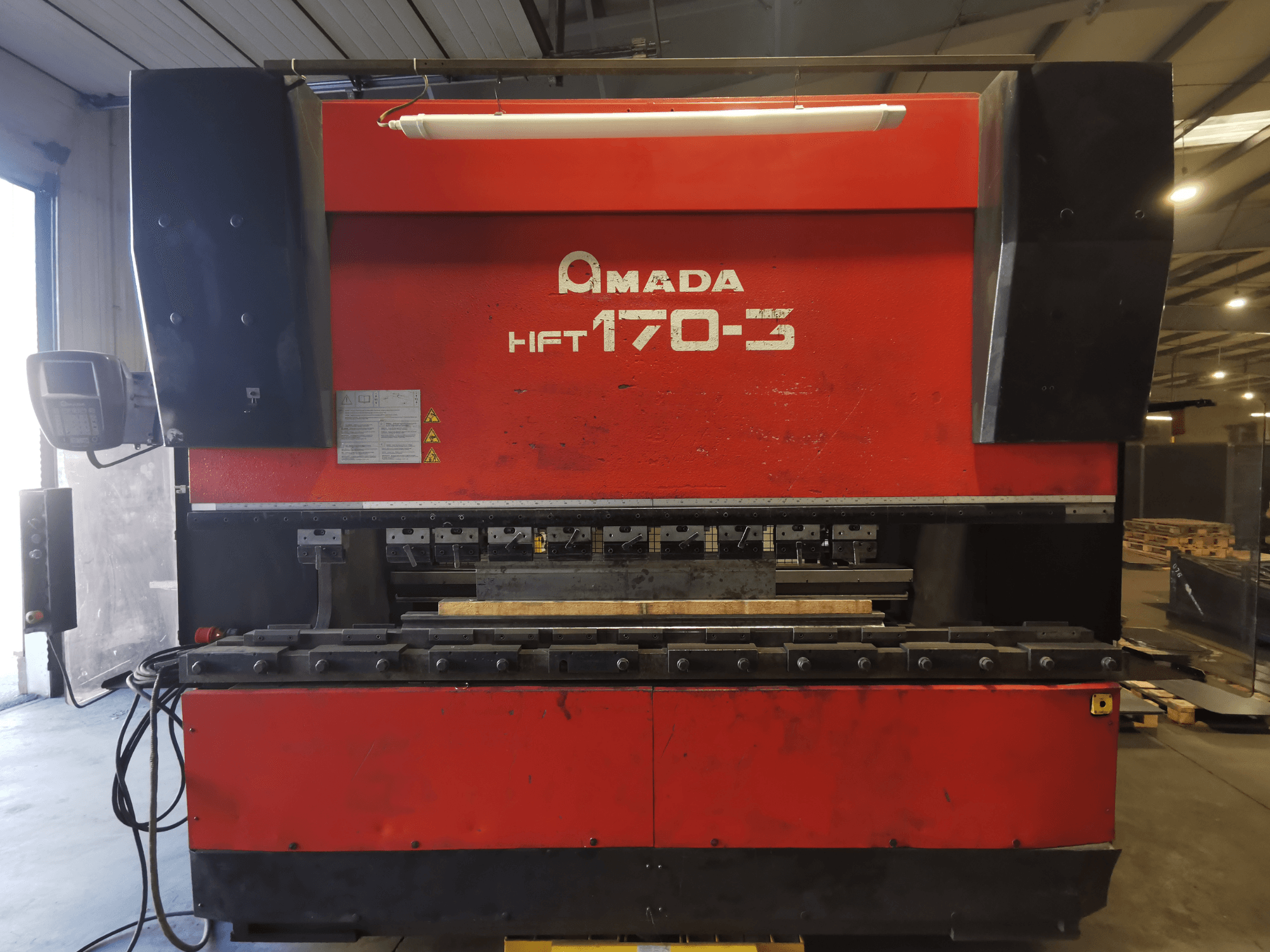

This 4-axis AMADA HFT 170-3 press brake was manufactured in 2005. It features a pressing force of 170 tons, a bending length of 3100 mm, and is equipped with AMADA CD 2005 CNC control. Despite a non-functional hydraulic pump, its main motor power is approximately 16.5 kW. Consider the opportunity to buy this AMADA HFT 170-3 press brake. Contact us for more information about this machine.

Overview

brand: AMADA
year: 2005
MODEL: HFT 170-3
application type: Bending
Location: Poland
machine type: Press Brake
control unit brand: AMADA

Technical Information - AMADA HFT 170-3

General Data

Measurements width: 2020 mm
Measurements depth: 4025 mm
Measurements height: 2900 mm
Machine weight: 11800 kg

Control Unit

Brand: AMADA
Model: CD 2005

Main drive

Spindle motor power: 16.5 kW

Additional Information

Additional information

Axes: 4
Pressing Force: 17000 kN
Bending Length: 3100 mm
Distance Between Columns: approx. 2650 mm
Maximum Beam Stroke: 200 mm
CNC Control: AMADA CD 2005
Number of CNC Axes: 4 (Y1, Y2, X, R)
Note: The press powers on and the hydraulic pump motor runs, but the hydraulic pump itself cannot start because the input/output card does not transmit the signal to the computer confirming that all safety procedures are met. No repair attempts have been made. Sale as is.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
