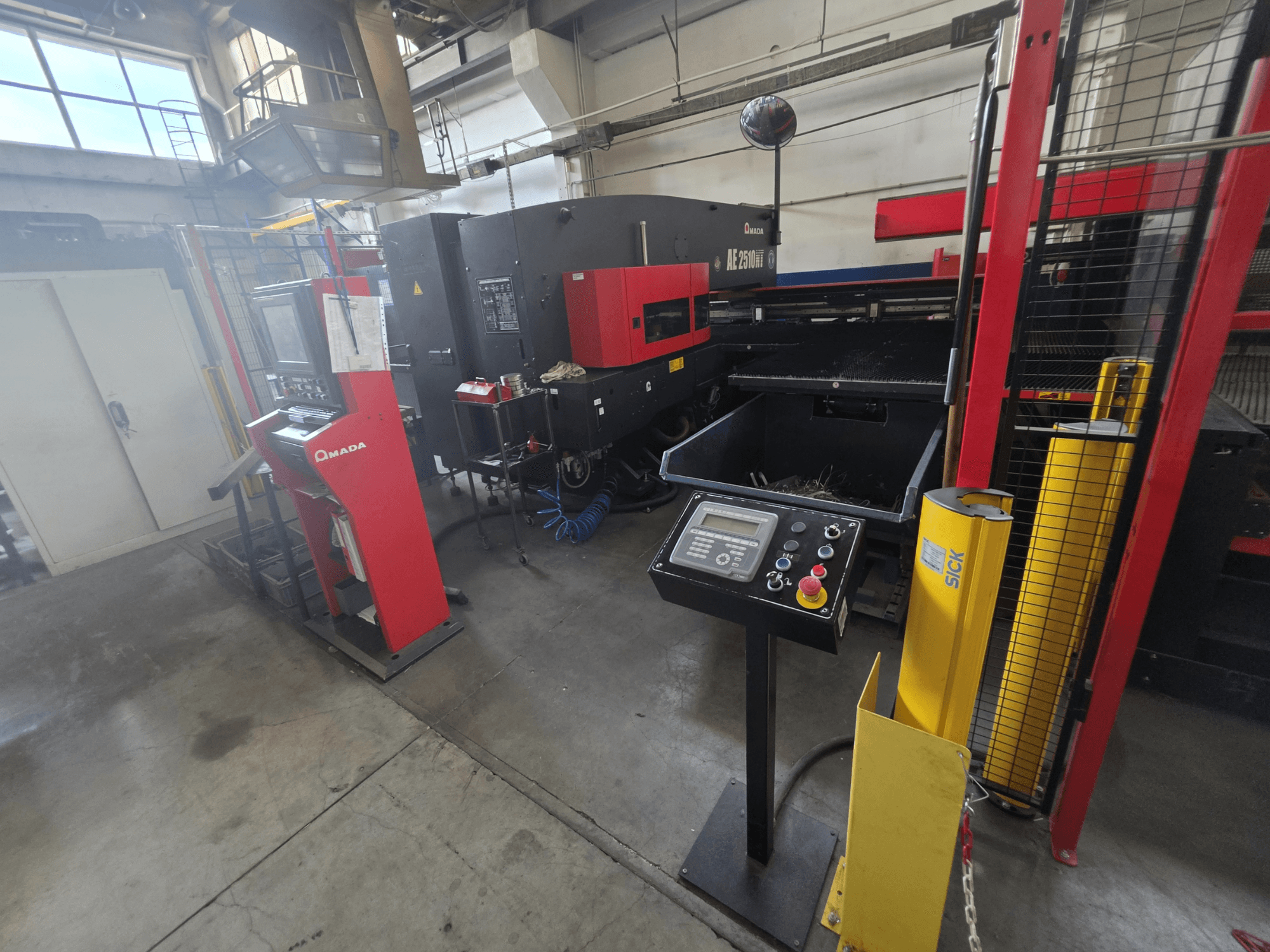

AMADA - AE-2510NTPL-PUN-AMA-2016-00001

• Status: Connected under power, fully operational, regularly maintained; can be inspected under power

• Documentation: Complete machine documentation available

• Tools: Tools visible in photos included (see Additional equipment)

• Working area (X x Y): 2500 x 1270 mm

• CNC axes: X, Y + Auto Index turret stations

• Turret capacity: 51 stations

• Positioning accuracy: ±0.10 mm

• Max feed rate: X 80 m/min; Y 60 m/min

• Max punching speed: up to 370 hits/min

• Marking speed: up to 900 hits/min

• Table: Brush table

• Slug removal: Power vacuum slug removal system

• Capabilities: Forming, embossing, marking

• Electrical: 19 kVA; 3 x 200 V, 50 Hz

• Noise level during punching: 95.9 dB(A)

• Condition: Very good

Additional equipment

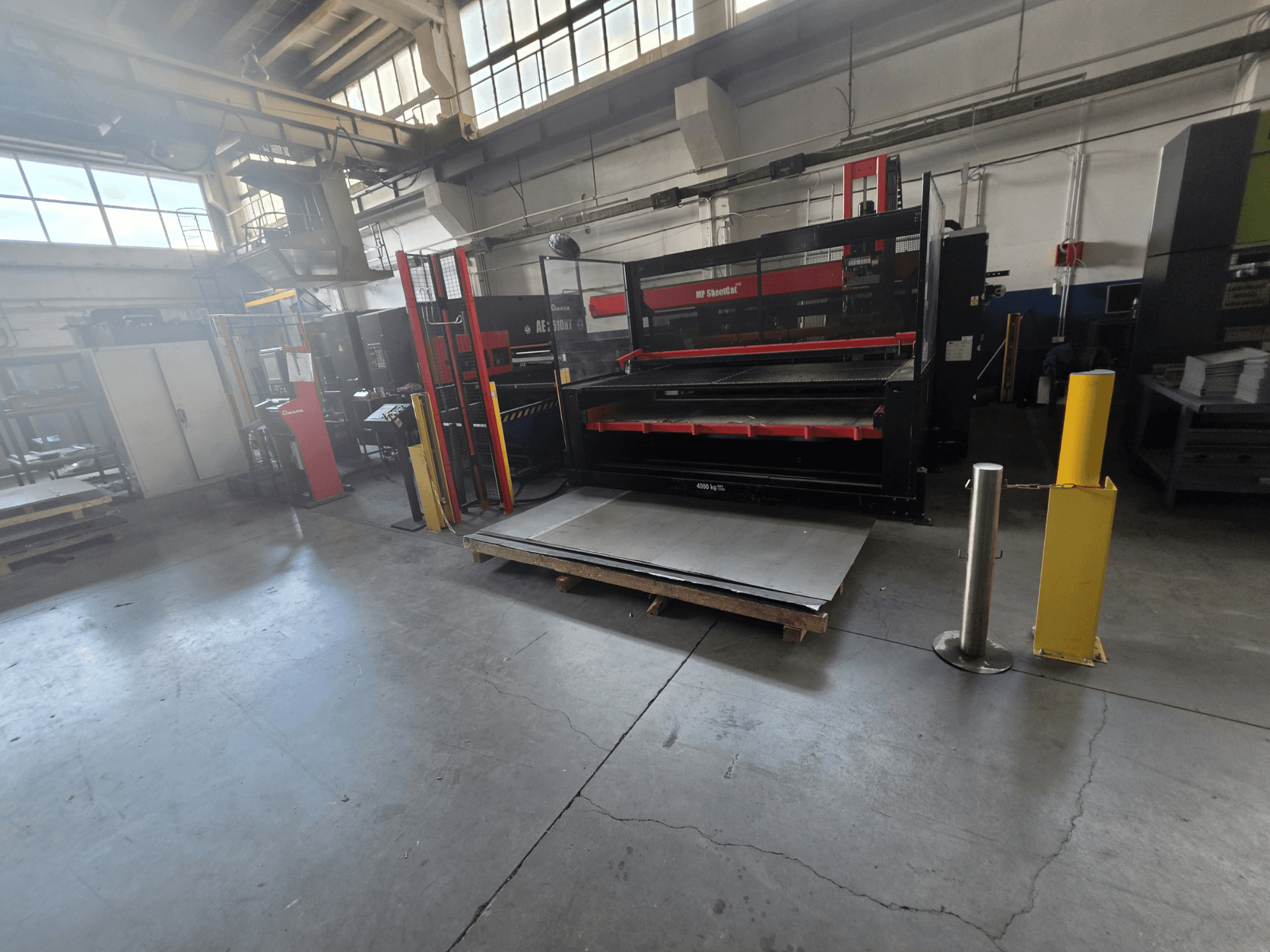

• Automatic loading/unloading system: LKI Kaldman MP-2512 SheetCat (2015)

  • Function: Automatic sheet loader and unloader with loading and unloading pallets

  • Max sheet size: 2500 x 1250 mm

  • Power consumption: 4.5 kW; Electrical: 3 x 400 V, 50 Hz

  • Air consumption: 650 l/min at 6 bar

  • Dimensions (SheetCat): 5,100 x 3,580 x approx. 3,100 mm

  • Weight (SheetCat): 3,630 kg

• Transformer

• Tooling: Tool set as visible in photos

• Documentation set

• Overall line footprint (press + SheetCat): 10,850 x 6,900 x 3,190 mm; pass line height 1,040 mm
