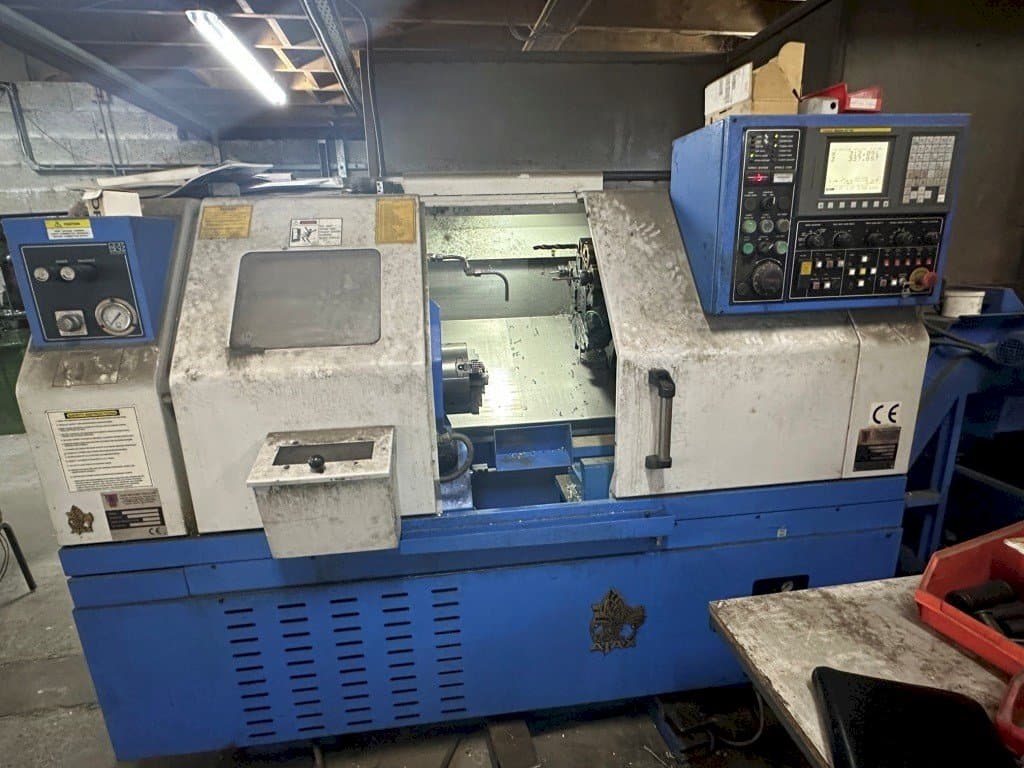

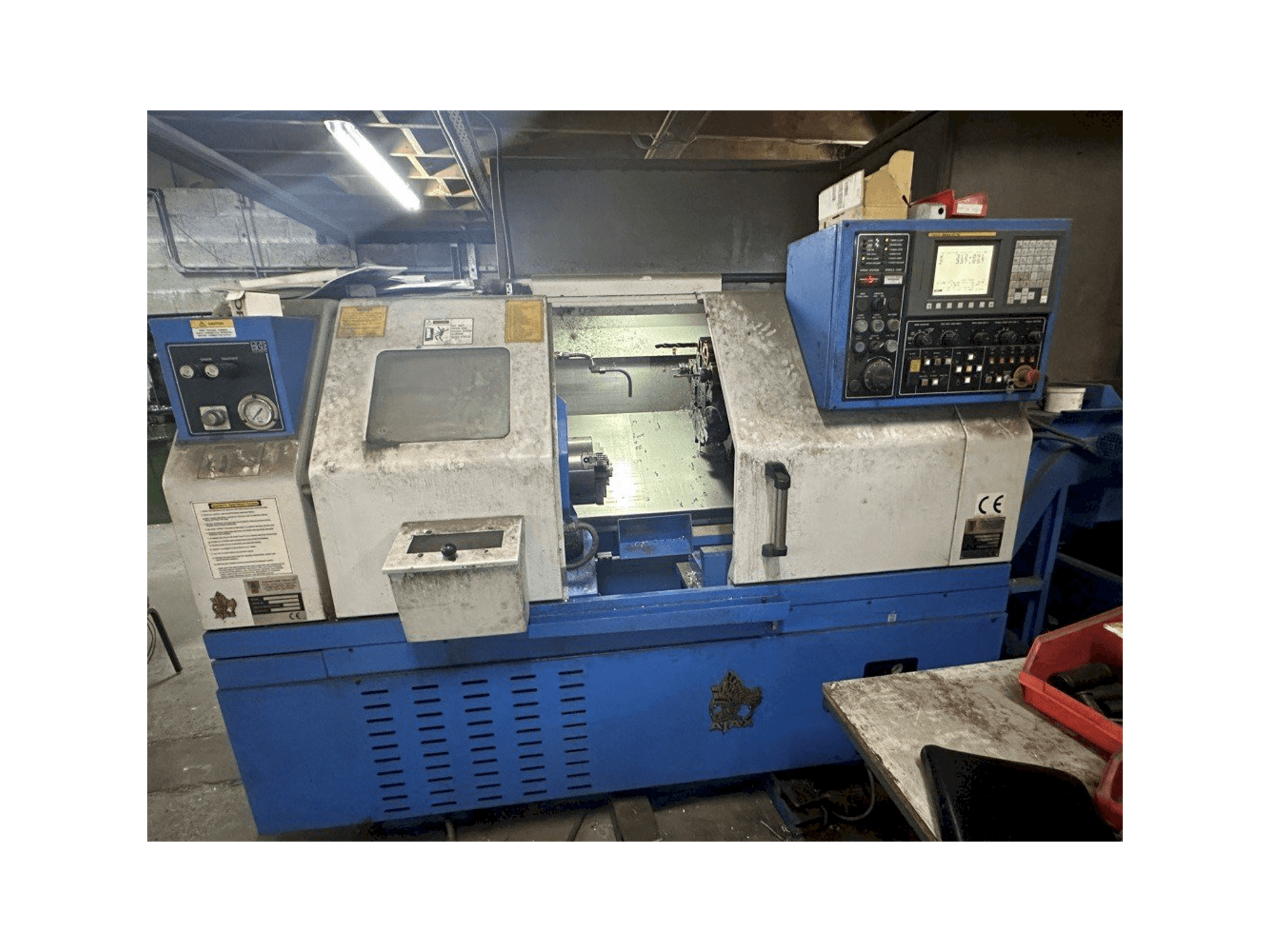

Front view of AJAX AJSB 200-63  machine

AJAX - AJSB 200-63IE-TUR-AJA-2008-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This AJAX AJSB 200-63 Lathe was made in the year 2008 in the United Kingdom. It is equipped with a Fanuc Series Oi-TC control unit and has 2 axis. The machine has a spindle speed of 5000 rpm.

Overview

  • brand: AJAX
  • year: 2008
  • MODEL: AJSB 200-63
  • application type: Turning
  • Location: Ireland
  • machine type: Horizontal Turning Machine
  • availability: Sold
  • control unit brand: Fanuc

Technical Information - AJAX AJSB 200-63

General Data

  • Measurements width: 2450 mm
  • Measurements depth: 1940 mm
  • Measurements height: 1740 mm
  • Machine weight: 3600 kg

Control Unit

  • Brand: Fanuc
  • Model: Series oi-TC
  • CNC main language: English
  • CNC language customizable: Yes

Main drive

  • Number of spindles: 1
  • Spindle speed range: 5000 1/MIN
  • Number of axis: 2

Movement

  • Z-AXIS Movement: 500 mm

Workpiece

  • Workpiece drm: 350 mm
  • Workpiece z: 500 mm

Turret

  • Number of turrets: 1

Tools

  • Slots in storage: 12

Media

  • Main electronic connection: 400 V

    Additional equipment

    • - Swarf Conveyor
    • - Parts Catcher
    • - 3 Jaw Hydraulic Chuck
    • - Tailstock
    • - Selection of Tool Holders

    Additional Information

      Machine history

      • Material type: Plastic/steel
      • End product: Brackets
      • Industries: Domestic stairs

      Machine Benefits

      • Technical Machine Benefits:
        • - 2 axis cnc lathe
      • Qualitative Machine Benefits:
        • - Only used for light work

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
