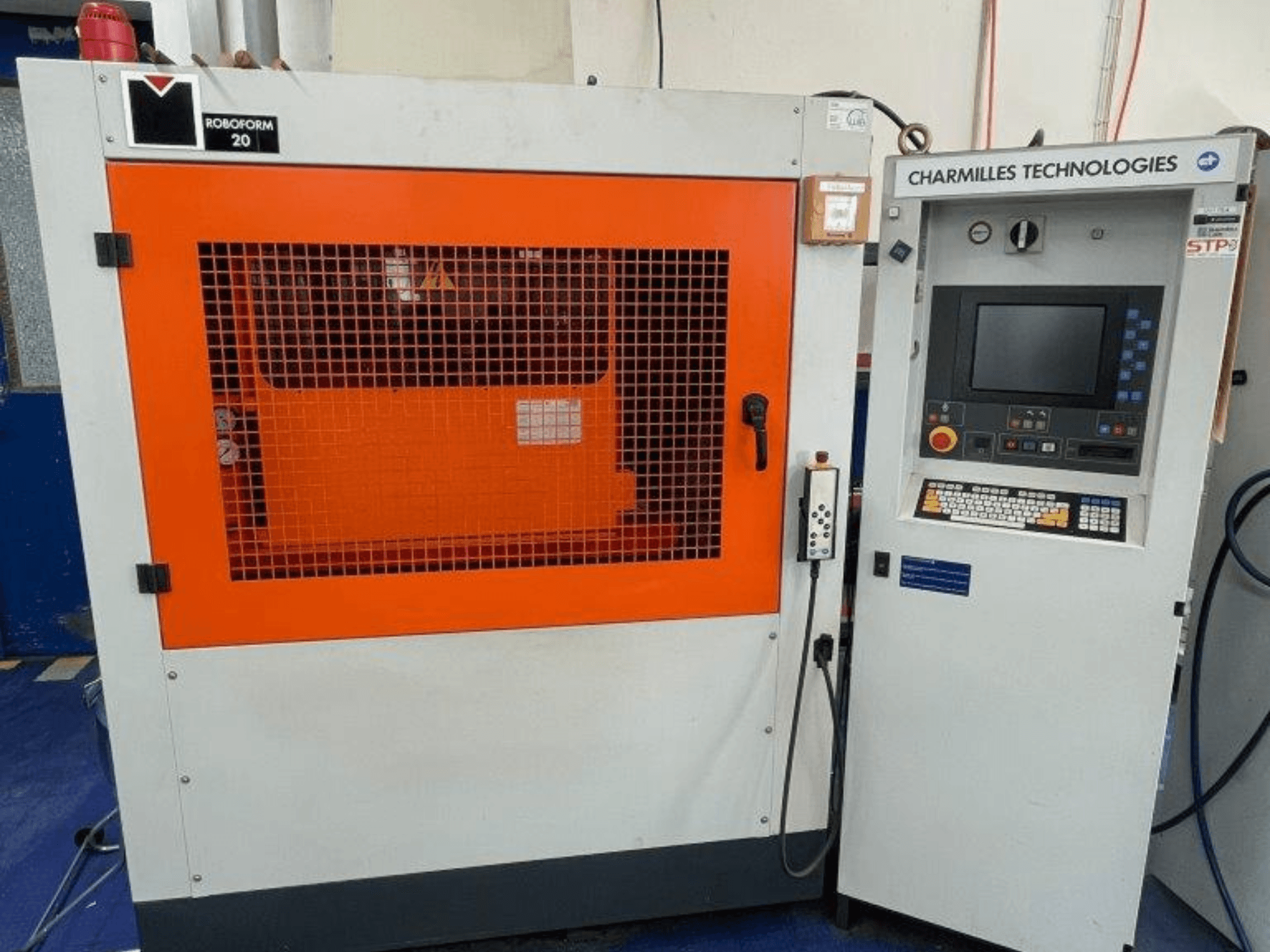

AgieCharmilles Robofrom 20 die-sinking EDM machine, front view with control panel and orange protective grille.
AgieCharmilles Robofrom 20 die-sinking EDM machine, front view with control panel and orange protective grille.

AgieCharmilles - Robofrom 20DE-EDM-AGI-1996-00001

Rs. 955,882
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis AgieCharmilles Robofrom 20 die-sinking EDM machine was manufactured in 1996. It features a maximum electrode weight of 25 kg and a table size of 397 x 300 mm. The machine has an impressive axis travel of X=300 mm, Y=250 mm, and Z=250 mm. If you are looking to get high-quality die-sinking capabilities, consider the AgieCharmilles Robofrom 20 machine we have for sale. Contact us for further details.

Overview

  • brand: AgieCharmilles
  • year: 1996
  • MODEL: Robofrom 20
  • production hours: 19166
  • application type: EDM
  • Location: Germany
  • machine type: Die-Sinking EDM Machine

Technical Information - AgieCharmilles Robofrom 20

Dimensions

  • Machine Height: 2320 mm
  • Machine Weight: 1030 kg
  • Machine Width: 1250 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 300 mm
  • Y-axis Travel: 250 mm
  • Z-axis Travel: 250 mm

Additional Information

  • Machine bed material: Gray cast iron (Grauguss)

  • Max distance table to spindle:

    • 455 mm (standard)

    • 405 mm (Erowa ITS)

    • 387 mm (System 3R / Hirschmann)

    • 392 mm (Mecatool)

  • Max electrode weight: 25 kg (without changer)

  • Table size (W x D): 397 x 300 mm

  • Max workpiece weight: 200 kg

  • T-slots: 3 slots, 12 mm width, 100 mm spacing

  • Measurement resolution: 1 micrometer

  • Work tank useful dimensions (H x W x D): 345 x 740 x 520 mm

  • Dielectric tank dimensions (H x W x D): 530 x 975 x 750 mm

  • Dielectric capacity: 200 liters (approx. 180 kg)

  • Filtration system: 3 paper filter inserts

  • Max machining current: 32 A (optional 64 A)

  • Input voltage: 3-phase 380/400/420 V, 50 Hz

  • Installed power: 3 kVA (5 kVA with 64 A option)

  • Compressed air: 6–8 bar

  • Cooling water flow: 6 liters/minute

  • Visual hours: 19,166

Additional equipment

  • Sine table (not included; available for sale separately)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
