AgieCharmilles - Form E 600PL-EDM-AGI-2019-00001

Name: AgieCharmilles Form E 600
Brand: AgieCharmilles
SKU: PL-EDM-AGI-2019-00001
Price: 4624097 INR
Availability: InStock

Rs. 4,624,097

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used AgieCharmilles Form E 600 For Sale | gindumac.com

Show in original language

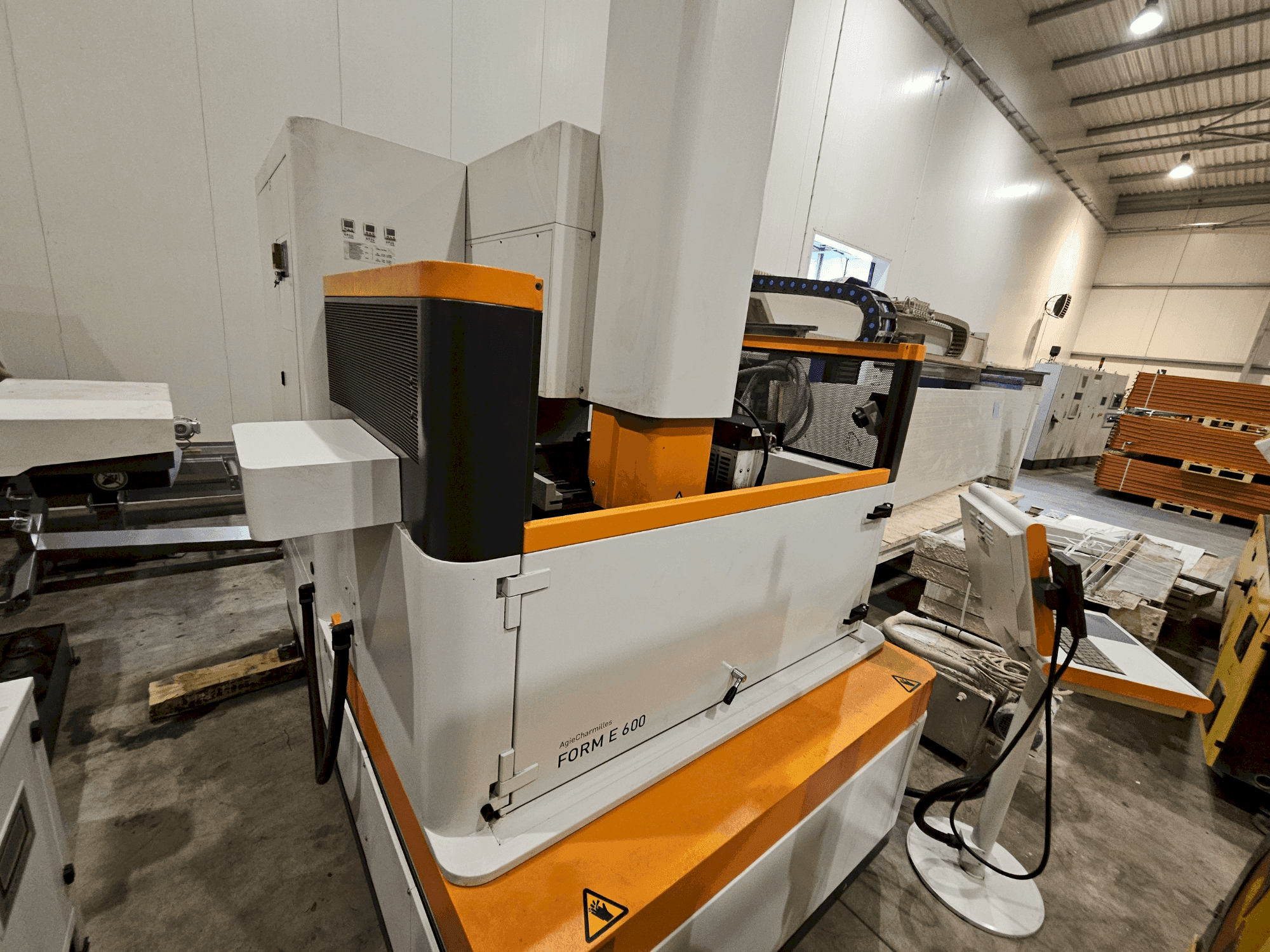

This 4-axis AgieCharmilles Form E 600 die-sinking EDM machine was manufactured in 2019. It offers precision and efficiency for complex mold manufacturing. Consider the opportunity to buy this AgieCharmilles Form E 600 die-sinking EDM machine. Contact us for more information.

Overview

brand: AgieCharmilles
year: 2019
MODEL: Form E 600
application type: EDM
Location: Poland
machine type: Die-Sinking EDM Machine

Technical Information - AgieCharmilles Form E 600

Dimensions

Machine Depth: 2700 mm
Machine Height: 2858 mm
Machine Weight: 4400 kg

Movement

Number of Axes: 4
X-axis Travel: 600 mm
Y-axis Travel: 400 mm
Z-axis Travel: 400 mm

Additional Information

Additional equipment

Linear tool changer (LTC): 6 positions

Machine Benefits

Technical Machine Benefits

Operating system: windows input devices: 17" lcd monitor, mouse or touchscreen, keyboard, and remote control
Axis speed (x, y): 4 m/min z-axis speed: 4 m/min
Position readout accuracy (x, y, z): 0. 1 µm
Max. Electrode weight: 50 kg
Max. Workpiece size: 1000 × 700 × 400 mm
Work tank dimensions (w × d × h): 1200 × 800 × 500 mm
Table size: 800 × 600 mm
Distance from floor to table surface: 900 mm
Min. /max. Distance from table to chuck: 150 / 450 mm
Power supply: standard voltage 3 × 380 v / 400 v ±10%, 50/60 hz

Extra Information

C-axis (standard) Max. electrode weight: 25 kg Rotational speed: 0–100 rpm Dielectric Tank capacity: 750 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
